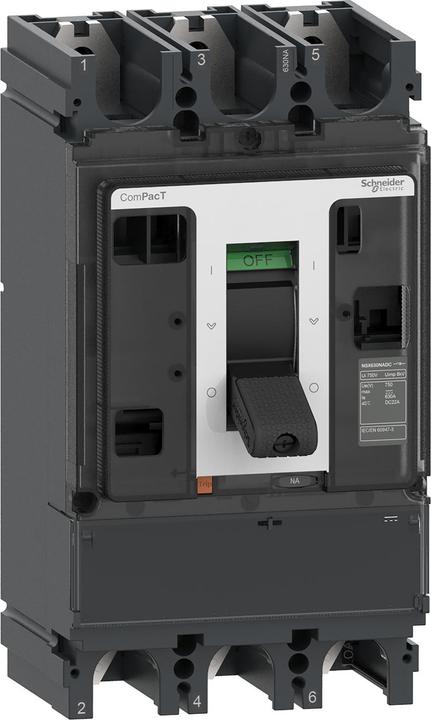

Schneider Electric switch-disconnector ComPacT C633630DS Manufacturer :Schneider Electric Designation :switch-disconnector ComPacT NSX630NA, DC, 630 A Type :C633630DS Version as main switch :yes Version as maintenance/repair switch :yes Version as safety switch :no Version as emergency stop device :no Version as reversing switch :no No. of switches :1 Max. Rated operational voltage Ue at AC :750 V Rated operational voltage :750 V Rated continuous current Iu :630 A Rated continuous current at AC-23, 400 V :630 A Rated continuous current at AC-21, 400 V :630 A Rated short-time withstand current Icw :7.5 kA Number of poles :3 Number of auxiliary contacts as changeover contacts :5 Motor drive optional :yes Motor drive integrated :no Voltage release optional :yes Type of device :Built-in device Fixed installation technology Suitable for floor mounting :yes Suitable for front mounting 4-hole :yes Suitable for front mounting central :no Suitable for distributor installation :yes Suitable for intermediate installation :no Colour of actuating element :black Design of actuating element :Toggle Lockable :yes Connection type main circuit :Screw connection Protection class (IP), front :IP20 Schneider Electric switch disconnector ComPacT C633630DS: more details ComPacT NSX630NA DC is a complete disconnector with 4 poles. It is used to control and isolate power distribution circuits. For this purpose, an upstream protection is required. The operating current is 630 A at 750 VDC for utilization categories DC-22 A. The operating voltage is 750 VDC. It is equipped with a number of optional functions and accessories that are shared with the ComPacT NSX circuit-breakers. The dimensions are 185 mm x 255 mm x 110 mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications. , EAN: 3606482003521.
