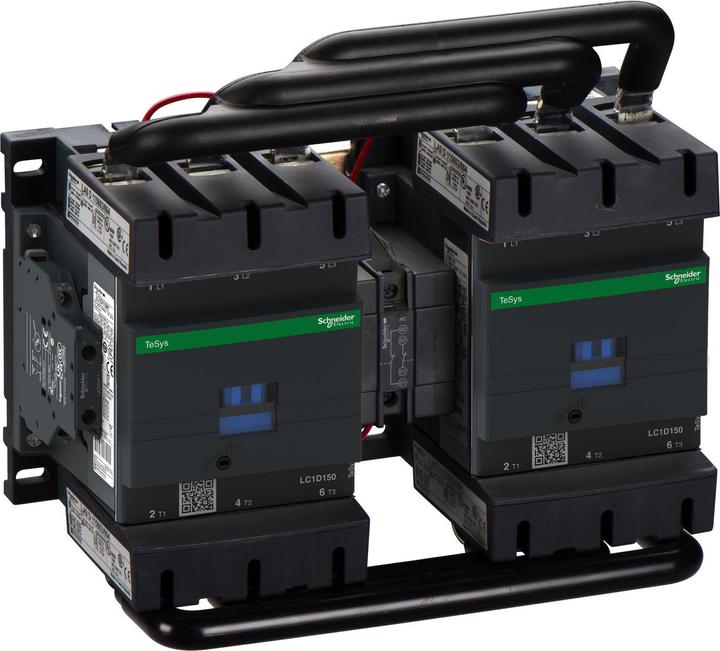

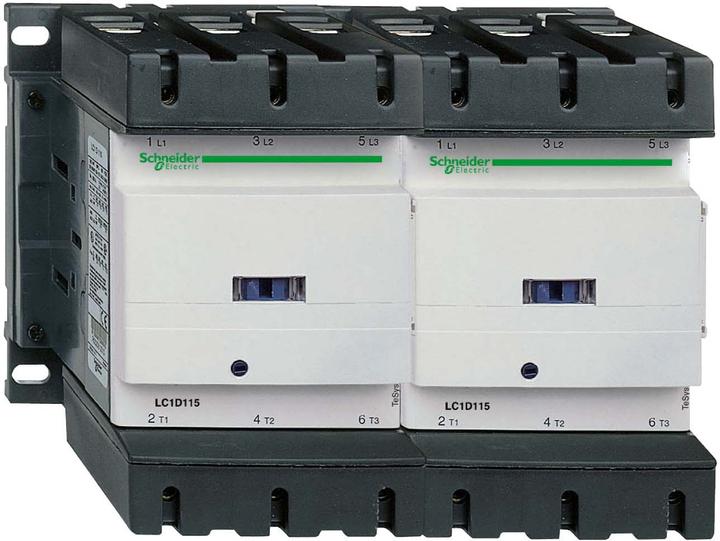

Schneider Electric reversing contactor combination LC2D150E7

Manufacturer: Schneider Electric
Designation: Reversing contactor combination
Rated power: 75 kW / 400 V / AC3
Type: LC2D150E7
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 48 V
Rated control supply voltage Us at AC 60 Hz: 48 V
Type of voltage for actuation: AC
Rated operating current Ie at AC-3, 400 V: 150 A
Rated operating power at AC-3, 400 V: 75 kW
Rated operating power NEMA: 74.6 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit:
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

Further details: 3-pole reversing contactor TeSys D for motor applications. Rated 150 A AC-3 75 kW @ 400 V, includes one 48 V 50/60 Hz AC coil, 2 NC + 2 NO auxiliary contacts, mechanical and electrical interlocking.
