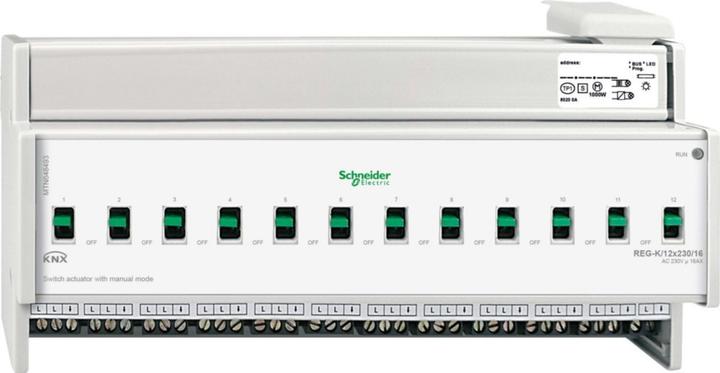

The switching actuator from Schneider Electric, model MTN648493, is a powerful device designed for the independent control of up to 12 consumers via switch contacts. With a maximum switching capacity of 3600 watts and a rated current of 16 amps, this switching actuator is ideal for use in modern smart home systems that support the KNX bus system. Installation is straightforward on a DIN rail according to EN 60715, allowing for flexible integration into existing setups. The switching actuator provides the option to manually operate all 230 V switching outputs via push buttons, ensuring user-friendly operation. Additionally, the actuator is equipped with an integrated bus coupler that facilitates easy connection to the KNX bus system. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments.

• Independent control of up to 12 consumers
• Integrated bus coupler for easy KNX integration
• Manual operation of all 230 V switching outputs possible
• Suitable for various loads, including C loads
• Easy installation on DIN rails according to EN 60715.
