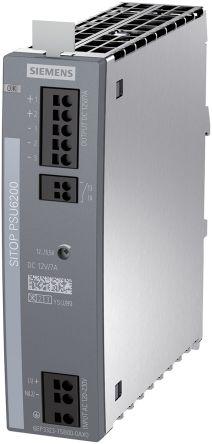

Siemens Dig.Industr. SITOP PSU6200 6EP3323-7SB00-0AX0

Manufacturer: Siemens Dig.Industr.
Designation: SITOP PSU6200 12V/7A
Type: 6EP3323-7SB00-0AX0
Supply Voltage Type: AC/DC
Output Voltage: 12 V
Max. Output Current: 7 A
Adjustable Output Voltage: yes
Nominal Output Voltage: 12 V
Nominal Output Current: 7 A
Short-Circuit Proof: yes
Rated Supply Voltage at AC 50 Hz: 240 V
Rated Supply Voltage at AC 60 Hz: 120 V
Rated Supply Voltage at DC: 120..240 V
Regulated Output Voltage: yes
Power Output: 84 W
Stabilized: yes
Electrical Connection Type: Spring Terminal
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Rack Installation: yes
Installation Width: 35 mm
Installation Height: 225 mm
Direct Mounting Possible: no
Width: 35 mm
Height: 135 mm
Depth: 125 mm
Protection Class (IP): IP20

SITOP PSU6200 12V/7A
Regulated Power Supply
Input: AC 120 - 230 V (DC 120 - 240 V)
Output: DC 12 V/7 A

The single-phase SITOP PSU6200 are technology power supplies for demanding solutions, offering maximum functionality for use in complex systems and machines. The wide-range input allows connection to any power grid worldwide and ensures high safety even with significant voltage fluctuations. The Extra-Power feature delivers up to 150% of the nominal current for short periods. In overload conditions, the PSU6200 provides constant current up to a voltage of 9 V DC. The very high efficiency keeps energy consumption and heat generation in the control cabinet low, and the compact metal housing also saves space. To further increase the availability of 12 V, the SITOP PSU6200 power supplies can be combined with redundancy modules. Regardless of the industry or requirement, Siemens offers reliable and efficient power supplies for every system.

EAN: 4025515155171.
