SKF Spherical Roller Bearing Open Design, 22217 EK/C3 85x150x36

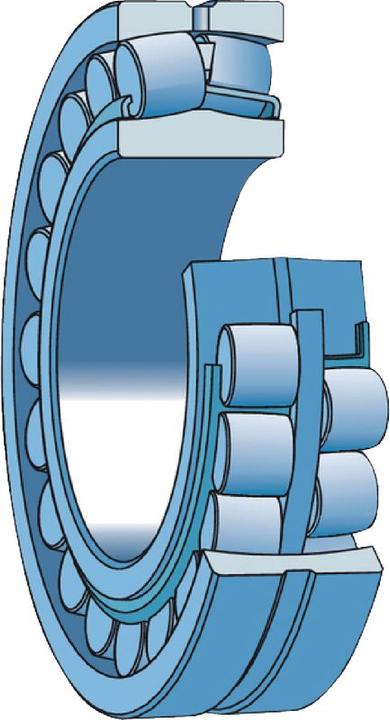

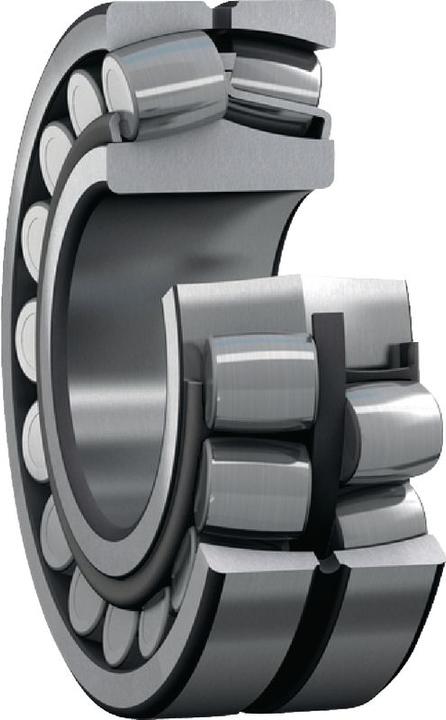

Design with cylindrical and tapered bore. Spherical roller bearings have two rows of rollers with a common spherical raceway in the outer ring and two raceways inclined to the bearing axis in the inner ring. This combination provides a range of advantageous properties that make them indispensable for many demanding bearing applications. Spherical roller bearings are angularly movable and therefore insensitive to misalignment of the shaft to the housing or shaft deflections. These bearings are exceptionally high-load radial bearings and can also accommodate relatively high axial loads in both directions.

Main dimensions: DIN 635-2:1984 / DIN 5416:1990 / ISO 2982-1:1995

Suffix:
E Optimized internal design
K Tapered bore, taper 1:12
C3 Clearance greater than normal.
