Properties

MMA / E-Hand. Manual electrode welding is a universal welding process as it can be used under almost all conditions.
Comprehensive pulse function in MMA and Lift-TIG mode, which prevents materials from burning through and significantly reduces deformation caused by heat. In this way, the inverter guarantees excellent welding results.
Anti-stick. If the electrode sticks to the workpiece, the welding current is automatically reduced. The electrode does not burn out and can be easily detached from the workpiece.
Hotstart. Automatic voltage increase at the start for better ignition results. Prevents the sticking of the rod electrode by briefly superimposing the set welding current and heats up the start of the weld seam more quickly.
Intelligent temperature control. The fan is only switched on and off when required. This saves energy and avoids noise emissions.
IGBT technology. Powerful, innovative solution that sets new standards in welding technology.

Technical data

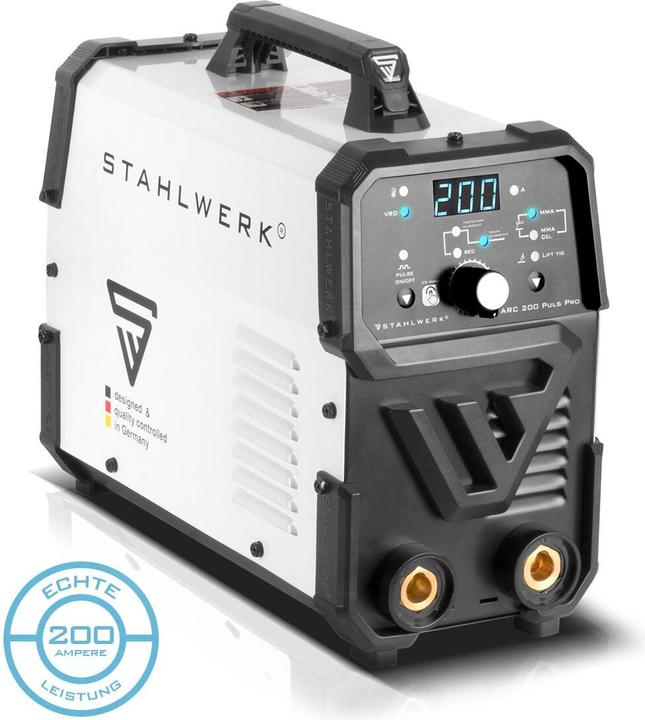

Model: Stahlwerk ARC 200 Pulse Pro welding machine
Output current MMA / Lift-TIG: 10 - 200 A
Duty cycle 40°C: 10% at 200 A / 100% at 63 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Weight: 5.4 kg
Dimensions (L x W x H): 330 x 150 x 276 mm
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co. Ltd.

Scope of delivery

1 x ARC 200 Puls Pro steelwork welding machine
1 x electrode holder 3 m
1 x earth cable 3 m
1 x protective cover
1 x slag hammer
1 x wooden wire brush
