Topcon RL-SV2S Dual-Axis Slope Laser + LS100D Digital Receiver + 2.7 m Tripod + Laser Rod

Description
A laser with multi-task capabilities! The Topcon RL-SV2S is a multi-task laser designed for use on construction sites and indoors – suitable for horizontal applications, single-axis or dual-axis slope, or vertical use. The laser offers numerous performance features and is extremely user-friendly. In short: the RL-SV2S meets your diverse workplace needs more than adequately!

Features

• Horizontal, single-axis slope, and dual-axis slope functions
• Vertical function
• Large, illuminated graphic displays on both the laser and remote control
• Remote control for slope, menu settings, operational status, battery power, etc.

Technical Specifications

• Horizontal/vertical accuracy ±1mm/20m
• Self-leveling range ±5 degrees
• Dual-axis slope range, ±15% (with front slope)
• Operating radius 400m
• Rotation speed 300, 600 RPM
• Protection class IP66
• Operating hours 120 hrs (Alkaline), 65 hrs (Ni-MH Battery BT-74Q)
• Operating temperature –20 to 50 °C
• Laser class 3R
• Output power 2.4mW
• Wavelength 635 nm

Laser Receiver LS-80L

• Channels with leveling display 11 (+high/low outside reception range)
• Accuracy High accuracy ±1mm, normal accuracy: ±2mm
• Acoustic tilt alarm Yes
• Power 2 x AA alkaline batteries
• Operating hours Approx. 120 hours (Alkaline)
• Automatic shut-off After 30 minutes without beam detection

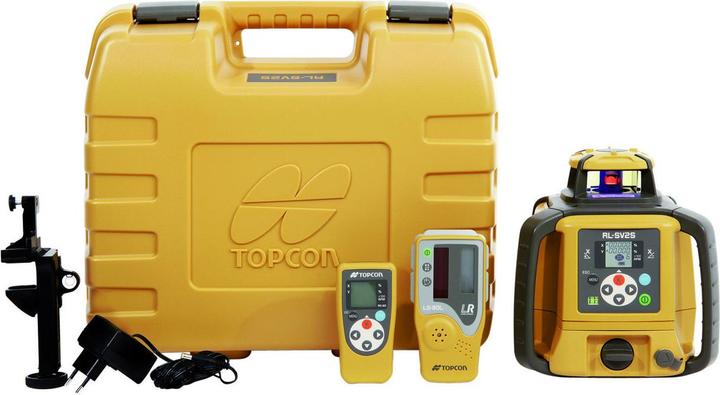

Included in Delivery

• Receiver LS100D
• Receiver holder
• Remote control
• Charger
• Sturdy case
• Tripod 520067
• Laser rod 520080.
