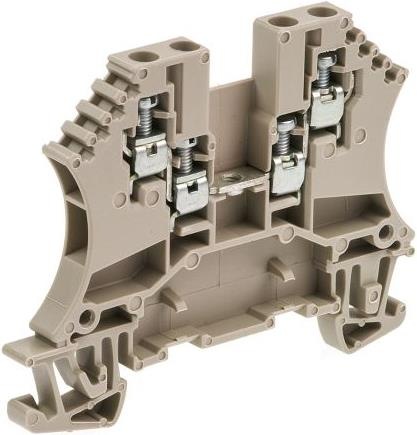

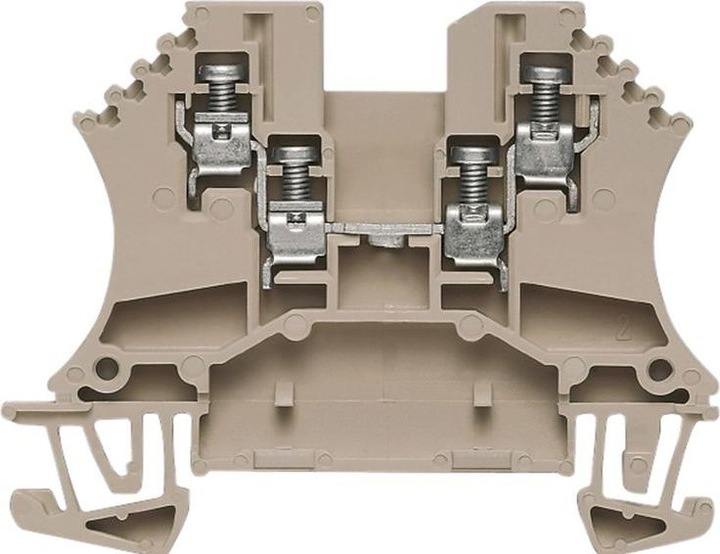

Weidmüller Terminal Block WDU 1.5/ZZ

Manufacturer: Weidmüller
Designation: Terminal Block
Type: WDU 1.5/ZZ

Connectable conductor cross-section fine-stranded without ferrule: 0.5..1.5 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..1.5 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..2.5 mm²

Rated current In: 17.5 A
Rated voltage: 800 V
Electrical connection type 1: Screw connection
Electrical connection type 2: Screw connection

Number of levels: 1
Number of connection points per level: 4
Suitable for conductor material: Copper
Mounting type: TH35 rail
Material of insulating body: Thermoplastic

Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.1 mm
Height: 60 mm
Depth: 46.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: beige
Internally bridged levels: no

Weidmüller Terminal Block WDU 1.5/ZZ: additional details
Rail-mounted terminal for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity.
EAN: 4008190148546.
