Access control
EUR236,44
Assa Abloy Electronic locker lock ML53PA PIN-right long form,TS 16-22mm
Electronic numerical code
Best selling Access control from Assa Abloy
This page always stays fresh and updates automatically.

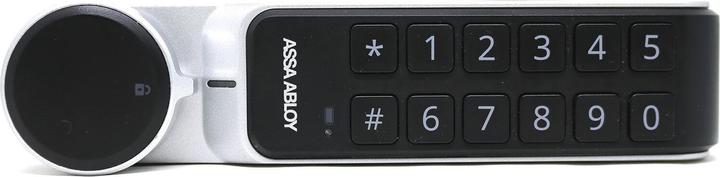

1. Assa Abloy Electronic locker lock ML53PA PIN-right long form,TS 16-22mm
Assa Abloy ML53PA PIN is an autonomous, battery-operated cabinet lock. The lock is designed for use in dry rooms but can also be used in humid areas when combined with a rubber seal. An additional hole for the upper screw can be retrofitted through the pre-drilled holes. For an enhanced user experience, the lock features acoustic and visual indicators. It can be powered via USB in case the batteries are completely drained. The handle includes a torque overload clutch function.
Technical specifications:
- Number of unlocking operations until battery replacement: 25,000
- Batteries: 3 x AAA (included)
- Max. 10 user codes
- USB connection: Micro Type B for external power supply
- Without lever/locking bolts (see accessories for other levers/locking bolts upon request)
The lock has three card levels:
- User code (4 digits)
- Caretaker/employee code (6 digits)
- Master code (8 digits)
Function:
The lock can operate in two different modes:
- Private mode: The lock is unlocked with the same pre-programmed codes.
- Public mode: The lock can be locked with any one-time code. After unlocking, a new user code can be entered.
With quick setup, multiple cards can easily be used in either of the two modes mentioned above. Additional functions can be programmed in or out using standard programming. The lock can be set to unlock based on time, meaning it will automatically unlock after a preset period. After repeated incorrect code entries, the timeout function is activated.
Dimensions (mm): 152 x 34/36 x 20.5/28
Material: Plastic silver/black
Direction: right
Installation type: horizontal
Door thickness (mm): 16-22
Type: ML53PA PIN
Version: PIN - right long form
Brand: Assa Abloy
Contents (ST): 1.
2. Assa Abloy Zutrittskontrollbeschlag Zahlencode TS 65
The TS 65 code access control fitting from Assa Abloy offers a reliable solution for access control in various types of doors. It is designed for use in flush and profile frame doors and is suitable for interior applications. With a U-shaped long plate and a square spindle of 9 mm, this fitting is compatible with all European (DIN) mortise locks. The door leaf thickness can vary between 40 and 100 mm, allowing for flexible adjustment to different door strengths. The main electronics are located on the outside, while the security-relevant electronics are housed inside the fitting. The outer push button is free-running, while the inner push button is constantly engaged, ensuring easy operation. Additionally, the fitting is equipped with an LED status indicator that signals the current state in various colors (red, green, orange).
- Compatible with all European (DIN) mortise locks
- Flexible door leaf thickness from 40 to 100 mm
- LED status indicator for easy monitoring
- Security-relevant electronics housed inside
- Mechanical cylinder can be used optionally.
Access control
EUR769,–
Assa Abloy Zutrittskontrollbeschlag Zahlencode TS 65
Electronic numerical code
3. Assa Abloy Electronic locker lock ML53PA PIN-vertical short form,TS 1-16mm
Assa Abloy ML53PA PIN is an autonomous, battery-operated cabinet lock. The lock is designed for use in dry rooms but can also be used in damp areas when combined with a rubber seal. An additional hole for the upper screw can be retrofitted through the pre-drilled holes. For an enhanced user experience, the lock features acoustic and visual indicators. The lock can be powered via USB when the batteries are completely drained. It has a built-in torque overload coupling function in the handle.
Technical specifications:
- Number of unlocking operations until battery replacement: 25,000
- Batteries: 3 x AAA (included)
- Max. 10 user codes
- USB connection: Micro Type B for external power supply
- Without lever/locking bolts (see accessories for other levers/locking bolts upon request)
The lock has three card levels:
- User code (4-digit)
- Caretaker/employee code (6-digit)
- Master code (8-digit)
Function:
The lock can operate in two different modes:
- Private mode: the lock is unlocked with the same pre-programmed codes.
- Public mode: the lock can be locked with any one-time code. After unlocking, a new user code can be entered.
With quick setup, multiple cards can easily be used in either of the two modes mentioned above. Additional functions can be programmed in or out using standard programming. The lock can be set to unlock based on time, meaning it will automatically unlock after a preset period. After repeated incorrect code entries, the timeout function is activated.
Brand: Assa Abloy
Design: PIN - vertical short form
Material: Plastic silver/black
Dimensions (mm): 152 x 34/36 x 20.5/28
Direction: universal
Type: ML53PA PIN
Door thickness (mm): 1-16
Installation variant: vertical
Contents (ST): 1.
Access control
EUR240,55
Assa Abloy Electronic locker lock ML53PA PIN-vertical short form,TS 1-16mm
Electronic numerical code
4. Assa Abloy Zutrittskontrollbeschlag Zahlencode Türstärke 40-45 mm
The Assa Abloy access control fitting with keypad is a reliable solution for indoor access control. It is specifically designed for door thicknesses of 40 to 45 mm and offers easy integration into various door systems. The fitting is compatible with all European (DIN) mortise locks and is suitable for both flush and profile frame doors. Installation is straightforward, and the outer push button operates freely while the inner push button is constantly engaged. The main electronics are located on the outside, while the security-relevant electronics are housed inside the fitting. An LED status indicator in various colors informs the user about the current state of the system. The fitting is designed for indoor use and provides high security through the option to integrate a mechanical cylinder or continue using the existing cylinder.
- Compatible with all European (DIN) mortise locks
- Easy installation with three bolts
- LED status indicator for user-friendliness
- Battery-operated with Lithium CR123A
- Approval according to EN179 for enhanced security.
Access control
EUR789,–
Assa Abloy Zutrittskontrollbeschlag Zahlencode Türstärke 40-45 mm
Electronic numerical code
5. Assa Abloy Controller+Reader Set 435S1121--1--00
Is there only one door that needs to be equipped with access control? Then SCALA solo is the perfect solution. In private areas such as single-family and multi-family homes, as well as in smaller establishments like workshops, shared offices, or law firms, SCALA solo is the ideal entry-level solution for access control. It consists of the SCALA Mini-Controller, which can be integrated into any standard switch box in the house, and a reader. Instead of using keys, the door is opened with ID cards, a PIN, or a security-optimized combination of ID and PIN. Access permissions can be easily configured via keyboard input with a master code. With the SCALA solo version, up to 99 codes or cards can be assigned for a single door: for family members, employees, suppliers, or visitors. If a code or an ID is no longer needed, it can be easily and specifically deleted.
The SCALA solo set, consisting of a mini-controller and SCALA solo PIN reader, is delivered as a plug & play device. The user does not need a PC or software for operation and management and can start using access control immediately. The connection of a reader, door opener, and door monitoring contact is made to the mini-controller. Future use of the mini-controller as a door module in higher-level solutions, such as an expansion to SCALA web or SCALA net, is easily possible.
