Actuator
EUR239,44
ABB Stotz S&J Switch/shutter actuator 8gang 16A, REG SAH/S8.16.7.1

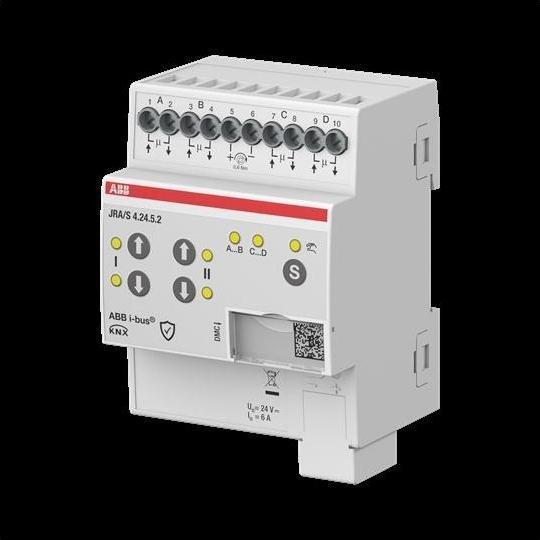

Shutter actuator
Best selling Actuators from ABB
This page always stays fresh and updates automatically.
1. ABB Stotz S&J Switch/shutter actuator 8gang 16A, REG SAH/S8.16.7.1
The 16A Combi Actuator features 8 independent switching relays, allowing for individual control of electrical devices or paired 230V AC blinds via ABB i-bus®. Manual operation of the outputs is possible, and the switching or operating status of the output is displayed. The manual operation of the device can be locked. This is a KNX device and does not require an additional power supply.
Type: SAH/S8.16.7.1
Switching actuators 16 A switching/blind actuator, 16 A 8-fold.
2. ABB Switching/shutter actuator
ABB Stotz S&J Switching/Shutter Actuator SAH/S24.6.7.1
Manufacturer: ABB Stotz S&J
Designation: Switching/Shutter Actuator 24-fold 6A
Type: SAH/S24.6.7.1
Bus System KNX: yes
Bus System KNX-RF: no
Bus System RF Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional RF: no
Mounting Type: DIN Rail
Width in Division Units: 12
Local/Manual Control: yes
With LED Display: yes
Max. Switching Power: 1200 W
Max. Switching Power LED: 250 W
Output Power: 1200 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 24
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Different Phases Connectable: yes
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Possibility: no
Protection Class (IP): IP20
The 6A Combi Actuator features 8 independent switching relays, allowing for individual control of electrical loads or paired 230V AC shutters via ABB i-bus®. Manual operation of the outputs is possible. The manual operation of the device can be locked. The switching or operating status of the output is displayed. It is a KNX device and does not require an additional power supply.
EAN: 4013614552540.
3. ABB Switching actuator
ABB Stotz S&J Switch actuator 8-fold SA/S8.16.6.2 Manufacturer: ABB Stotz S&J Designation: Switch actuator 8-fold 16A, C-load REG Type: SA/S8.16.6.2 Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without Radio bidirectional: no Mounting type: REG Width in pitch units: 8 On-site/manual operation: yes With LED display: yes Max. Switching capacity: 3680 W Max. LED switching capacity: 400 W Output power: 3680 W Suitable for C-load: yes Max. number of switching outputs: 8 Number of switching outputs: 8 Max. Rated current: 20 A Rated operating voltage: 230 V Different phases connectable: yes With bus coupling: yes Bus module removable: yes Min. depth of device box: 64 W Depth of device box: 64.5 mm Modular expansion option: yes Protection class (IP): IP20ABB Stotz S&J switch actuator 8-fold SA/S8.16.6.2: further detailsSA/S8.16.6.2 switch actuator, 8-fold, 16 A, C-load with energy function, REG , EAN: 4016779066433.
4. ABB Stotz S&J Switch actuator 12-fold SA/S12.16.6.2
ABB Stotz S&J Switching Actuator 12-fold SA/S12.16.6.2
Manufacturer: ABB Stotz S&J
Designation: 12-fold switching actuator 16A, C-load
Type: SA/S12.16.6.2
Bus system KNX: yes
Bus system KNX-RF: no
Bus system Radio bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional radio: no
Mounting type: REG
Width in division units: 12
Local/manual operation: yes
With LED display: yes
Max. switching power: 3680 W
Max. switching power LED: 400 W
Output power: 3680 W
Suitable for C-load: yes
Max. number of switching outputs: 12
Max. switching current: 20 A
Rated current: 20 A
Rated operating voltage: 230 V
Various phases connectable: yes
With bus coupling: no
Bus module detachable: no
Min. depth of device box: 64.5 mm
Modular expansion option: no
Protection class (IP): IP20
The switching actuator controls 12 independent electrical consumers via ABB i-bus® KNX with potential-free contacts. It features an integrated energy function and has current measurement per output. This includes an easy-to-use calculation of power and energy consumption per output or group of outputs. With an integrated load control object, simple integration into a load management system is enabled. Each output can be operated manually and has a switching status indicator. The 16/20A, 16A-AC3 (C-load) device is particularly suitable for switching loads with high inrush current peaks, such as LED lamps or fluorescent lamp loads.
5. ABB UD/S6.210.2.1
Multichannel universal dimmer actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (deactivatable). Separate N connection per channel. Parallel connection of outputs to increase output power is possible. Outputs can be connected in any parallel configuration. Minimum load: 2 W. Manual operation at the device is also possible without bus voltage or in an unprogrammed state. Programming of the device is possible even without an applied 230 V supply voltage. Extensive testing and diagnostic functions via the i-bus tool. Quick parameterization in the ETS through copyable channel templates. With integrated bus coupler. Rated power at 230 V. Mains voltage: 230 V. Incandescent and halogen lamps: 6 x 210 W/VA up to 1 x 800 W/VA. Dimmable 230 V LEDi: 6 x 210 W/VA up to 1 x 800 W/VA in phase-cut, 6 x 80 W/VA up to 1 x 240 W/VA in phase-on. Inductive L transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA up to 1 x 800 W/VA. Electronic C transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA up to 1 x 800 W/VA. Electronic LC transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA up to 1 x 240 W/VA.
6. ABB Switch actuator 4gang 16 ASA/S4.16.2.2REG 2CDG110262R0011
ABB Stotz S&J Switching Actuator SA/S4.16.2.2
Manufacturer: ABB Stotz S&J
Designation: 4-channel switching actuator, 16A, REG
Type: SA/S4.16.2.2
Bus system KNX: yes
Bus system KNX-RF: no
Bus system Radio Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional radio: no
Mounting type: REG
Width in division units: 4
Local/manual operation: yes
With LED display: yes
Max. switching power: 2500 W
Max. switching power for LED: 400 W
Output power: 2500 W
Suitable for C-load: no
Max. number of switching outputs: 4
Max. switching current: 16 A
Rated current: 16 A
Rated operating voltage: 230 V
Various phases connectable: yes
With bus coupling: no
Bus module removable: no
Min. depth of device box: 63.5 mm
Modular expansion option: no
Protection class (IP): IP20
The ABB Stotz S&J Switching Actuator SA/S4.16.2.2 switches electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 16A standard series is suitable for switching resistive loads (AC1).
7. ABB Switch actuator 4gang, 10A REG SA/S4.10.2.2
ABB Stotz S&J Switching Actuator SA/S4.10.2.2 Manufacturer: ABB Stotz S&J Description: 4-channel switching actuator, 10A REG Type: SA/S4.10.2.2 Bus system KNX: yes Bus system KNX-RF: no Bus system Radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without RF bidirectional: no Mounting type: REG Width in division units: 4 Local/manual operation: yes With LED display: yes Max. switching power: 2500 W Max. switching power LED: 400 W Output power: 2500 W Suitable for C-load: no Max. number of switching outputs: 4 Max. switching current: 10 A Rated current: 10 A Rated operating voltage: 230 V Different phases connectable: yes With bus coupling: yes Bus module removable: no Min. depth of device box: 64.5 mm Modular expansion option: no Protection class (IP): IP20 The switching actuator controls electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 10A series is particularly suitable for switching resistive, inductive, and capacitive loads, as well as fluorescent lamp loads according to DIN EN 60669. EAN: 4016779066570.
8. ABB 2CDG110169R0011 ABB-I/O Actuator Type IO/S8.6.1.1
ABB Stotz S&J IO-Actor IO/S8.6.1.1
Manufacturer: ABB Stotz S&J
Designation: 8-channel IO-Actor, REG
Type: IO/S8.6.1.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Remote Control Possible: yes
Ethernet: no
Mounting Type: REG
Width in Division Units: 8
With Bus Coupling: no
Control LED: no
With LED Display: no
Local/Manual Operation: no
Number of Input Channels: 8
Number of Switching Inputs: 8
Number of Inputs: 8
Max. Switching Current: 6 A
Ohmic Switching Current: 6 A
Max. Switching Power: 1200 VA
Input Voltage: 230 V
Suitable for C-Load: no
Number of Output Channels: 8
Max. Number of Switching Outputs: 8
Output Power: 1200 VA
Switching Function: yes
Rated Current: 6 A
Rated Operating Voltage: 230 V
External Query Voltage Required: no
Different Phases Connectable: yes
Type of Current: AC
Protection Class (IP): IP20
The IO-Actor opens up new possibilities for spaces that need to be used efficiently. This device has been developed for areas typically found in hotels, hospitals, assisted living facilities, and student dormitories. It meets all the requirements for electrical installations in these applications and offers the following functions in a compact form: controlling lighting and switching consumers. Through the communication of devices via the KNX bus, central control functions and emergency calls from the rooms to a central station can also be realized.
EAN: 4016779881081.

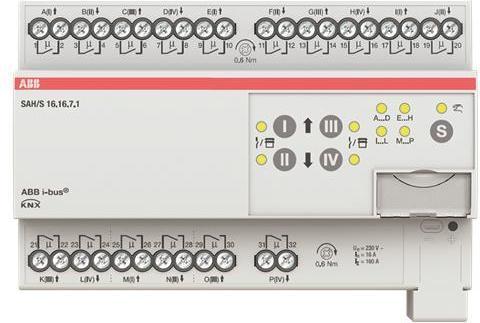

9. ABB SAH/S16.16.7.1 Switching/shutter actuator, 16gang, 16 A, REG
ABB Stotz S&J switching/shutter actuator
Manufacturer: ABB Stotz S&J
Designation: Switching/shutter actuator
Type: SAH/S16.16.7.1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 8
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 1200 W
Max. LED switching capacity: 250 W
Output power: 1200 W
Suitable for C-load: No
Max. number of switching outputs: 16
Number of switching outputs: 16
Max. rated operating voltage: 230 V
Different phases can be connected: Yes
With bus coupling: Yes
Bus module can be removed: Yes
Min. depth of device box: 64.5 mm
Modular expansion option: Yes
Protection class (IP): IP20
The 16A combi actuator has 16 independent switching relays that can switch electrical loads or 230V AC blinds individually in pairs via ABB i-bus®. Manual operation of the outputs is possible, and the switching or driving status of the output is displayed. Manual operation of the device can be disabled. It is a KNX device and does not require an additional power supply.
EAN: 4016779066853.
10. ABB Switch actuator 12-fold, 16A, C-load SA/S12.16.5.2
Switches electrical consumers with 2, 4, 8, or 12 independent potential-free contacts via ABB i-bus®. Manual operation of each contact is possible. The switching state of the contact is displayed. The 16/20A, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks, such as lighting fixtures with compensation capacitors or fluorescent lamp loads according to DIN EN 60669.
Type: SA/S12.16.5.2
Switch actuators 16/20 A switch actuator.
