Best selling Actuators from Theben
This page always stays fresh and updates automatically.
1. Theben Jm 4 T Knx
Theben KNX blind actuator JM 4 T KNX
Manufacturer: Theben
Designation: KNX blind actuator 4-fold, o.extens.
Type: JM 4 T KNX
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in subdivision units: 4
With bus coupling: No
Bus module detachable: No
On-site/manual operation: Yes
With LED display: Yes
Number of inputs: 4
Switching current ohmic: 6 A Max.
Max. number of blind outputs: 4
Switching function: No
Current type: AC
Protection class (IP): IP20
Theben KNX blind actuator JM 4 T KNX: further details include a 4-fold drive control, rail-mounted device, width 4 HP, relay outputs for 4 drives, suitable for blinds, shutters, roller blinds, etc. It features an LED display, manual operation at the device, slip correction, freely parameterizable drive, manual switch UP/DOWN, and LEDs, with 4 NO contacts. EAN: 4003468490778.
2. Theben Dm 2 T Knx
KNX Universal Dimmer Actuator 2-fold, rail-mounted housing, width TE, dimming range 0-100%, maximum load: 2x400 VA or 1x800 VA. When using the channels as control outputs, up to dimming boosters DMB T with a maximum of 5x400 VA power per channel can be controlled. Suitable for dimming incandescent lamps, low-voltage and high-voltage halogen lamps, dimmable and non-dimmable LED retrofit lamps. Different dimming curves allow for stepless dimming of all types of lamps and are also suitable for controlling many fans. Automatic load detection selectable, manual operation at 0, 25, 50, 75, and 100% or TestDM 2 T KNX.
3. Theben PJ 1 RF KNX 2/4-gang radio push-button
The PJ 1 RF KNX 2/4-channel wireless switch from Theben is a versatile switching actuator module specifically designed for integration into KNX systems. With the ability to communicate wirelessly, this wireless switch offers a flexible solution for modern smart home applications. It is designed for flush mounting and can be easily integrated into a variety of 55 mm switch programs. The switch features four push buttons that allow for simple control of blinds and other electrical devices. Support for KNX Data Secure ensures safe commissioning and communication, making it a reliable choice for the automation of residential and commercial spaces. The PJ 1 RF KNX is ideal for retrofitting conventional installations and offers user-friendly handling.
- Support for KNX Data Secure for secure communication
- Universally applicable in many 55 mm switch programs
- Easy retrofitting of conventional installations
- Wireless communication for flexible applications
- Suitable for controlling blinds and other devices.
4. Theben LUXORliving D1
The LUXORliving D1 from Theben is a highly advanced dimming actuator designed for flush mounting. It allows for the dimming of a wide variety of light sources, including dimmable energy-saving lamps, LEDs, incandescent and halogen bulbs, as well as dimmable transformers. With automatic load detection, the dimming actuator adapts flexibly to different light sources, ensuring easy installation and use. The adjustable dimming curve provides precise and flicker-free dimming, enhancing comfort and user-friendliness. Two binary inputs allow for the connection of various potential-free contacts such as buttons, switches, or temperature sensors, enabling additional functionalities. The integrated temperature monitoring ensures increased operational safety, especially in case of overload.
- Optimized dimming outputs for various types of light sources
- Automatic load detection for easy adaptation
- Adjustable dimming curve for flicker-free dimming
- Integrated temperature monitoring for enhanced operational safety.

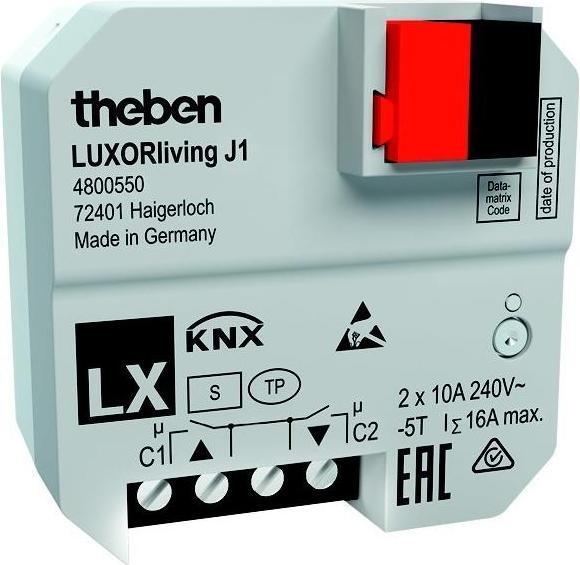

5. Theben LUXORliving J1
The LUXORliving J1 from Theben is a versatile shutter actuator specifically designed for controlling drives for blinds, roller shutters, as well as sun and privacy protection systems. This product allows for precise control over various applications, including skylights and ventilation flaps. The actuator is suitable for flush mounting and offers user-friendly installation. With two binary inputs that can be used for potential-free contacts such as buttons, switches, or window contacts, the LUXORliving J1 is flexible in its application. The integrated temperature monitoring ensures increased operational safety, especially in overload situations. The LUXORliving J1 is a reliable solution for anyone looking for efficient control of their blinds and roller shutters.
- Two binary inputs for flexible control options
- Integrated temperature monitoring for enhanced safety
- Suitable for controlling blinds, roller shutters, and ventilation flaps
- Flush mounting for a clean installation.
6. Theben LUXORliving PJ 1 RF 2/4f
Theben LUXORliving PJ 1 RF 2/4f.
7. Theben JMG 4 T 24V KNX
The JMG 4 T 24V KNX heating actuator from Theben is a versatile and powerful device specifically designed for controlling blinds, roller shutters, and awnings. With its 4-channel drive control, it allows for precise and individual adjustment of the drives, which can be managed via KNX technology. The device is designed as a rail-mounted unit and can be easily installed on a DIN rail. It offers the option for manual operation directly at the device and is equipped with slip correction to ensure optimal functionality. The drives are freely parameterizable, providing high flexibility in usage. Additionally, the actuator can be combined with other devices from the MIX series or expanded with the JME 4 T to control up to 12 channels. The JMG 4 T 24V KNX is therefore an ideal solution for modern smart home applications.
- 4-channel drive control for individual adjustment
- Manual operation at the device with hand switches
- Slip correction for optimal drive function
- Expandable with JME 4 T for up to 12 channels
- Compatible with other devices in the MIX series.
8. Theben JU 1 KNX
Theben JU 1 KNX (flush-mounted blind actuator KNX).
9. Theben LUXORliving IP-RF system centre
The LUXORliving IP-RF central unit from Theben is an advanced control center for smart home applications, enabling seamless integration and control of up to 30 radio actuators or push-button actuator modules. It features a user-friendly Wi-Fi interface that facilitates communication with the commissioning software LUXORplug and the control app LUXORplay. The system does not require additional devices such as media couplers or power supplies in the distribution board and eliminates the need for an ETS. The LUXORliving central unit supports a variety of functions, including switching, dimming, blind control, and room climate regulation. Additionally, it is equipped with an integrated timer that offers an astronomical function and ensures secure, encrypted communication within the system. The ability to control it remotely via the secure Theben Cloud, as well as integration with popular voice assistants like Amazon Alexa and Google Home, makes this central unit a flexible solution for modern smart home environments.
- Integration of up to 30 radio actuators or push-button actuator modules
- Encrypted communication within the system (KNX Data Secure)
- Integrated timer with astronomical function
- Remote control possible via the secure Theben Cloud
- Compatible with Amazon Alexa, Google Home, and IFTTT.

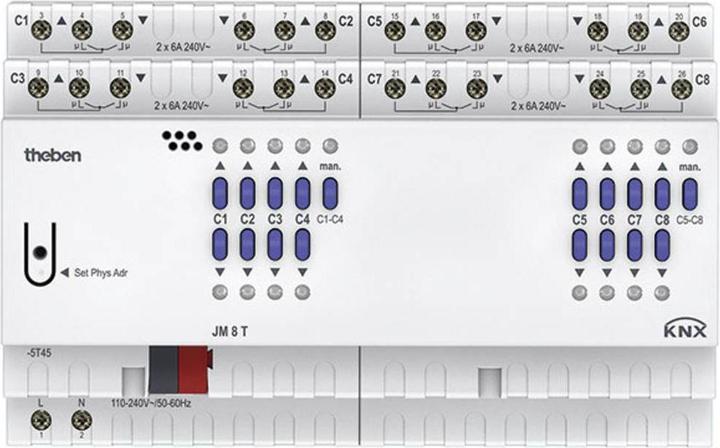

10. Theben Jm 8 T Knx
The Theben JM 8 T KNX is a highly advanced blind actuator specifically designed to control up to eight drives. This modular device allows for precise control of blinds, roller shutters, and awnings, and offers manual operation directly at the device. With a width of 8 TE, the actuator is suitable for mounting on a DIN rail and meets the requirements of modern building automation. The integrated slip correction ensures optimal adjustment of the drives, while the freely parameterizable functions allow for individual customization for various applications. The JM 8 T KNX is not only user-friendly but also robust, with an IP20 protection rating that qualifies it for indoor use.
- 8-fold drive control for blinds, roller shutters, and awnings
- Manual operation with push buttons and LEDs
- Freely parameterizable drives for individual adjustments
- Integrated slip correction for optimal performance
- Suitable for mounting on DIN rails.
