Door opener + closers
EUR35,07
Dormakaba Axle extensions TS 73 V / TS 83
Entrance door, French window, Room door, Wooden door
Best selling Door openers + closers from Dormakaba
This page always stays fresh and updates automatically.
1. Dormakaba Axle extensions TS 73 V / TS 83
The TS 73 V / TS 83 axis extensions from Dormakaba are specifically designed to increase the distance between the door closer and the arm on doors with high overlaps. With a height of 16 mm, these extensions provide an effective solution for adjusting door mechanisms, particularly for interior doors, wooden doors, as well as entrance and balcony doors. The surface of the axis extensions is galvanized, which not only ensures an appealing appearance but also enhances the durability and resilience of the product. These extensions are compatible with standard arms, detent hold-open arms, and detent hold-open arms with shutdown, highlighting their versatility in various applications. Manufactured in Germany, the axis extensions meet high quality standards and are a reliable choice for door technology.
- Allows adjustment of the distance between door closer and arm on high overlaps
- Compatible with standard arms and detent hold-open arms
- Galvanized surface for increased durability and corrosion resistance
- Suitable for various door types, including interior doors and balcony doors.
2. Dormakaba Mounting plate for TS 73 V / TS 83
For the attachment of the closer to fire and smoke protection doors, as well as to doors where direct attachment is not possible. With a universal hole pattern according to Annex 1 of EN 1154.
Color: Silver
Component: Mounting plate
Usage: TS 83
Brand: Dormakaba
Contents (ST): 1.
Door opener + closers
EUR19,90
Dormakaba Mounting plate for TS 73 V / TS 83
Entrance door, French window, Room door, Wooden door, Indoor
3. Dormakaba Hinge plate for TS 73 V / TS 83
The hinge plate from Dormakaba is an essential component for door closing systems, specifically designed for the TS 73 V and TS 83 models. It allows for secure attachment of the linkage to particularly narrow door frames and is suitable for both standard linkages and hold-open arms. This hinge plate is made of durable metal, providing a reliable solution for various door types, including balcony doors, entrance doors, wooden doors, and interior doors. With a compact size of 58 mm in length and 26 mm in height, it is ideal for applications where space is limited. The silver-colored surface not only offers an appealing look but also contributes to the product's longevity. The hinge plate is an indispensable accessory for the installation and operation of door closers, ensuring efficient and secure door functionality.
- Designed for the TS 73 V and TS 83 models
- Suitable for standard linkages and hold-open arms
- Compatible with various door types, including balcony doors and interior doors
- Made from durable metal for increased longevity.
Door opener + closers
Quantity discount
EUR10,15 per piece for 2 units
Dormakaba Hinge plate for TS 73 V / TS 83
Entrance door, French window, Room door, Wooden door
4. Dormakaba Screws to ITS 96
Screw to door closer ITS 96 Lever to closer connection.
Door opener + closers
Quantity discount
EUR11,88 per piece for 2 units
Dormakaba Screws to ITS 96
Entrance door, French window, Room door, Wooden door
5. Dormakaba Floor springs BTS 75 V
Universal floor door closer according to EN 1154 for DIN left, DIN right, and double-action doors weighing up to 120 kg. It features an infinitely adjustable closing force, size EN 1-4, and adjustable closing speed. The closing action begins from approximately 175° with a hydraulically fully controlled closing process and opening damping. Accessories such as other plug-in shafts and sealing compound are available upon request. Delivery does not include a cover plate, which must be ordered separately.
Features:
- Design: Hold-open
- Size: EN 1-4
- Hold-open: 90°
- For door width: max. 1100 mm
- Closer height: 50 mm
- Closer depth: 82 mm
- Closer length: 285 mm
- Max. door weight: 120 kg
- Leaf width: max. 1100 mm
- Brand: Dormakaba.

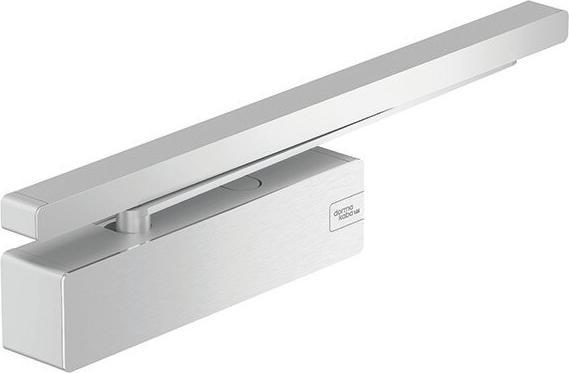

6. Dormakaba Door closer TS 92 G XEA
The TS 92 G XEA door closer from Dormakaba is a reliable solution for the automatic closing of object doors. It is characterized by its robust construction, designed for indoor use. The door closer is surface-mounted and does not require an external power source, making it particularly user-friendly. With a strongly declining opening moment and an adjustable closing force, it offers flexible handling that can be tailored to the specific requirements of each application. The closing speed is adjustable in two phases, allowing for precise control over the closing process. The door closer is made of high-quality metal and features an elegant black finish, making it both functional and aesthetically pleasing.
- Adjustable closing force for individual customization
- Two phases of closing speed adjustable
- Robust metal construction for durability
- Suitable for indoor use.

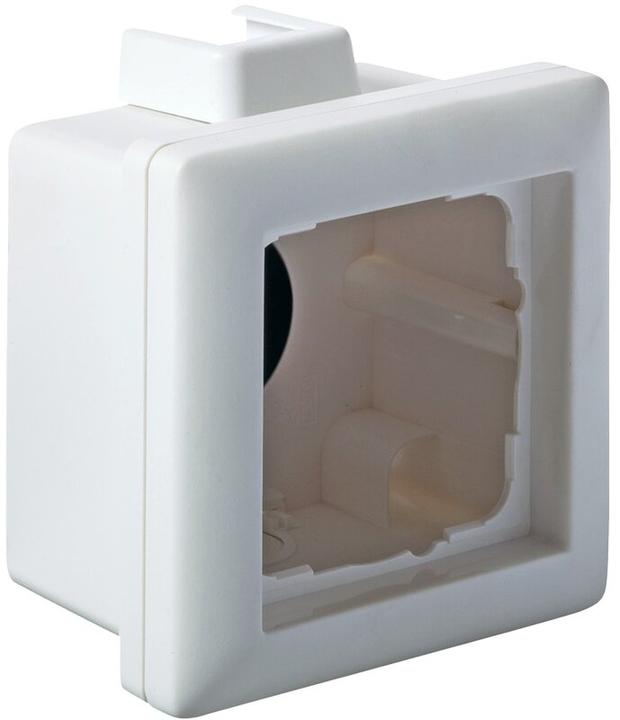

7. Dormakaba Gehäuse für Aufputzmontage
The surface-mounted housing from Dormakaba is a practical solution for the installation of door closers. It has been specially developed for use with the 66.044.43 release button and offers a robust and reliable mounting option. Made from high-quality plastic, this housing is suitable for indoor use and ensures easy integration into existing systems. With a compact design and clear functionality, it is ideal for various applications in residential and commercial spaces. The careful workmanship and sophisticated design make it a valuable addition to any door closer installation.

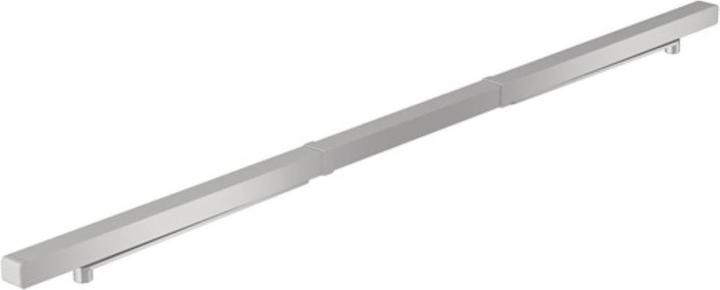

8. Dormakaba Slide rail GSR-EMR-2/V suitable for TS 93 B white 9016 hinge side
For TS 93 B, this system ensures the correct sequence when closing 2-leaf doors, allowing for individual hold-open of the door leaves. In the event of an alarm or power failure, the hold-open is canceled, and the door is closed by the door closer. Control can be achieved via an external (EMF) or integrated (EMR) smoke detection control unit. The hold-open function can also be triggered manually without any tools. It is suitable for DIN-L and DIN-R doors and can be combined with the DORMA TS 93 B door closer, with mounting on the hinge side. For doors where the hold-open point is above 130°, it is recommended to use DORMA EM holding solenoids instead of the electromechanical hold-open.
The supply voltage for EMR is 230 V AC ± 10 %, with a maximum rated output power of 9.8 W. The operating voltage for EMF is 24 V DC ± 15 %, with power consumption of 1 to 1.4 W for EMF 1 and 2.8 W for EMF 2. The duty cycle is 100 % ED.
The DORMA TS 93 G-SR-EMF 1, EMF 2, and EMF 1G systems have been approved by the German Institute for Building Technology, Berlin, for use with all well-known smoke detection systems; acceptance testing is mandatory. The DORMA TS 93 G-SR-EMR 1, EMF 2, and EMF 1G systems are approved by Deutsches Institut für Bautechnik, Berlin, as hold-open systems, with acceptance testing also mandatory.
Further technical features include a duty cycle of 100 % ED.
Delivery does not include the door closer; please order separately.
Door opener + closers
EUR1459,–
Dormakaba Slide rail GSR-EMR-2/V suitable for TS 93 B white 9016 hinge side
Indoor

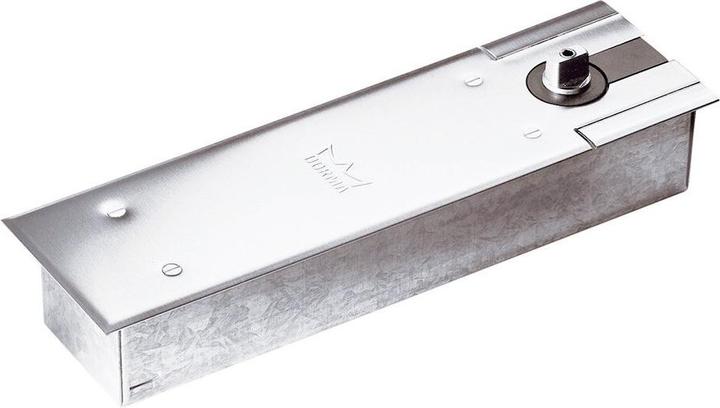

9. Dormakaba Floor springs BTS 80 EMB
The BTS 80 EMB floor door closer from Dormakaba is a reliable solution for the automatic closing of interior doors. Equipped with an electromagnetic hold-open feature, this door closer offers precise control over the closing process. The galvanized cement box ensures durability and stability, while the hydraulic control guarantees a smooth and controlled closing motion. The infinitely adjustable closing speed and stop allow for individual customization to meet the specific requirements of the application area. The door closer is suitable for various door types, including wooden and interior doors, and meets the requirements for fire and smoke protection doors according to EN 1154. With an operating voltage of 24 V DC, it is designed for mains operation and provides reliable performance in various environments.
- Electromagnetic hold-open for precise control
- Hydraulically controlled closing process for smooth closing motion
- Infinitely adjustable closing speed and stop
- Suitable for wooden and interior doors, including fire and smoke protection doors
- Operating voltage of 24 V DC for mains operation.
Door opener + closers
EUR1869,–
Dormakaba Floor springs BTS 80 EMB
Entrance door, French window, Room door, Wooden door, Indoor

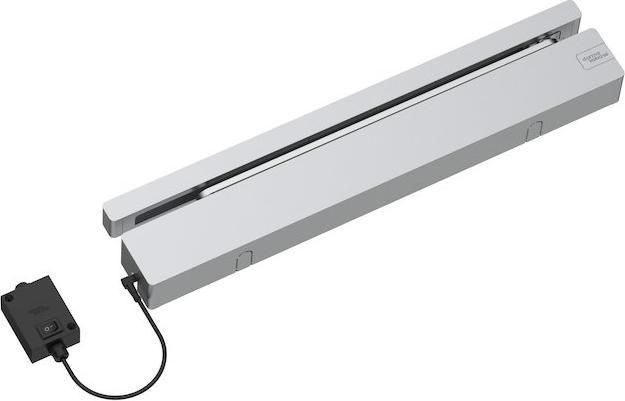

10. Dormakaba Free swing door closer TS 97 FL XEA
The Dormakaba TS 97 FL XEA free-running door closer is a highly developed solution for the safe and efficient closing of fire and smoke protection doors. It has been specifically designed for indoor use and offers reliable functionality in the event of a fire. With its sliding rail and free-running lever, this door closer allows for flexible handling and secure closing of the doors. The infinitely adjustable closing force and the adjustable closing speed via a valve ensure individual adaptation to specific requirements. The door closer is suitable for both left-hand and right-hand DIN configurations and meets the stringent requirements of the DIN EN 1155 standard, highlighting its quality and reliability. With an input voltage of 24 V DC, it is designed for mains operation and features a robust metal construction that ensures durability and stability.
- Free-running function from 0 to 145°
- Infinitely adjustable closing force
- Adjustable closing speed via valve
- Adjustable end stop via valve
- Tested according to DIN EN 1155.
Door opener + closers
EUR1119,–
Dormakaba Free swing door closer TS 97 FL XEA
Entrance door, Garden gate, Wooden door, Indoor
