Best Janitza products in the Energy monitors category
On this page you'll find a ranking of the best Janitza products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Janitza UMG 604 Pro
Voltage quality analyzer UMG 604 Pro. The greater functionality and extensive display options make it easier to analyze and interpret measurement data and results. With the help of the pre-installed Janitza apps, data can be processed, visualized, and analyzed.

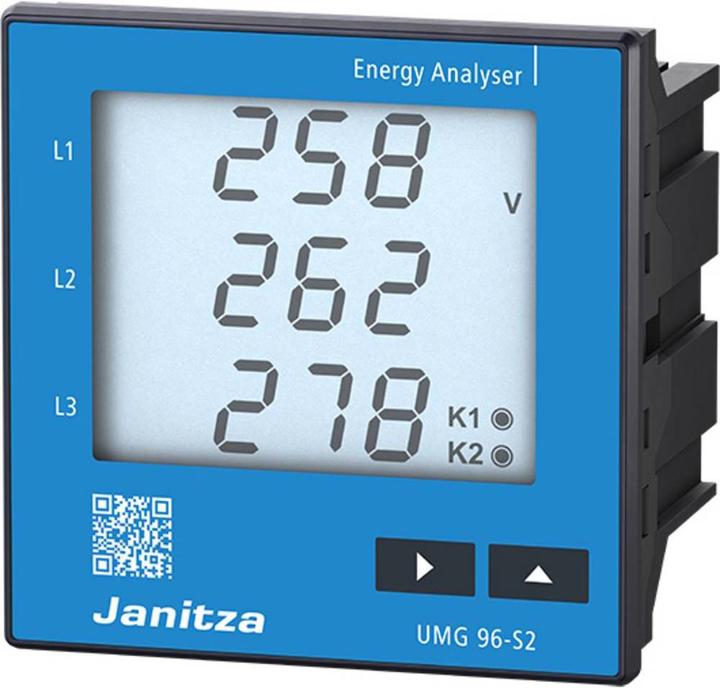

2. Janitza Digital panel meter Energy meter UMG 96 S2 with backlight
Harmonics. Applications can be found in energy distribution systems, for example, for cost center accounting and limit value monitoring. Furthermore, the device can be used as a measuring value transmitter for building management systems or a PLC.
3. Janitza Power analyzer
Energy measuring device UMG 96RM-P with Profibus, UL. Supply voltage 90V to 277V, 50/60Hz, 90V to 250V DC, 300V CATIII. Voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs L-N: 20V-300V, L-L: 34V-520V, 45Hz-65Hz, 31 current measurement inputs 0 to 5A, response current 5mA. Measurement in three-phase 4-wire systems with grounded neutral up to a maximum of 277V, 480V. Measurement in ungrounded three-phase 3-wire systems up to a maximum of 480V. Measurement in single-phase 3-wire systems up to a maximum of 220V-440V. Measurement in single-phase 2-wire systems up to a maximum of 220V. 24 digital outputs, 4 digital inputs, clock and data storage 5MB, 256 MB Flash. Interfaces: RS485, USB, Sub 9 pin. Protocol: Profibus. Included accessories: installation manual, safety instructions, and software GridVis quick start, mounting kit, USB connection cable, RS485 termination resistor 120 Ohm. Programming software GridVis Basic.

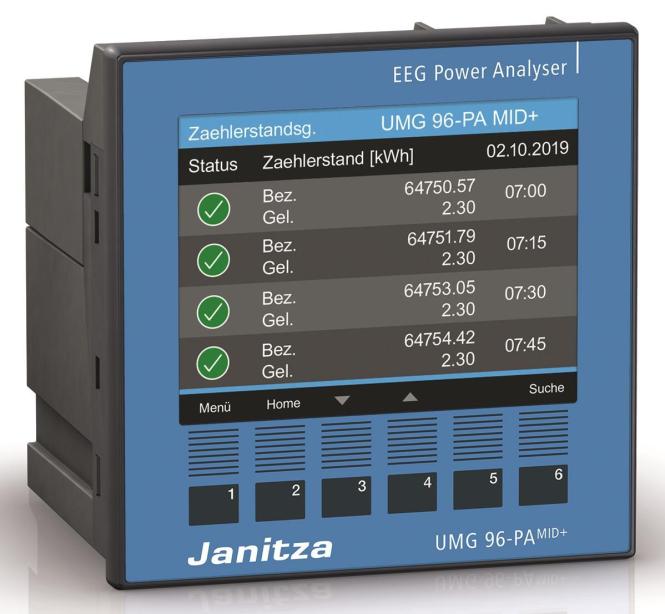

4. Janitza 5232004
The Janitza UMG96-PA-MID+ is a modularly expandable power analyzer specifically designed as an operating hour counter. This device enables precise monitoring of energy consumption and provides reliable measurement of current in amperes. With a maximum current of 6 amperes, the UMG96-PA-MID+ is suitable for various applications in industrial and commercial environments. The analog display ensures a clear and understandable representation of the measurement values, while the accuracy class B guarantees high precision. The installation of the device is straightforward, making it a practical solution for energy measurement.
- Modularly expandable for flexible applications
- Precise analog display of measurement values
- High accuracy with accuracy class B
- Easy installation for uncomplicated setup.
5. Janitza JANI Transmitter
The JANI converter from Janitza is a highly developed voltage transformer specifically designed for use with Rogowski current transformers. This device provides a standardized output signal of 0 to 1 A and is suitable for universal applications in measuring alternating currents. With an impressive measurement range of 250 to 4000 A, the converter enables precise and reliable measurements in various industrial applications. The power supply is provided via 24 VDC, allowing for easy integration into existing systems. The converter is housed in a compact plastic enclosure that allows for mounting on a DIN rail, making it ideal for use in control cabinets and other electrical installations.
- Standardized output signal of 0 to 1 A
- Measurement range of 250 to 4000 A
- Power supply of 24 VDC
- Compact design for DIN rail mounting.

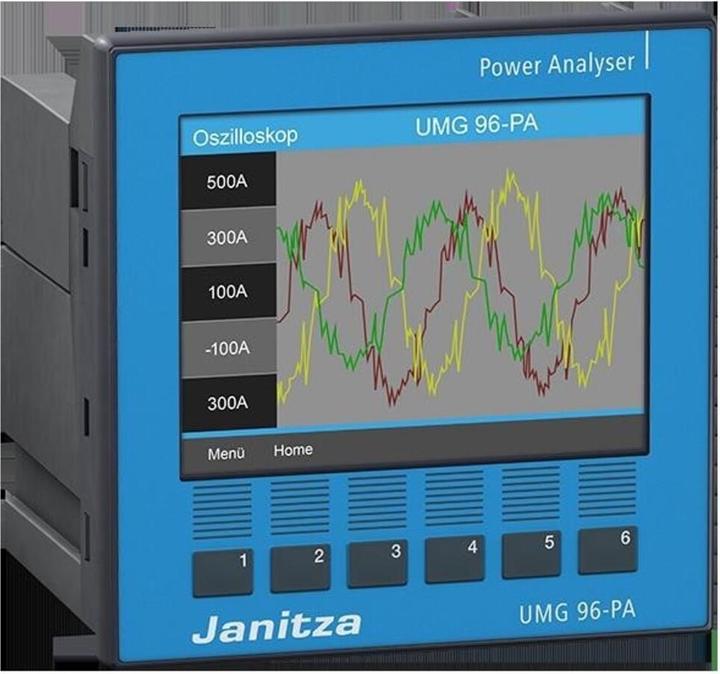

6. Janitza Universal measuring device
The UMG 96-PA universal measuring device from Janitza is a highly advanced energy measuring instrument designed for precise measurements in various electrical systems. It offers a comprehensive analysis of electrical parameters, including voltage, current, active power, and reactive power. With a wide supply voltage range of 90 to 277 V AC and 90 to 250 V DC, it is versatile in its applications. The device is suitable for front mounting and features a graphical display that provides a clear and understandable presentation of the measurement values. The integrated measurement data memory with 8 MB allows for the storage and analysis of measurement data over extended periods. The UMG 96-PA is ideal for applications in industrial and commercial environments where precise monitoring of energy consumption is required.
- Measurement of harmonics up to the 25th harmonic
- Supports Modbus RTU for communication
- IP54 protection class for increased durability
- Three voltage and three current measurement inputs
- Integrated measurement data memory with 8 MB.
7. Janitza UMG 604-PRO 24 V power quality analyser Power quality analyser UMG 604-PRO
The UMG 604-PRO voltage quality analyzer from Janitza is a highly advanced multifunction measuring device designed for the precise analysis and monitoring of voltage quality parameters in electrical systems. With a supply voltage range of 20 to 50 V AC and 20 to 70 V DC, this device offers broad measurement capabilities, allowing it to capture both alternating and direct currents. The analyzer is equipped with four voltage and four current measurement inputs, enabling comprehensive data collection. The integrated digital display and the ability to log data make it an indispensable tool for professionals who need to monitor and analyze the quality of electrical energy. Additionally, the UMG 604-PRO offers a variety of interfaces, including Ethernet and RS232, facilitating easy integration into existing systems. The included apps and programming software enhance the device's functionality and provide a user-friendly interface for analyzing and visualizing measurement data.
- Measurement category: 300V CATIII for safe applications
- Integrated web server for remote monitoring
- 128MB flash memory for extensive data storage
- Two digital inputs and outputs for enhanced functionality
- Compatible with GridVis software for comprehensive data analysis.
Energy monitors
EUR1200,41
Janitza UMG 604-PRO 24 V power quality analyser Power quality analyser UMG 604-PRO

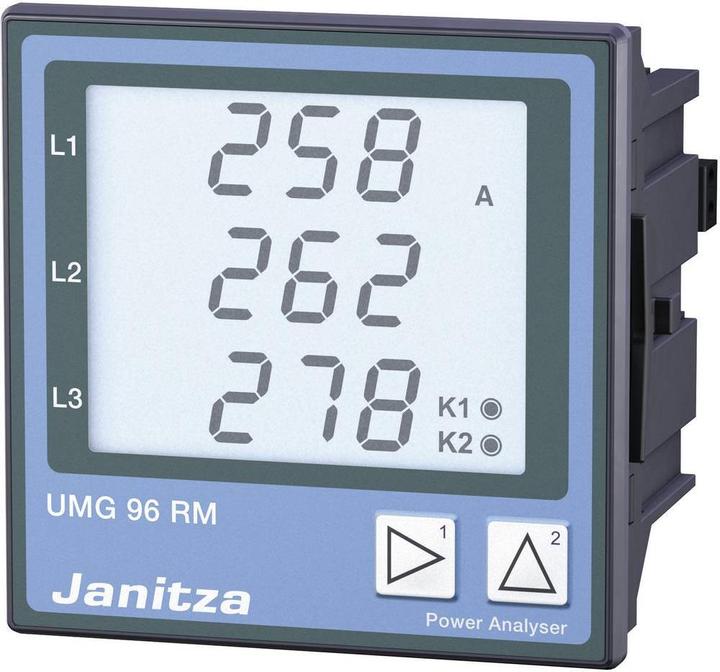

8. Janitza UMG96RM Universal measuring device UMG
The UMG96RM is a very compact and powerful universal measuring device primarily designed for use in low and medium voltage distribution systems. It enables the measurement, monitoring, and control of electrical parameters in energy distribution systems and provides load profiles for energy management systems (e.g., ISO 50001). Additionally, it records energy consumption for cost center analysis and serves as a measuring value provider for building management systems or PLCs (Modbus). Furthermore, it monitors voltage quality parameters, such as harmonics up to the 40th order.

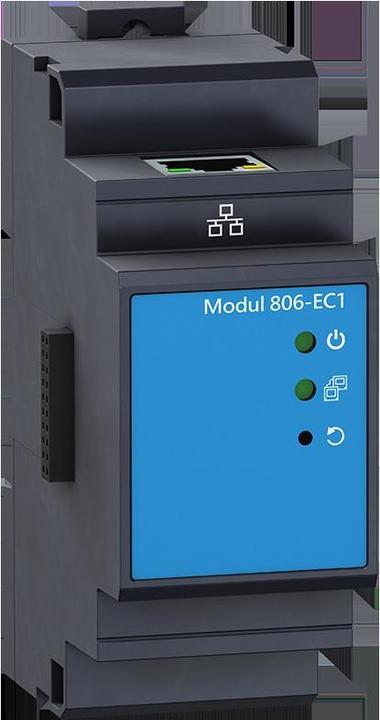

9. Janitza 1402016
The Janitza Module UMG 806-EC1 is a communication module specifically designed for integration into the energy measuring device UMG 806. It enables efficient data transmission over Ethernet and supports the Modbus TCP/IP protocol, ensuring seamless communication in modern automation systems. With a compact design intended for mounting on a DIN rail, this module offers easy installation and integration into existing systems. The IP20 protection rating ensures that the module can be used indoors without risk from dust or contact. The module is equipped with an RJ45 connector, allowing connection to networks with speeds of up to 100 Mbit/s. It is an ideal solution for applications that require reliable and fast data communication.
- Pluggable communication module for the UMG 806
- Supports Modbus TCP/IP for flexible network communication
- An Ethernet RJ45 connector for easy integration
- Compact design for mounting on DIN rails.
10. Janitza Modular expandable UMG 800 energy analyser 5238002
The modularly expandable energy analyzer UMG 800 from Janitza is a highly advanced measuring device designed for use in energy monitoring systems. With its compact design, the device is ideal for DIN rail mounting and offers a variety of functions for precise measurement of electrical parameters in different network types, including TN, IT, and TT networks. The UMG 800 allows for the measurement of harmonics up to the 63rd order and is equipped with an external power supply of 24-48 V DC. The integrated data storage with 4 GB ensures that all relevant data is reliably captured. Additionally, the device features an OPC UA interface, enabling easy integration into existing systems. The versatile connection options, including two Ethernet RJ45 ports, make the UMG 800 a flexible solution for modern energy monitoring requirements.
- Modularly expandable for custom adaptations
- Measurement of harmonics up to the 63rd order
- Integrated data storage with 4 GB
- OPC UA interface for easy system integration
- Suitable for 3-phase 4-wire systems up to 277 V/480 V.
