Best selling Energy monitors from Schneider Electric
On this page you’ll find a ranking of the best Energy monitors from Schneider Electric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Schneider Electric iEM3110 Energy Meter 63A Pulse MID
Advertisement Type: LCD
Number of Digits: 10
Pulse Output: Yes
Depth: 69 mm
Minimum Temperature: -25 °C
Series: Acti 9 iEM3000
Model types and technical specifications can be found in the product information guide. The Schneider Electric iEM3000 series power meter is a cost-effective energy measurement solution packed with features for DIN rail and modular enclosures. The Acti 9 iEM3000 series power meters are more than just kWh meters; they provide a comprehensive overview of on-site energy consumption and generation with complete four-quadrant measurement of delivered and received active and reactive power. Additionally, extensive real-time measurements (V, I, P, PF) give customers more insight into their energy usage, and the ability to handle multiple tariffs allows for flexible adaptation to the utility provider's billing structure. The meters are fully compatible with the Acti 9 communication system.
Accuracy class 1.0 (models iEM3100 and iEM3300) and 0.5S (model iEM3200) for active power measurement, accuracy class 2 for reactive energy measurement. Graphical display for good visibility. Compact design, easily mounted on DIN rails with two clips. Internal clock stores the date and time of the last reset and retains data for 48 hours during a power outage. Selection of multiple tariffs through digital inputs or internal clock.
Applications: Billing verification to ensure that only the energy you actually consumed is charged. Partial billing for the energy consumption of individual tenants, including WAGES. Summation of energy consumption including WAGES and allocation of costs by area, usage, shift, or per within the same facility.
2. Schneider Electric Digital module Individual harmonics LV850006
Schneider Electric digital module LV850006. Description: Digital module for calculating the harmonics of current and voltage up to the 40th harmonic. The calculation is performed every 200 ms according to IEC 61000-4-30 (Testing and Measurement Procedures - Procedures for Measuring Power Quality). Micrologic X calculates the average value of the harmonics over a 3-second interval. Note: Micrologic X requires firmware version V002.000.xxx or higher. Earlier firmware is not compatible with this application. The analysis of harmonic distortions can be displayed directly on a smartphone and forwarded to an expert system. With the help of EcoStruxure Power Services, the data can be analyzed. EAN: 3606481183958.
3. Schneider Electric XBH1AA0G4 Plastic 22.5mm green Segment display
The Harmony XB5 series made of plastic and the XB4 series made of metal offer a variety of complete devices with 22 mm and 30 mm sizes, including push buttons, indicator lights, and selector switches, as well as emergency stop switches. Due to their quality, flexibility, and extreme robustness (IP65 protection class), these devices are ideal for most applications in industry and buildings. This 7-segment display with a green display color can represent simple values up to 4-digit numbers. Mounted in a 22 mm hole, the device is connected via spring terminals on the back of the product. The possible analog input range is from 4 to 20 mA. With a wide range of existing product standards and certifications, it is suitable for international use.
4. Schneider Electric STBAVI1400K
The Schneider Electric STBAVI1400K is an analog input module designed for use in industrial automation systems. It provides precise measurement of analog signals with a resolution of 15 bits and supports voltage values of ± 10 V. The module is part of the Modicon STB series and allows integration into various fieldbus systems, supporting a separate bus coupling for fieldbus connections. The delivery includes the electronics module, the module carrier, and the necessary connection technology in screw and spring clamp versions. With a compact design and an IP20 protection rating, the module is suitable for use in controlled environments.
- Supports analog input signals of ± 10 V with 15-bit resolution
- Includes module carrier and connection technology in various designs
- Compatible with separate bus coupling for fieldbus connections
- IP20 protection rating for use in protected environments.
5. Schneider Electric PM5340 meter ethernet 2DI/2DO 35 alarms
Display type: LCD
Number of phases: 3
Depth: 72 mm
Minimum temperature: -25 °C
Maximum temperature: 70 °C
Type of measuring device: Electromechanical
Model types and technical specifications can be found in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and usage of equipment, and assess the power supply quality of the electrical grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. Measurement of power supply quality, data collection, graphical display, large characters, and powerful backlighting, easy-to-understand menus, text in 8 selectable languages. Very accurate devices with global billing certifications, IP52 protection rating on the front. Single device in 96 x 96 mm. Applications: Cost management – sub-billing/tenant billing – cost allocation, network management – basic monitoring of power supply quality – min/max monitoring with timestamp – alarms – WAGES monitoring.

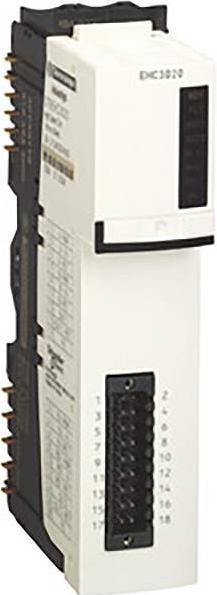

6. Schneider Electric STBEHC3020KC
7. Schneider Electric Operating hours counter 5 digits 240Vac
Schneider Electric Operating Hour Counter XB5DSM
Manufacturer: Schneider Electric
Designation: Operating hour counter 230/240V
Type: XB5DSM
Mounting type: Surface and front mounting
Execution: Digital
Counting range: 9999 h
Reset function: None
Running display: Yes
Number of digits: 5
Input voltage: 230..240 V
Voltage type: AC/DC
Frequency of input voltage: 50 Hz
Drive type: Net synchronous
Width: 30 mm
Height: 30 mm
Installation depth: 60 mm
Front panel width: 30 mm
Front panel height: 30 mm
Front mounting cutout diameter: 22.5 mm
Mounting up to max. wall thickness: 6 mm
Protection class (IP): IP65
Protection class (NEMA): Other
The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness, these devices are ideal for most applications in industry and buildings. Mounted in a 22mm hole, the connection of the device is made via screw terminals on the back of the product. This operating hour counter features a 5-digit display without a reset function. The supply voltage is 230V AC. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
8. Schneider Electric Acti9 iEM3100 Energy Meter Multi Tariff
Schneider Electric Energy Meter IEM3115 A9MEM3115
Manufacturer: Schneider Electric
Designation: Energy Meter IEM3115 3P+N 63A 4Tariff
Type: A9MEM3115
Meter Type: Electronic
Rated Current (In): 63 A
Maximum Current (Imax): 63 A
Rated Voltage (Un) N-L: 100..277 V
Rated Voltage (Un) L-L: 173..480 V
Frequency: 50..60 Hz
Accuracy Class: B
Polarity: Three-phase/Four-wire
Design: Direct Measurement
Energy Type: Active Power
Suitable for: Consumption/Supply
Tariff Design: Multi-tariff
Tariff Control: Internal/External
Load Profile Measurement: No
Reverse Prevention: No
Calibrated: No
Approval: Measuring Instruments Directive
Pulse Output: Optical
Pulse Type: S0
Pulse Rate: 0..500 Imp/kWh (kvarh)
Display Type: Digital
Mounting Type: REG
Width in Division Units: 5
Width: 90 mm
Depth: 69 mm
Height: 95 mm
Interface Design: None
EDL40 Signature: No
With Lock Code: No
Number of Digits: 9
Protection Class (IP): IP20
Protection Class (NEMA): 1
Schneider Electric Energy Meter IEM3115 A9MEM3115: further details
Acti 9 iEM3000 series. iEM3115 energy meter, 3-phase, with sub-meter, 4 tariffs. Input_T 2, MID Yes, max. rated current 63 A. Three-phase meter for direct measurement up to 63 A. Display features a full graphic LCD for simultaneous clear text representation of menu item/measurement category, measurement value, unit, and active tariff. Sub-meters are displayed or communicated with a timestamp (date & time) of the last reset. Measurement function for total active energy meter without reset function and partial active energy meter with reset function. Additional order options include billing meter MID compliant according to EN 50470-3, total active energy meter and per phase. Protection class front IP 40, housing IP 20. Note on MID variants for compliance with the European Measuring Instruments Directive MID 2004/22/EC: the measuring device must be installed in a cabinet or housing with protection class IP51 or better.
9. Schneider Electric Measuring device
PowerLogic PM3255 universal measuring device for DIN mounting with a backlit LCD display (128 x 96 pixels). The measuring device offers an accuracy class of 0.5s according to the IEC 62053-22 standard and 32 samples per cycle. It measures energy, active and reactive power, voltage, current, frequency, power factor, apparent power, total harmonic distortion, and up to the 15th harmonic. With 4-quadrant energy measurement, the device operates in a 50Hz or 60Hz network and accepts a supply voltage of 100 to 277VAC, 173 to 480VAC, and 100 to 300VDC. The rated current is 1 A or 5 A and supports single-phase, single-phase with neutral, or three-phase configurations. The direct measurement range is from 50 to 570VAC, with an external voltage transformer from 570 to 999,000VAC. The measurement range between phases is 80 to 570 VAC at 45 to 65 Hz. The measurement range between phase and neutral is 50 to 330VAC at 45 to 65 Hz. The communication protocol is Modbus RTU and ASCII 2 wires with RS485 connection. Support for two digital inputs and two digital outputs. The device offers 512kB of memory for event recording with up to 15 alarms and power and energy consumption logs. The product dimensions are as follows: width 90 mm, depth 70 mm, height 95 mm, and product weight 260 g.

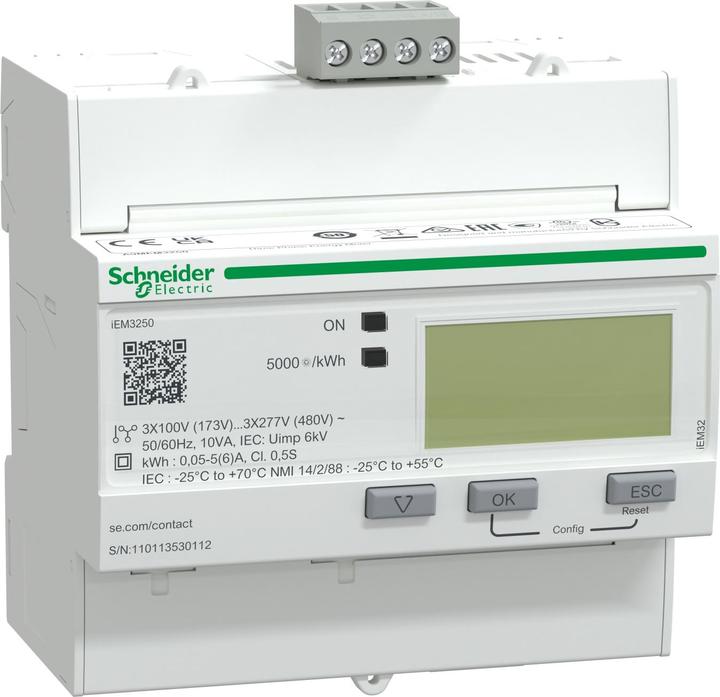

10. Schneider Electric Acti9 iEM3200 Energy Meter Modbus
Display type: LCD
Number of digits: 10
Number of phases: 1, 3
Depth: 69 mm
Minimum temperature: -20 °C
Series: iEM3200
Acti9 iEM3200 energy meters. The Acti 9 iEM3000 series energy meters offer a range of energy meters for DIN rail mounting, ideal for separate billing and cost allocation. In combination with communication systems like Smart Link, the Acti 9 iEM3000 series facilitates the integration of electrical distribution measurements into the customer's facility management systems. Two versions are available: 63 A direct measurement (models iEM3100) and meters connected with current transformers (iEM3200). iEM3200: kWh meter with sub-metering. iEM3210: kWh meter with sub-metering and pulse output, MID approved. iEM3215: multi-rate meter, controlled via digital input or internal clock, MID approved. iEM3250: kWh meter with sub-metering and measurement of current, voltage, and power, Modbus communication. iEM3255: energy meter, four quadrants, multiple tariffs with sub-metering and measurement of current, voltage, and power, Modbus communication, digital I/O, MID approved.
