Hoists + workshop cranes
EUR1789,–
Yale Flaschenzug ITG Haspelfahrwerk Typ A Hub 3 m,Tragkraft 500 kg
Best selling Hoists + workshop cranes from Yale
On this page you’ll find a ranking of the best Hoists + workshop cranes from Yale. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Yale Flaschenzug ITG Haspelfahrwerk Typ A Hub 3 m,Tragkraft 500 kg
Yalelift ITP/ITG Spur Gear Hoist (Trolley)
Please specify the flange width when placing your order! The Yalelift 360 offers increased flexibility with its very low-profile trolley.
- Load capacity up to 3000 kg: single line
- Dimensions: further shortened for optimal use even in low ceiling heights
- Trolley: adjustable for a wide range of beams and profiles (e.g., INP, IPE, IPB)
- Adjustment: up to 300 mm according to the flange easily
- Rollers: designed for up to 14% incline of the flange, according to DIN 1025, Part 1
- Bearings: sealed ball bearings with permanent lubrication
- Standard features: tilt protection, wheel break supports
- Conversion: later conversion to the Yalelift IT with integrated trolley is easily possible
- On request: short design, illustrated starting buffers
Please specify the flange width when placing your order! Also available in explosion-proof version upon request. Integrated reel trolley.
2. Yale All-purpose scaffold UNOplus-A 1500 Lift 1.5 m Load capacity 1500 kg
Design: Robust construction made of sheet steel in a compact design. Smooth chain release mechanism. Chain guide for trouble-free chain operation. Note: In the functional principle of the threaded load pressure brake, the axial braking pressure is generated by the load itself and is therefore proportional to the size of the load. The load is securely held in any position; to lower it, the difference between the brake and load moment must be overcome. All Yale universal devices are equipped with this feature. The automatically acting chain release allows for quick engagement of the unloaded chain; when a load is applied, the threaded load pressure brake automatically re-engages, securely holding the load. The slip clutch (optional upon request) prevents excessive load intake, thereby increasing the lifespan of the lifting device. ATEX version available upon request. Use: Standard universal device for handy, versatile applications.
Hoists + workshop cranes
EUR359,–
Yale All-purpose scaffold UNOplus-A 1500 Lift 1.5 m Load capacity 1500 kg
3. Yale All-purpose scaffold UNOplus-A 3000 Lift 3.0 m Load capacity 3000 kg
Universal device UNOplus A with round steel chain. The UNOplus A universal device is equipped with a round steel chain for lifting, pulling, and securing loads.
• Steel sheet construction: compact, robust
• Load hooks: forged from aging-resistant, high-alloyed heat-treated steel
• Standard: galvanized, high-strength load chain, compliant with applicable national and international standards
• Bottom block: robust with encapsulated pins
• Load pressure brake: corrosion-protected components, asbestos-free friction discs
• Handling: easy due to low self-weight
• Chain piece: robust design
• Chain release: smooth for quick attachment of the load
• Chain guide: integrated in the housing, flawless operation of the load chain over the load chain wheel
• Effort: low due to optimal gear ratio
• Hand lever: ergonomically shaped with rubber coating
• Steel handwheel.
Hoists + workshop cranes
−16%
EUR529,– was EUR629,–
Yale All-purpose scaffold UNOplus-A 3000 Lift 3.0 m Load capacity 3000 kg
4. Yale Spur gear pulley block 6m VS III 2000-1
Spur gear chain hoist model VS III features an all-steel housing and high-quality bearings for the drive pinion and load sprocket. It includes a continuous stud bolt between the side plates and the cover attachment, and the handwheel cover is reinforced with additional stiffeners. The bearings and bearing bushes are encapsulated and permanently lubricated in the gearbox. The brake system is protected against dust, foreign bodies, and corrosion. The friction discs are asbestos-free and surface-protected. The round steel chains are high-strength and comply with national and international regulations. The suspension and load hooks are forged from ageing-resistant, alloyed tempered steel and are designed to open without breaking when overloaded, featuring robust safety brackets that can rotate 360 degrees. Delivery includes operating instructions with an integrated EC Declaration of Conformity. Note: Precisely machined guide rollers ensure optimum running of the load chain, resulting in a durable and maintenance-friendly design.
5. Yale Flaschenzug ITP Rollfahrwerk Typ A Hub 3 m,Tragkraft 1000 kg
Yalelift ITP/ITG Spur Gear Hoist (Trolley) - Please specify the flange width when ordering! The Yalelift 360 offers increased flexibility with its very low-profile hand trolley.
- Load capacity up to 3000 kg: single-strand
- Dimensions: further shortened for optimal use even in low ceiling heights
- Hand trolley: adjustable for a wide range of beams and profiles (e.g., INP, IPE, IPB)
- Adjustment: up to 300 mm according to the flange easily
- Running wheels: designed for up to 14% incline of the flange, according to DIN 1025, Part 1
- Bearings: sealed ball bearings, permanently lubricated
- Standard features: tilt protection, wheel break supports
- Conversion: later conversion to the Yalelift IT with integrated trolley is easily possible
- On request: short design, illustrated starting buffers
Also available in explosion-proof version upon request. Integrated rolling trolley.
6. Yale Hoist VS III 0.5 t
Execution: Each gear block is tested for overload at the factory and is delivered with an operating manual and a test certificate. All-steel construction. Needle and ball bearings on all rotating parts. Automatically acting load pressure brake. 360° rotatable, forged load hook. Note: Load capacities up to 20 tons, chain storage, and overload protection available upon request.
7. Yale Lever hoist handy
The Yale lever hoist Handy is a compact and lightweight all-purpose device that is ideal for mobile use. With a load capacity of up to 250 kg and a lifting height of 1.5 m, this device is versatile and fits easily into any toolbox. The drop-forged load and suspension hooks are mounted on swivels, making handling easier. The chain release allows for simple operation, while the ergonomically shaped hand lever provides additional comfort. The encapsulated design protects the device from dust and moisture, enhancing its durability. This lever hoist is not only practical but also safe, as it is subject to inspection and meets quality and safety standards.
- Compact and lightweight design for easy transport
- Swiveling load and suspension hooks for improved handling
- Ergonomically shaped hand lever for comfortable use
- Encapsulated construction protects against dust and moisture
- Subject to inspection for added safety and reliability.
8. Yale Spur gear pulley block 10m VS III 500-1
Spur gear chain hoist model VS III features an all-steel housing and high-quality bearings for the drive pinion and load sprocket. It includes a continuous stud bolt between the side plates and the cover attachment, and the handwheel cover is reinforced with additional stiffeners. The bearings and bearing bushes are encapsulated and permanently lubricated within the gearbox. The brake system is protected against dust, foreign bodies, and corrosion. The friction discs are asbestos-free and surface-protected. The round steel chains are high-strength and comply with national and international regulations. The suspension and load hooks are forged from ageing-resistant, alloyed tempered steel and can rotate through 360°, with robust safety brackets that prevent breaking when overloaded. Delivery includes operating instructions with an integrated EC Declaration of Conformity. Note: Precisely machined guide rollers ensure optimum running of the load chain, contributing to a durable and maintenance-friendly design.

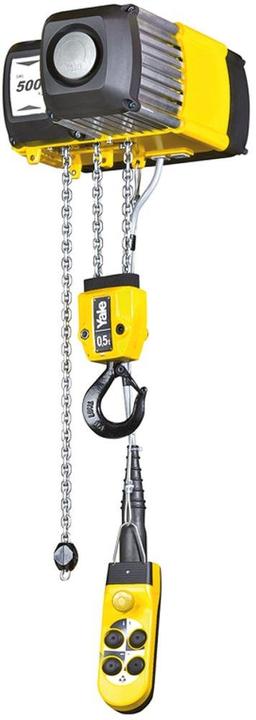

9. Yale E-Zug Vego CPV 5-4 Hub 3m, 500kg
The CPV/F electric chain hoist is a versatile and powerful device designed for a variety of applications in workshops and industrial environments. With a modern design and robust construction, this hoist offers a load capacity ranging from 125 to 5000 kg and a standard lifting height of 3000 mm. The technical innovation is evident in the integrated safety mechanism, which ensures reliable operation. The electric chain hoist is equipped with a main contactor that enhances safety, and an electromagnetic spring-loaded brake that securely holds the load even in the event of a power failure. The optimized cooling of the motor housing ensures improved performance and longevity. With an IP 55 protection rating, the device is protected against dust and splashing water, making it ideal for use in demanding environments.
- Integrated limit switch for highest and lowest hook positions to extend the lifespan of the motor and gearbox
- Safety slip clutch that ensures a secure connection between the load and the brake
- Duty cycle of 50% at a speed for efficient operation
- Optimized motor housing for improved cooling and performance
- IP 55 protection rating against dust and splashing water, suitable for demanding applications.
10. Yale Spur gear pulley block 10m VS III 1000-1
The Yale VS III spur gear hoist is a powerful lifting device designed for a maximum load capacity of 1000 kg. With a lifting height of 10 meters, this equipment provides an efficient solution for various lifting and transport tasks in workshops and industrial applications. The construction of the hoist includes a galvanized load chain, which not only ensures durability but also offers additional corrosion protection. The hand chain guide has been optimized to ensure smooth operation of the hand chain, minimizing the risk of jamming and misalignment. The use of ball and needle bearings in the side plates and gear cover ensures flawless rotation of the load chain wheel and drive pinion. Thus, the spur gear hoist is not only robust but also user-friendly and efficient to handle.
- Optimized hand chain guide for smooth operation
- Ball and needle bearings for improved rotation
- Reinforced handwheel cover for increased stability
- Precisely machined guide rollers for optimal load chain flow
- Additional corrosion protection through galvanized components.
