Best selling Mobile power distributors from Eaton
On this page you'll find a ranking of the best Eaton products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eaton Main switch
The Eaton IS-80/3 main switch is a reliable system power supply device designed for DIN rail mounting. With a rated current of 80 A and a rated voltage of up to 415 V, this main switch offers an effective solution for isolating and controlling electrical circuits. The design complies with international standards IEC/EN 60947-3 and ensures high wear resistance of the contacts. The switch is equipped with three NO contacts and offers an IP40 protection rating, which protects it against dust and splash water. The operating conditions are suitable for temperatures between -5 °C and 40 °C, making it suitable for a wide range of applications. The main switch is also provided with a special toggle colour in black for easy installation and handling. High wear resistance of the contacts. Snap-action switching for improved performance. Compatible with Xpole protective switching devices. Forced disconnection not required in accordance with DIN VDE 0113. Terminal cross-section of up to 50 mm².
2. Eaton 125A 3p Isolator flush mounting,lockable
The Eaton safety/main switch P5-125/EA/SVB is a reliable and powerful device designed for system power supply. With a rated current of 125 amperes and a maximum operating voltage of 690 volts, this load disconnector is ideal for various industrial applications. It features a robust construction and is designed for front panel mounting, allowing for easy installation. The switch functions as a main switch as well as a maintenance and repair switch, making it a versatile solution for power distribution. Additionally, it is equipped with an emergency stop function that ensures extra safety in critical situations. The IP65 protection rating ensures that the device can be used in demanding environments, while the option to lock the operating element provides additional safety.
- Maximum rated operational power of 45 kW at AC-23, 400 V
- Conditional rated short-circuit current withstand of 30 kA
- Suitable for front mounting with 4-hole installation
- Door coupling rotary drive for easy operation
- Protection class IP65 for use in demanding environments.
3. Eaton Electric GmbH Main switch P3-63/I4/SVB/HI11
The Eaton main switch P3-63/I4/SVB/HI11 is a versatile and reliable device designed for system power supply. With a maximum rated operating voltage of 690 V and a rated continuous current of 63 A, this main switch is suitable for various applications in industrial and commercial environments. It serves multiple functions, including acting as a maintenance and repair switch, as well as a safety switch and emergency stop device. The robust construction and IP65 protection rating ensure high resistance to dust and water, making it ideal for indoor use. The switch is equipped with a door coupling rotary drive and can be locked for added safety. With a switching capacity of up to 30 kW at 400 V, this main switch is a reliable choice for demanding applications.
- Maximum rated operating voltage of 690 V
- IP65 protection rating for high durability
- Versatile functions: main switch, maintenance/repair switch, safety switch
- Switching capacity of up to 30 kW at 400 V
- Door coupling rotary drive with locking option.
4. Eaton Switch-disconnector, DMV, 2000 A, 3-pole, STOP function optional, without rotary handle and drive
The DMV load disconnect switch from Eaton is a high-performance device designed for system power supply. With a rated current of 2000 A and a rated voltage of 690 V, this 3-pole switch is ideal for use in industrial applications. The design is intended for installation and offers an IP20 protection rating, making it suitable for indoor use. The switch is equipped with visible contacts, which facilitates maintenance and inspection. An optional STOP function enhances safety and operational flexibility. The load disconnect switch complies with the IEC/EN 60947 and VDE 0660 standards, underscoring its reliability and quality. Additionally, the auxiliary switch contact is retrofittable, providing extra customization options. The delivery also includes the necessary connection accessories, simplifying installation.
- Rated current of 2000 A and rated voltage of 690 V
- 3-pole design for versatile applications
- Optional STOP function for increased safety
- Retro-fittable auxiliary switch contact for additional flexibility
- Complies with IEC/EN 60947 and VDE 0660 standards.
Mobile power distributors
EUR2099,12
Eaton Switch-disconnector, DMV, 2000 A, 3-pole, STOP function optional, without rotary handle and drive

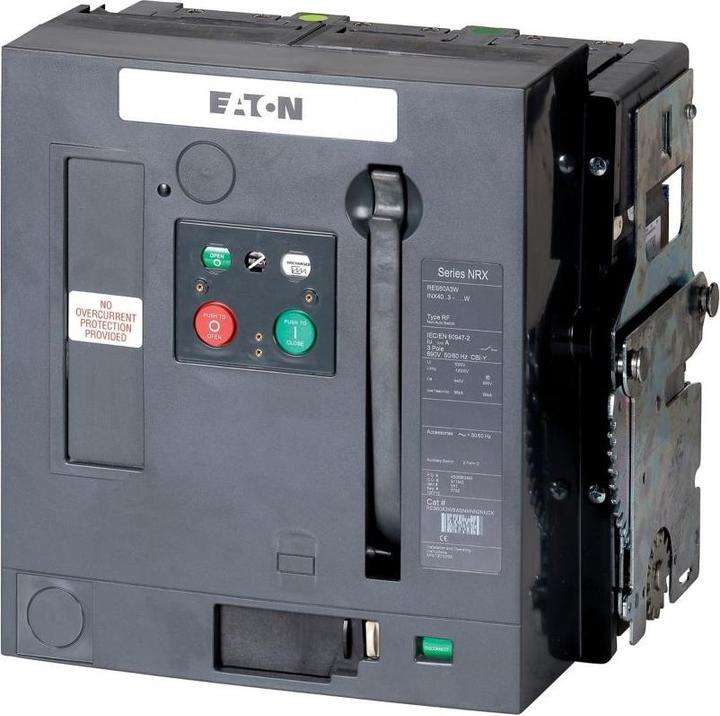

5. Eaton 184068
The Eaton INX40N3-20W-1 is a powerful 3-pole load disconnect switch designed for applications with a rated current of up to 2000 Amperes. This device provides a reliable solution for disconnecting electrical loads and is intended for use in various industrial environments. With a rated voltage of 690 Volts, the switch ensures safe and efficient power supply. The IP31 protection rating guarantees that the device is protected against dust and splashes, enhancing its durability and reliability in demanding conditions. The switch features a compact design that allows for easy installation and seamless integration into existing systems. The use of high-quality materials and compliance with international standards, such as IEC, highlight the product's quality and safety.
- Rated current of 2000 A for high performance requirements
- IP31 protection rating for additional protection against environmental influences
- Input voltage of 690 V for versatile applications
- RoHS certification for environmentally friendly materials.

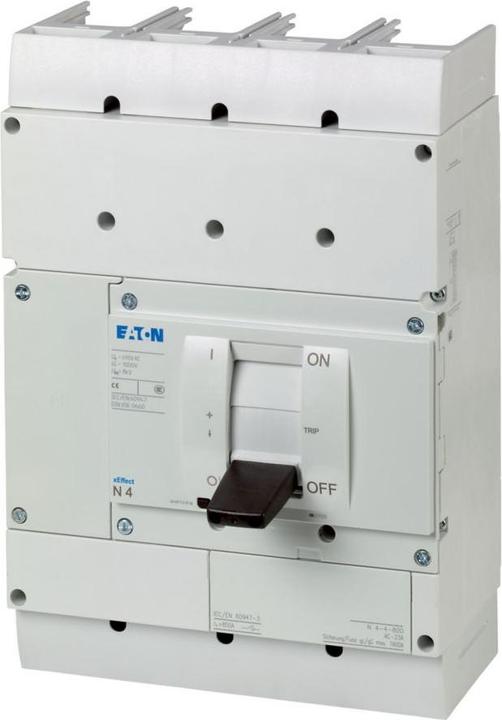

6. Eaton NS4-800-NA
The NS4-800-NA from Eaton is a highly advanced load disconnect switch designed for fixed installation. With a rated current of 800 Amperes and a rated voltage of up to 690 Volts, this device provides a reliable and safe power supply solution for industrial applications. The switch is equipped with a toggle lever actuator that allows for easy handling. The IP20 protection rating ensures that the switch is suitable for use in protected environments. The NS4-800-NA meets UL/CSA and IEC standards and approvals, highlighting its quality and safety. With a high switching capacity of up to 65 kA at 480Y/277 V and 42 kA at 600Y/347 V, this load disconnect switch is ideal for demanding applications where high electrical loads need to be switched.
- High switching capacity of up to 65 kA at 480Y/277 V
- Meets UL/CSA and IEC standards
- Fixed installation with screw connection
- IP20 protection rating for protected environments.

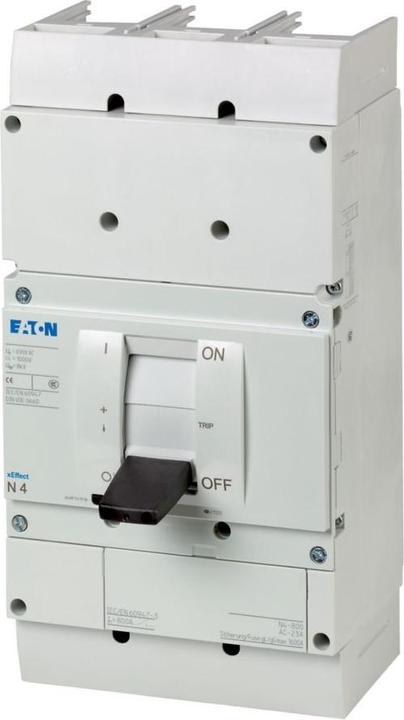

7. Eaton N4-4-800-S15-DC
The isolating switch N..DC in the special version for up to 1500 VDC can be used as 1- or 2-pole. It meets the isolation requirements for grounded IT networks as well. Accessories such as bridge kits, connection terminals, and door coupling rotary handles allow for individual installation in various distribution systems. Auxiliary switches, voltage triggers, and remote drives enable signaling and automation. Notes: Main switch properties including forced disconnection according to IEC/EN 60204 and VDE 0113. Isolation properties according to IEC/EN 60947-3 and VDE 0660. Connection technology: For 2-pole switching, a series connection according to the specified connection options is required. Switches cannot be combined with plug/retractable technology and/or rear connections. In ungrounded networks over 1000 VDC, the installation must be carried out in such a way that the probability of a double earth fault is negligibly low.
8. Eaton EATO switch disconnector
The EATO load disconnect switch is an open electrical switching device designed for fixed installation. With a rated current of 800 amperes and a rated voltage of 690 volts, this switch is suitable for various indoor applications. It provides a reliable means of disconnecting electrical loads and is equipped with an IP31 protection rating, offering some protection against dust and water. The load disconnect switch features a push button for easy operation. The 3-pole design ensures effective separation of electrical connections, which is important for safety and efficiency in electrical installations.
- Rated current of 800 A for high power requirements
- Rated voltage of 690 V for versatile applications
- IP31 protection rating for limited protection against dust and water
- 3-pole design for effective load disconnection.

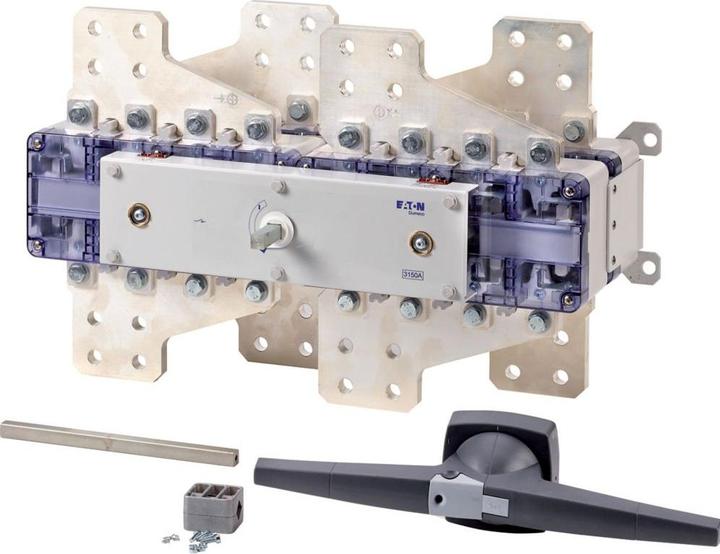

9. Eaton 6084848
The DMV load isolator switch is a reliable device designed for use in various industrial applications. With a rated current of 3150 Amperes and a rated voltage of up to 690 Volts, this switch offers high performance and safety. Its design is suitable for installation, allowing for flexible setup. The switch features a gray rotary handle and a drive shaft that ensure easy operation. The visible contacts provide clear visibility and facilitate maintenance. The load isolator switch complies with the standards IEC/EN 60947 and VDE 0660, highlighting its reliability and safety in various applications. The delivery includes connection accessories, enabling immediate installation. The protection classes IP00 and IP20 with terminal cover offer additional protection for indoor use.
- High rated operational power of 1400 kW at AC-23A
- Easy operation with gray rotary handle
- Visible contacts for better maintenance visibility
- Complies with important standards such as IEC/EN 60947 and VDE 0660
- Includes connection accessories for immediate installation.
10. Eaton Main switch P3-63/M4/K2-PR/N
The main switch P3-63/M4/K2-PR/N from Eaton is a reliable and safe device designed for system power supply. With a rated current of 63 amperes and a rated voltage of up to 690 volts, this switch is ideal for use in industrial applications. Its robust design allows for easy integration into control cabinet solutions with a depth of 400 mm. The switch features a STOP function that provides an emergency stop capability for quick response in case of emergencies. The red rotary handle and yellow locking ring ensure clear visibility and user-friendliness. Additionally, the switch is equipped with an IP65 protection rating, which protects it from dust and water, making it suitable for indoor use. The option to retrofit an auxiliary switch contact enhances the device's flexibility and adaptability to specific requirements.
- 3-pole + N for versatile applications
- Lockable in the OFF position for added safety
- IP65 protection rating for optimal protection against environmental influences
- Intermediate design for easy installation
- Compliance with IEC/EN 60947 standards for high safety standards.
