Best selling Mobile power distributors from Siemens
On this page you'll find a ranking of the best Siemens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Siemens DIN rail power supply (DIN rail
The basis of the modular concept consists of 24 V basic devices with output currents of 5 A, 10 A, 20 A, and 40 A. These devices already come with extensive features and are suitable for worldwide use in various power supply networks due to their universal wide-range inputs.
2. Siemens DIN-rail power supply unit (DIN-rail
The LOGO!Power mini power supplies in the design of the LOGO!8 modules offer a lot of power in the smallest space. The good efficiency over the entire load range and the low power loss in no-load operation guarantee efficient operation. The wide-range input for single-phase networks and for DC networks, as well as the power reserve when switching on capacitive loads, meet the requirements of numerous applications. The wide temperature range and extensive certifications also enable universal use. The reliable power supplies with their flat stepped housing can be integrated in a highly flexible manner - for example in installation distributors. Regardless of the industry, regardless of the requirement - Siemens offers reliable and efficient power supplies for every system.

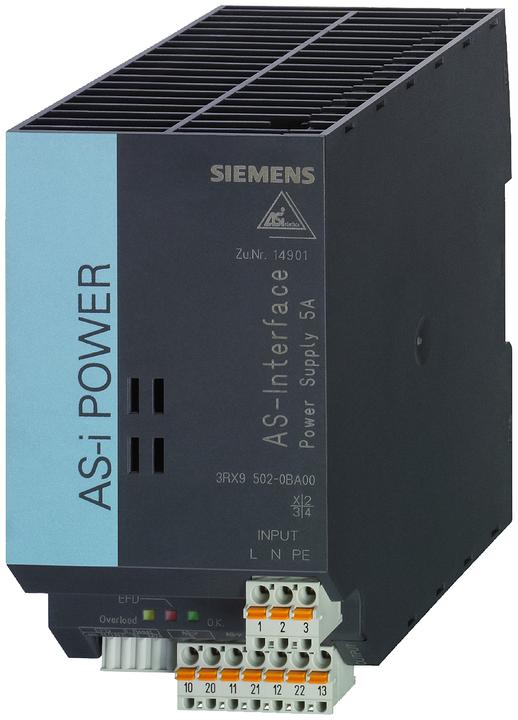

3. Siemens Power supply unit ASI 3RX950 series 120/230Vac 5A
Siemens Digital Industry AS-Interface Power Supply 3RX9502-0BA00
Manufacturer: Siemens Digital Industry
Description: AS-Interface Power Supply IP20, 30VDC, 5A
Type: 3RX9502-0BA00
Input Voltage at AC 50 Hz: 85..132 V
Input Voltage at AC 60 Hz: 85..132 V
Input Voltage at DC: 0 V
Type of Input Voltage: AC
Max. Input Current at AC 50 Hz: 1.5 A
Max. Input Current at AC 60 Hz: 2.7 A
Output Voltage at AC 50 Hz: 0 V
Output Voltage at DC: 29.5..31.6 V
Type of Output Voltage: DC
Max. Output Current at DC: 5 A
Redundancy Capability: no
Suitable for Safety Functions: no
Width: 70 mm
Height: 125 mm
Depth: 125 mm
Additional Details: AS-i Power 5A AC 120V/230V AS-Interface Power Supply, IP20 IN: AC 120 V / 230 V OUT: AS-i, 5A (DC 30 V), IP20 with integrated earth fault detection, with integrated overload detection with AS-i data decoupling. EAN: 4011209641464.
4. Siemens DIN rail power supply unit (DIN rail)
Compact 3-phase power supply with 90 mm width. The advantages at a glance:
- Regulated power supply for highest demands
- Power boost with 3-fold rated current
- Operating status via 3 LED indicators
- Selectable short-circuit behavior: automatic start-up or memorizing shutdown
- Parallel connection for power increase possible
- Space saving
- Wide range input 3 AC 340 to 550 V for worldwide use
- 1.5 times extra power for switching on loads with high inrush current
- Up to 91.5% efficiency
- Integrated signal contact "DC 24 V o.k.".
5. Siemens Main switch

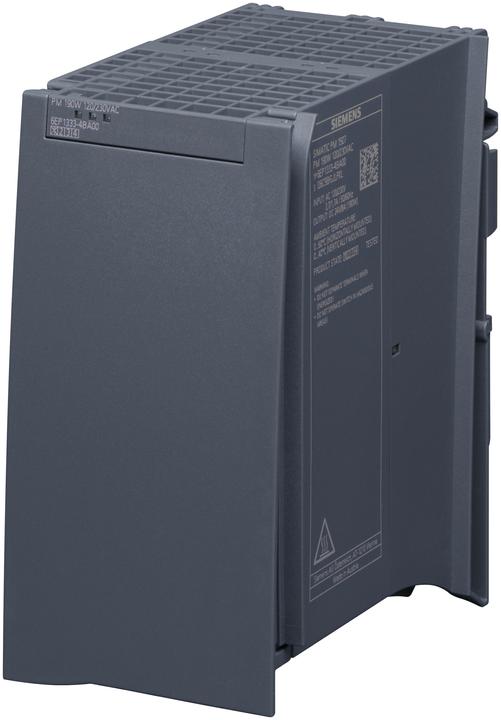

6. Siemens SIMATIC PM 1507 24V/8A PSU
AC or DC input voltage: AC
AC or DC output voltage: DC
Input voltage min.: 85V AC
Input voltage max.: 132V AC
Output voltage min.: 24V DC
Output voltage max.: 24V DC
Output current: 8A
Rated power: 192W
Number of outputs: 1
Electrical phases: 1
Range: SIMATIC design
Height: 147mm
Width: 75mm
Series: SIMATIC PM-1507
The SIMATIC PM 1507 is a single-phase load power supply (PM = Power Module) with automatic range selection for the input voltage, making it an optimal complement for the SIMATIC S7-1500 PLC. It features PM 70 W and PM 190 W load power supply modules for 120/230 V AC supply input and output circuits (load circuits) as well as sensors and actuators.
Connection to all 1-phase mains (120 V AC / 230 V AC) is facilitated by automatic switching. It includes short-term mains buffering, with an output voltage of 24 V DC limited to a maximum of 28 V DC to prevent damage to 24 V consumers if the input voltage is too high. The unit provides 50% "extra power" for 5 seconds per minute to compensate for short-term overloads, such as when switching on 24 V loads.
Parallel connection of two load power supplies is possible for improved performance. Rated input voltage is 120/230 V AC, 50/60 Hz with automatic voltage range switching. Rated output current is 70 W or 190 W, with output power failure buffering.
7. Siemens 6EP3343-0SA00-0AY0Power supply SITOP PSU3600 flexi 1-p
Siemens Digital Industrial Power Supply 6EP3343-0SA00-0AY0
Manufacturer: Siemens Digital Industry
Designation: Power Supply DC 3-52 V
Type: 6EP3343-0SA00-0AY0
Voltage Type of Supply Voltage: AC/DC
1st Output Voltage: 3..52 V
Max. Output Current 1: 10 A
Adjustable Output Voltage: yes
Nominal Output Voltage 1: 24 V
Nominal Output Current 1: 10 A
Short-Circuit Proof: yes
Rated Supply Voltage at DC: 110..220 V
Regulated Output Voltage: yes
Power Output: 120 W
Stabilized: yes
Type of Electrical Connection: Screw Connection
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Rack Installation: yes
Installation Width: 42 mm
Installation Height: 225 mm
Direct Mounting Possible: no
Width: 42 mm
Height: 125 mm
Depth: 135 mm
Protection Class (IP): IP20
Siemens Digital Industrial Power Supply 6EP3343-0SA00-0AY0: Additional Details SITOP PSU3600 flexi
Regulated Power Supply
Input: AC 120-230 V
Output: DC 3-52 V/10 A, 120 W
The single-phase power supply SITOP PSU3600 flexi features a flexibly adjustable output voltage ranging from 3 to 52 V. It is used in all application areas where a special voltage deviating from 24 V is required. Not only is conventional use as a power supply conceivable. The ability to dynamically change the output voltage during operation, for example, for speed control of DC motors/fans or for voltage adjustment in test benches, as well as numerous special functions such as sense lines and current monitoring, open up a wide range of applications. No matter the industry, no matter the requirement - Siemens offers reliable and efficient power supplies for every system.
EAN: 4025515155478.

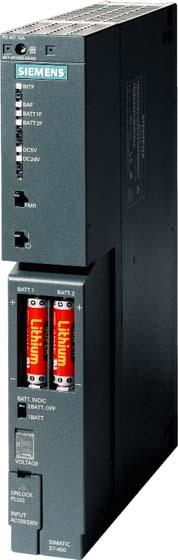

8. Siemens Power supply
Siemens power supply PS407.
9. Siemens SITOP Smart - Single Phase 24V/20A
Sitop PSU100S 20 A regulated power supply. Input: AC 120/230 V, Output: DC 24 V/20 A. The single-phase Sitop smart power supplies are universal and powerful standard power supplies for machine and plant engineering. Despite their compact design, they offer excellent overload behavior: thanks to Extra-Power of 150%, high-consumption devices can be easily switched on, and the continuous overload capability of 120% provides performance reserves for expansions. The high efficiency ensures low energy consumption and minimal heat generation in the control cabinet. To further increase the availability of 24 V, the Sitop smart power supplies can be combined with buffer, DC UPS, redundancy, and selectivity modules. No matter the industry, no matter the requirement - Siemens offers reliable and efficient power supplies for every system.
10. Siemens Top-hat rail power supply unit (DIN rail) 6EP1336-1LB00
The Siemens 6EP1336-1LB00 DIN rail power supply is a reliable system power supply designed for indoor use. With a rated power of 480 watts and an output current of 20 amperes, this power supply provides a stable and regulated power supply for various applications. It is suitable for mounting on a DIN rail and features a high efficiency of 92%. The device supports input voltages of 100 to 240 volts AC and delivers an output voltage of 24 volts DC. The IP20 protection rating ensures that the power supply is suitable for use in protected indoor areas. With a compact design and a weight of 1.8 kg, it is easy to install and integrate. The included quick installation guide simplifies commissioning and connection.
- Input voltage: 100-240 V AC
- Output voltage: 24 V DC
- High efficiency of 92%
- IP20 protection rating for indoor applications
- Mounting on DIN rail.
