Best selling Mobile power distributors from Wago
On this page you'll find a ranking of the best Wago products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Wago Top-hat rail power supply unit (DIN rail) Contacts
The Wago DIN-Rail power supply is a reliable system power supply designed for use in control cabinets. With an output voltage of 24 V DC and a nominal current of 20 A, this power supply delivers a power of 480 W, suitable for various applications in automation technology. The primary switched-mode power supply ensures high efficiency and stability, while natural convection contributes to self-cooling. The device is designed for indoor use and provides galvanically isolated output voltage that complies with safety standards according to UL 60950-1 and EN 60204. With the capability for parallel and series connection, the power supply is versatile and can be adapted to different requirements.
- Primary switched-mode power supply with high efficiency
- Self-cooling through natural convection
- Galvanically isolated output voltage (SELV)
- Capable of parallel and series connection
- Approved according to GL for enhanced safety.
2. Wago Top-hat rail power supply unit (DIN rail)
Primary switched power supply, 3-phase with TopBoost. Secondary fuse protection with circuit breakers is possible. Encapsulated for control cabinet installation.
3. Wago Electronic circuit breaker
The WAGO EPSITRON® 787-862 Electronic Circuit Breaker is a highly advanced device designed for reliable power supply in various applications. With an input voltage of 24 V DC and a maximum current of 10 A, this circuit breaker offers an effective solution for monitoring and controlling electrical systems. It is equipped with four channels that allow for flexible use. The parameterizable functions and the option for time-delayed activation of the channels make it particularly adaptable to different requirements. Additionally, the circuit breaker features a communication interface that enables easy integration into existing systems. Current and voltage monitoring is displayed on an LC display, ensuring user-friendly operation. The WAGO 787-862 is ideal for indoor use and offers high safety with its protection class IP20.
- Parameterizable electronic circuit breaker with 4 channels
- Time-delayed activation of channels
- Potential-free signaling contact for additional safety
- Current and voltage monitoring via LC display
- RS-232 interface for communication capability.

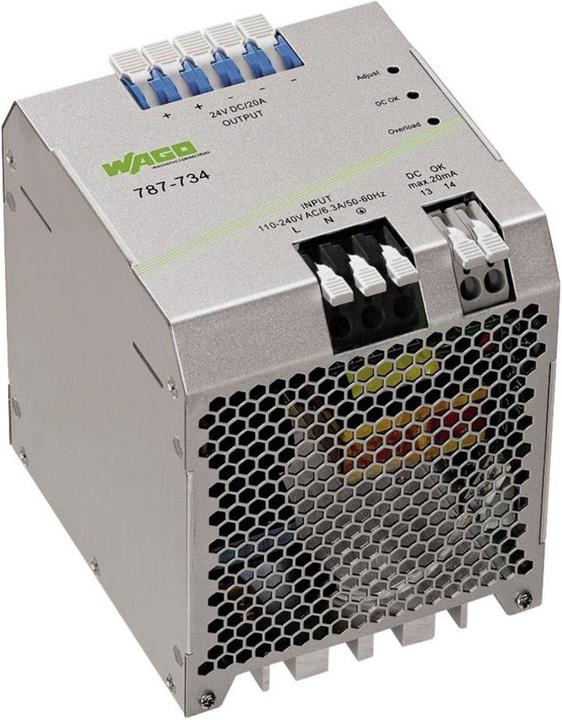

4. Wago DIN rail power supply (DIN rail
The Wago DIN rail power supply, model 787-734, is a primary switched power supply specifically designed for cabinet installation. With an output voltage of 24 V DC and a maximum output current of 20 A, this power supply provides a total power of 480 W. It is suitable for indoor use and features a encapsulated design that ensures reliable functionality. Passive cooling is achieved through natural convection, making horizontal installation easier. The device is equipped with PCB terminals that allow for quick and tool-free connections. Additionally, it provides a DC-OK status indication via a bounce-free switching optocoupler. The galvanically isolated output voltage meets safety standards according to UL 60950-1 and EN 60204, making it a safe choice for various applications.
- Self-cooling through natural convection in horizontal installation position
- Quick and tool-free connection via PCB terminals with lever
- DC O.K. indication via bounce-free switching optocoupler
- Can be connected in parallel for flexible applications
- Galvanically isolated output voltage according to UL 60950-1 and EN 60204.

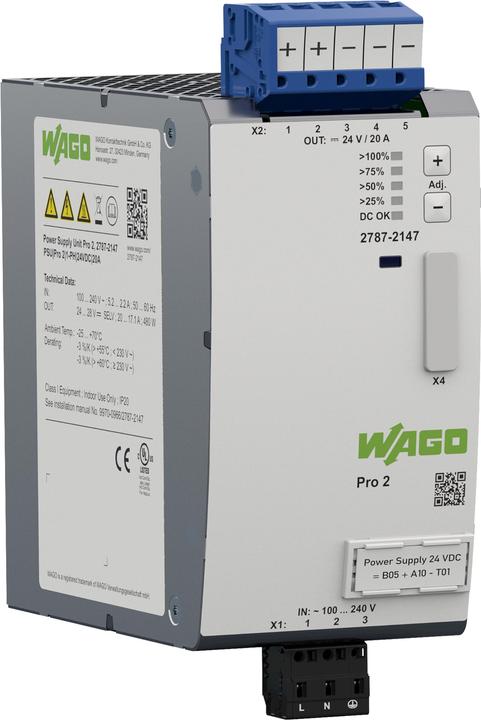

5. Wago Pro 2 DIN Rail Power Supply 20 A 480 W
The WAGO Pro 2 DIN rail power supply is a powerful system power supply designed for use in industrial applications. With a rated power of 480 watts and an output current of 20 amps, this single-phase power supply provides a reliable power source with an output voltage of 24 V DC. Integrated features like TopBoost and PowerBoost allow for flexible adaptation to varying load conditions, while the configurable overload behavior ensures high operational safety. The device's communication capability enables easy integration into existing systems and monitoring of operational status. The power supply is suitable for mounting on DIN rails and offers a self-cooling function through natural convection, simplifying installation and operation.
- TopBoost and PowerBoost for flexible load adaptation
- Configurable digital input and output signals
- Communication interface for easy configuration and monitoring
- Can be connected in parallel and in series for extended applications
- Galvanically isolated output voltage according to EN 61010-2-201/UL 61010-2-201.
6. Wago Electronic circuit breaker EPSITRON®
Electronic Circuit Breaker
8-channel
Input voltage DC 24 V
Adjustable 0.5 to 6 A
Active current limitation
Communication capable
Features:
Space-saving electronic circuit breaker with 8 channels. Rated current adjustable from 0.5 to 6 A for each channel via sealable selector switches. Active current limitation. Inrush capacity over 65000 µF per channel. Each channel has a three-color illuminated button for convenient switching on and off, resetting, and easy on-site diagnostics. Delayed activation of the channels. Triggered alarm (summation signal). Status indication for each individual channel via pulse sequence. Remote input for reactivating all triggered channels or for switching any channels on and off using pulse sequence.
7. Wago 2789-9052 Communication module
The WAGO 2789-9052 communication module is a highly advanced power supply system designed for a variety of applications in automation technology. It offers a reliable and efficient solution for communication within systems. With a compact design and robust construction, this module is ideal for use in industrial environments. The use of the RJ45 connector type allows for easy integration into existing networks, while the IP20 protection rating provides a certain level of protection against dust and contact. The module supports input voltages from 4.5 V to 5.5 V, making it versatile. It is an excellent choice for professionals who need a reliable and powerful communication solution.
- Input voltage of 4.5 V to 5.5 V for flexible applications
- RJ45 connector type for easy network connections
- IP20 protection rating for basic protection in industrial environments.

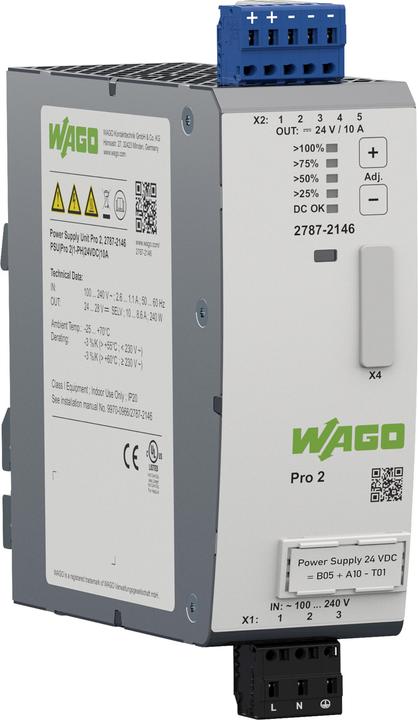

8. Wago Power supply
WAGO GmbH & Co. KG Power Supply PRO 2 2787-2146
Manufacturer: WAGO GmbH & Co. KG
Designation: Power Supply PRO 2
Type: 2787-2146
Voltage Type of Supply Voltage: DC
1st Output Voltage: 24..28 V
Max. Output Current: 10 A
Output Voltage Adjustable: Yes
Rated Output Voltage: 24 V
Rated Output Current: 10 A
Short-Circuit Proof: Yes
Rated Supply Voltage at AC 50 Hz: 90..264 V
Rated Supply Voltage at AC 60 Hz: 90..264 V
Rated Supply Voltage at DC: 130...373 V
Output Voltage Regulated: Yes
Stabilised: Yes
Electrical Connection Type: Spring-Loaded Connection
Rail Mounting Possible: Yes
Wall Mounting Possible: No
Suitable for In-Line Mounting: No
Width in Pitch Units: 4
Direct Mounting Possible: No
Width: 50 mm
Height: 130 mm (without connectors)
Depth: 130 mm
Suitable for Safety Functions: No
Protection Class (IP): IP20
Power Supply Pro 2 1-Phase
Output Voltage: DC 24 V
Output Current: 10 A
TopBoost + PowerBoost Communication-Enabled
EAN: 4055143907330.
9. Wago Universal isolating amplifier 857-403 1pc.
The commutation of the measurement ranges is done in a calibrated manner. The power supply voltage of the device is 24 V DC. This can be easily and inexpensively connected via the lathe mounting pole. A green LED located in the façade signals its operation.
10. Wago DIN-rail power supply unit (DIN-rail
Primary switched-mode power supply for DALI module 753-647; single-phase; output voltage DC 18 V; output current 1.1 A. The primary switched-mode power supply 787-1007 has been specifically designed to power the DALI multi-master terminal 753-647. The rail-mounted housing in a modular format is 54 mm wide and has an input voltage range of AC 85 to 264 V (DC 120 to 300 V). The output voltage is DC 18 V, and the maximum output current is 1100 mA, allowing multiple DALI multi-master terminals to be powered in parallel. The maximum current per DALI branch is internally limited to 200 mA in the DALI multi-master terminal. This primary switched-mode power supply is capable of powering up to 5 DALI multi-master terminals 753-647. It is prepared for devices and systems of protection class II. Self-cooling through natural convection in a horizontal installation position. Step profile, optimal for installation distributors or system distributors.
