Best selling Motion sensors from RZB
On this page you’ll find a ranking of the best Motion sensors from RZB. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. RZB 982956.002
RZB Sensor for Zhaga Socket 982956.002
Manufacturer: RZB
Description: Sensor for Zhaga Socket white
Type: 982956.002
Design: Multisensor
Width: 63 mm
Height: 57 mm
Depth: 91.5 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
The RZB Sensor for Zhaga Socket 982956.002 is a high-range passive infrared light and motion sensor (PIR) with a rectangular detection area. It connects via the Zhaga socket (book 18 Ed.2) to the DALI bus. The DALI-2 multisensor transmits sensor data through the wired DALI network to the controller. Power supply is provided via the DALI bus. Constant light control is possible. Range and sensitivity are adjustable. The housing is made of non-flammable, halogen-free plastic (polycarbonate).
For installation heights of 4 - 14 m with a rectangular detection area of 30 x 4 m. The integrated light sensor has an operating range of 4 - 1000 lx.
Example of use: Presence detection and constant light control in warehouses and high-bay storage. Application only with LINEDO sensor module with Zhaga socket without integrated power supply. Module must be ordered separately.
EAN: 4051859949473.
2. RZB PIR-BWM+Dämmschalter
Casambi Smart+Free Bluetooth Passive Infrared Light and Motion Sensor (PIR) with radial presence and motion detection. Connection via the Zhaga socket (Book 18 Ed.2) to the DALI bus. Power supply is provided from the DALI line. Suitable for mounting heights from 2.8 to 14 m. The maximum diameter of the detection area is 36 m, allowing it to monitor an area of up to 1000 m². The integrated light sensor has an operating range of 4 to 1000 lx. Constant light control is possible. The detection area can be extended with additional Casambi sensors. Communication between the sensor and other Casambi devices is via Bluetooth. Configuration and control can be done using an Android/iOS device. The app is available for free download. The housing is made of non-flammable, halogen-free plastic (polycarbonate). Example application: presence detection and constant light control for work and office areas. Use only with sensor module with Zhaga socket and integrated DALI power supply. Module must be ordered separately.

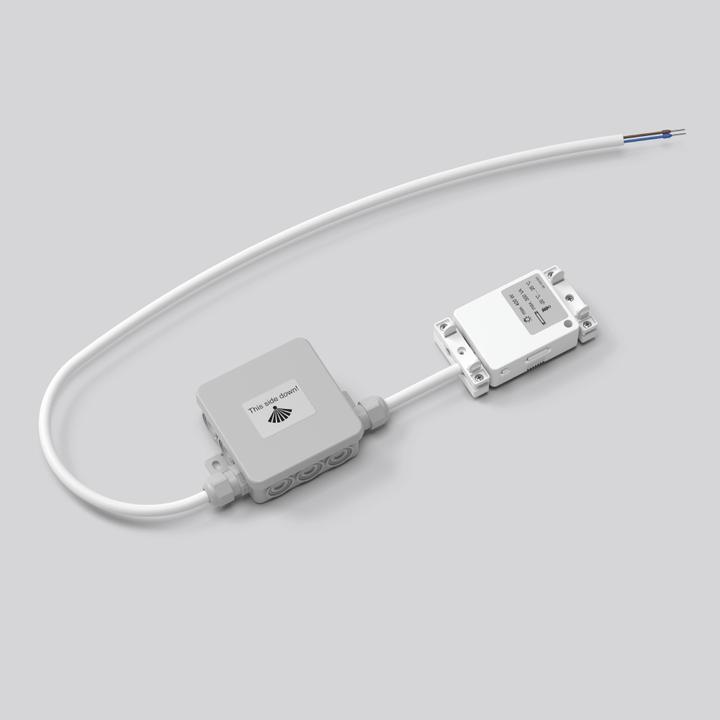

3. RZB HF motion detector
The HF motion detector from RZB is a highly advanced device designed for the reliable detection of movements in various environments. This sensor operates at a frequency of 5.8 GHz and offers a range of up to 10 meters, making it ideal for use in large spaces. The motion detector is housed in a separate device box, allowing for easy installation. The functional parameters can be adjusted via buttons, enabling users to set the hold time between 5 seconds and 30 minutes in seven levels. The detection angle ranges from 30° to 150°, allowing for flexible adaptation to different requirements. It is important to note that the sensor is not suitable for metal ceilings, which should be considered during installation.
- Adjustable hold time from 5 seconds to 30 minutes in 7 levels
- Detection angle from 30° to 150° for flexible application
- Range of up to 10 meters, adjustable in up to 5 levels
- Easy installation via 5-pole terminal block with strain relief.
4. RZB 982955.002
RZB Sensor for Zhaga Socket 982955.002
Manufacturer: RZB
Designation: Sensor for Zhaga Socket white
Type: 982955.002
Execution: Multisensor
Width: 63 mm
Height: 57 mm
Depth: 91.5 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
The RZB Sensor for Zhaga Socket 982955.002 is a powerful 360° passive infrared light and motion sensor (PIR) with radial presence and motion detection. It connects via the Zhaga socket (book 18 Ed.2) to the DALI bus. The DALI-2 multisensor transmits the sensor data to the controller through the wired DALI network. Power supply is provided via the DALI bus.
Constant light control is possible, and both the range and sensitivity are adjustable. The housing is made of non-flammable, halogen-free plastic (polycarbonate) and is suitable for mounting heights from 2.8 to 14 m. The maximum diameter of the detection area is 36 m, allowing it to monitor an area of up to 1000 m². The integrated light sensor has a working range of 4 to 1000 lx.
Example of use: Presence detection and constant light control for work and office areas. Application only with LINEDO sensor module with Zhaga socket without integrated power supply. Module must be ordered separately.
EAN: 4051859949466.
5. RZB 982813.002
RZB PIR sensor 982813.002
Manufacturer: RZB
Designation: PIR sensor white
Type: 982813.002
Design: Multisensor
Height: 76 mm
Diameter: 101 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
RZB PIR sensor 982813.002 is a DALI-2 certified passive infrared sensor for detecting movement and brightness. The mounting height ranges from 5 to 16 m, with a presence detection range of 30 m x 19 m. It features an external adjustable telescopic light sensor for application-specific light measurement. Power is supplied from the DALI line, eliminating the need for a separate power supply. The housing is made of non-flammable, halogen-free plastic (polycarbonate). EAN: 4051859745389.

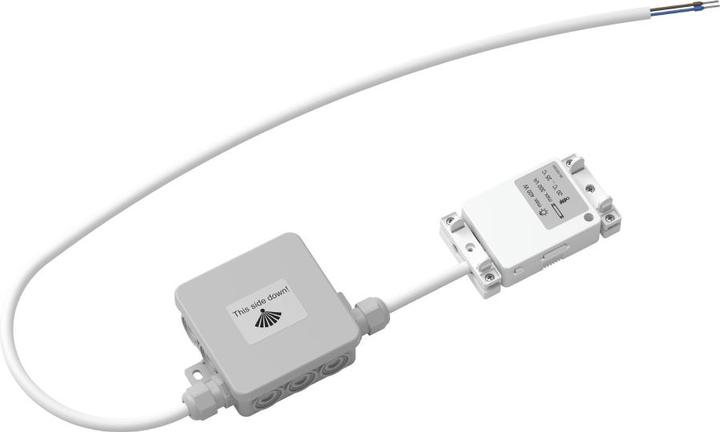

6. RZB Motion detector
HF motion detector in a separate device box. The connection box includes strain relief, with a five-pole connection terminal connected to the HF motion sensor by a five-core, 150 mm long connection cable. There is a 2-pole cable between the motion detector and the light, 600 mm long with open wire ends.
Functional parameters: HF motion detector EASY HF detector 5.8 GHz. Hold time: 5 seconds to 15 minutes, adjustable in 4 stages. Detection angle: 30° to 150°. Range: up to 8 meters, adjustable in up to 4 stages. Adjustable in the device box. Brightness sensor without function.

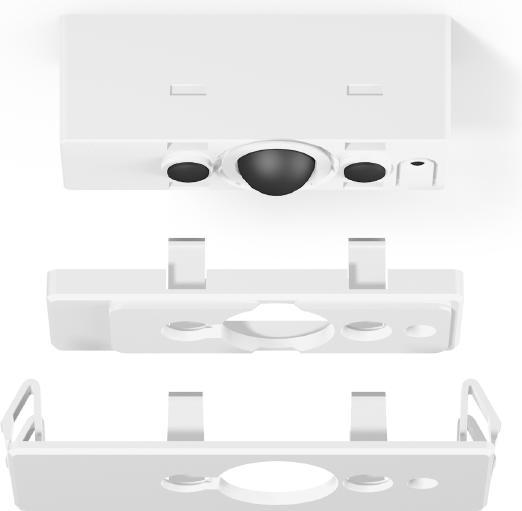

7. RZB Light / presence sensor
RZB DALI sensor 982757.002
Manufacturer: RZB
Designation: DALI sensor
Type: 982757.002
Design: Multisensor
Width: 15 mm
Height: 20 mm
Depth: 48 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
RZB DALI sensor 982757.002 is a DALI-2 certified passive infrared sensor (PIR) for detecting movement and brightness. The mounting height is between 2-5 m. The presence detection range is adjustable between 40° and 90° via an integrated shutter. The light sensor operating range is 0-800 lx (measured at the sensor). It allows direct connection to the DALI line, with power supplied from the DALI line, eliminating the need for a separate power supply. It features a function display with a two-colour LED. The sensor can be ceiling recessed or ceiling surface-mounted with accessories. It has a modular design, so please order recessed or surface-mounted housing separately. The housing is made of non-flammable, halogen-free plastic (polycarbonate). EAN: 4051859681533.
