Best Klauke products in the Pressing tools category
On this page you'll find a ranking of the best Klauke products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

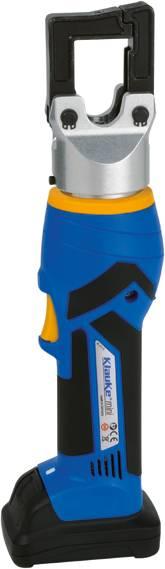

1. Klauke EK WF 120 ML
Closed head. Simple and safe: one-button operating concept for controlling all tool functions. Comfortable and safe one-handed operation due to ergonomic 2-component plastic housing with soft inlay. Fatigue-free working due to low dead weight. Automatic return after completion of the work cycle. Manual return stop (MRS) for position control with multiple pressings. Maintenance indicator by means of LED.
2. Klauke K05D

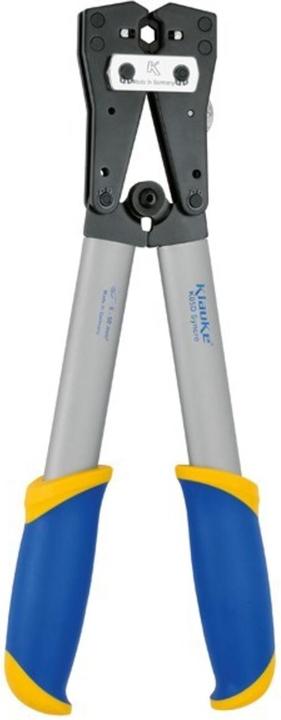

Klauke Crimping Tool K05D
Manufacturer: Klauke
Designation: Crimping Tool 6-50 mm²
Type: K05D
Suitable for: Cable lugs and connectors
Crimping shape: Hexagonal
Cross-section: 6-50 mm²
Length: 390 mm
With locking mechanism (for mechanical tools): no
Operation/actuation: mechanical
Interchangeable inserts: no
With automatic return: no
Klauke Crimping Tool K05D: additional details
Crimping tool for crimp cable lugs and connectors, DIN 46235/DIN 46267 Part 1 6-50 mm². Energy-saving and low-maintenance mechanical drive. Features rotating profile discs. Accurate cross-section assignment through permanent marking on the profile discs. Suitable for DIN crimp cable lugs and connectors.
3. Klauke Crimping tool 10-240qmm, 1000V EKM60IDISM
The Klauke pressing tool EKM60IDISM is a state-of-the-art, battery-hydraulic tool designed for a variety of applications. With a pressing range of 10 to 240 mm² and a pressing force of up to 60 kN, it provides an efficient solution for crimping fine-stranded conductors according to VDE 0295 Class 5. The innovative design features a 2-stage telescopic cylinder, allowing for a compact form factor and lightweight construction, which facilitates handling. The electronic control monitors the crimping process and ensures high user safety. Additionally, the tool is equipped with integrated pressure measurement that provides visual and acoustic signals in case of errors. The powerful 18V Li-Ion battery ensures high capacity and maximum working speed, while the ergonomic housing with soft inserts allows for fatigue-free operation. The LED work area lighting and automatic return after the crimping process enhance user-friendliness and efficiency.
- Innovative 2-stage telescopic cylinder for a wide crimping range
- Electronic control with pressure measurement and error monitoring
- Ergonomic design with a 2-component plastic housing
- Integrated LED for illuminating the work area
- One-button operation concept for easy handling.
4. Klauke Pressing tool
Klauke crimping tool EKM6022ISM Manufacturer: Klauke Designation: Crimping tool 6-300qmm, 1000V Type: EKM6022ISM Suitable for: various applications Crimping shape: universal (interchangeable inserts) Cross section: 6..300 mm² AWG range: 9...600 Length: 404 mm With locking device (for mechanical tools): no Design/actuation: battery-hydraulic Inserts replaceable: yes With automatic return: yes Cycle time: 5 s Pressing force: 60 kNKlauke EKM6022ISM crimping tool: more detailsVDE battery-hydraulic crimping tool, slim crimping head - ideal for critical space conditions. For interchangeable 22 series inserts, narrow crimping. Closed press head, hinged, rotatable. Electronic stiffening and monitoring of the pressing process. Integrated pressure measurement with optical and acoustic signals in case of error. Evaluation function via blü tooth, optical interface and USB adapter. One-button operating concept for staking all die functions. Ergonomic 2-component plastic housing with soft inserts for comfortable and safe one-hand operation. Balanced center of gravity for easy handling and fatigue-free working. LED for workspace illumination. Powerful 18V Li-Ion battery with very high capacity and extremely short charging time. Powerful motors for maximum working speed. Motor quick stop for high user safety. Automatic return after completed pressing. Manual return if required. Automatic retraction stop (ARS) for position stabilization during multiple pressing operations. LED display for tool data. Multifunction LED for maintenance display, battery charge status display and data transfer via USB adapter. Hydraulic oil, quickly biodegradable. Scope of delivery: battery 18 V / 1.5 Ah, Li-Ion (27 Wh) (RAL1), quick charger for 18V Li-Ion batteries, 230 V (LGL1), plastic case (KK50L). , EAN: 4012078960052.
5. Klauke crimping tool

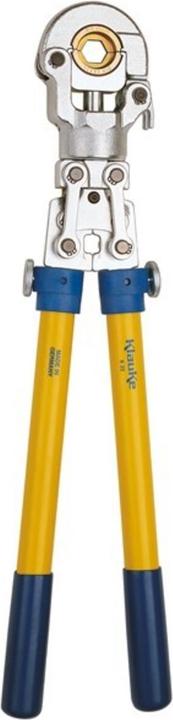

Klauke crimping pliers K 22
Manufacturer: Klauke
Designation: Crimping pliers for 6-300 mm²
Type: K 22
Suitable for: Various applications
Crimping shape: Universal (interchangeable inserts)
Cross-section: 6-300 mm²
Length: 860 mm
With locking device (for mechanical tools): Yes
Design/operation: Mechanical
Interchangeable inserts: Yes
Number of inserts supplied: 1
With automatic return: No
Further details:
Tool-free crimping insert change. Optimal for socket and control cabinet construction. Power-saving, low-maintenance mechanical drive. Narrow pressing. Large cross-section range by half-shell inserts. With extendable telescopic handles. Press head 360° rotatable. Hinged. Quick change of press inserts without readjustment due to special fixing system.
EAN: 4012078027892.

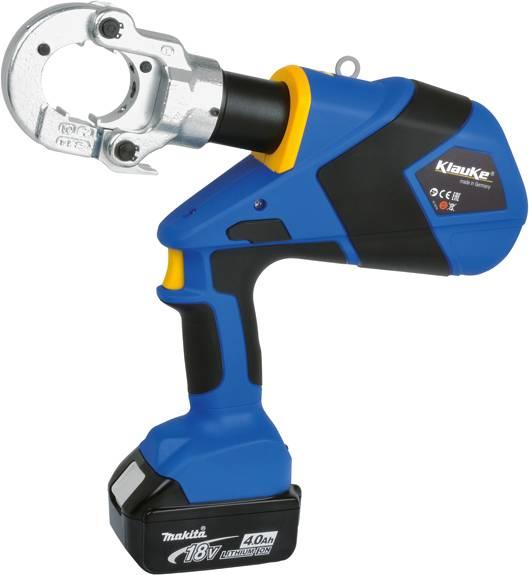

6. Klauke KLA EKM6022CFM Crimping Tool Mini One.K22Er -Rei. Next Gen. 6-300qmm
Klauke EKM6022CFM Crimping tool battery hydr.
Pressing tools
EUR4682,51
Klauke KLA EKM6022CFM Crimping Tool Mini One.K22Er -Rei. Next Gen. 6-300qmm
7. Klauke Syncro pressing tools

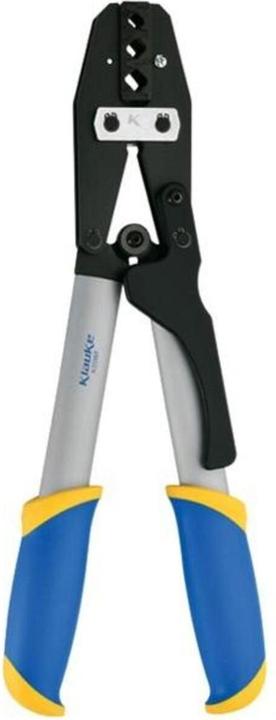

The Klauke K05 produces hexagonal crimps that are suitable for round terminal strip openings. The tools are equipped with a ratchet mechanism that ensures secure and high-quality crimping at all times. Ergonomically shaped handles guarantee safe and comfortable operation. The precise cross-section assignment is permanently marked on the dies to facilitate use.
8. Klauke KLA EK6022CFM Crimping tool battery hydr. one.K22Er-Rei Next Gen. 6-300qmm Makita A
Klauke EK6022CFM Crimping tool battery hydr.
Pressing tools
EUR5239,–
Klauke KLA EK6022CFM Crimping tool battery hydr. one.K22Er-Rei Next Gen. 6-300qmm Makita A
9. Klauke KLA EK354ML Crimping tool, battery hydr. f. Replaceable Hk4Er-series Mini 10,8V
The Klauke EK354ML crimping tool is a battery-operated hydraulic tool designed for professional use in electrical installations. With its compact design and powerful lithium-ion battery, it offers high flexibility and mobility required for various applications. The tool enables crimping of cables with a workpiece diameter of 6 to 150 millimeters, making it a versatile solution for different projects. The battery voltage of 10.8 V and a capacity of 2.5 Ah ensure reliable performance and long operating time. Made in Germany, the Klauke EK354ML stands for quality and durability that are valued in the industry.
- Maximum workpiece diameter of 150 mm for versatile applications
- Battery operation with lithium-ion technology for high mobility
- Made in Germany, which speaks to high quality standards.
Pressing tools
EUR2182,22
Klauke KLA EK354ML Crimping tool, battery hydr. f. Replaceable Hk4Er-series Mini 10,8V
10. Klauke KLAU pressing tool

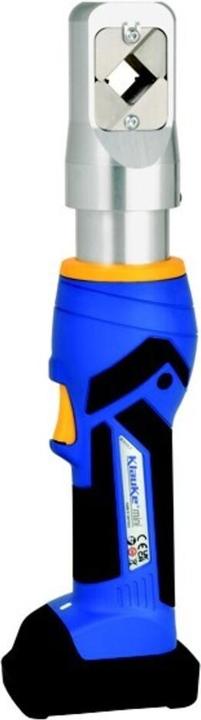

Klauke Crimping Tool K05WF95
Manufacturer: Klauke
Designation: Klauke Crimping Tool 50-95 mm²
Type: K05WF95
Suitable for: Ferrules
Crimping Form: Square crimping
Cross-section: 50 - 95 mm²
AWG Range: 0
Length: 433 mm
With locking mechanism (for mechanical tools): no
Design/Operation: mechanical
Interchangeable inserts: yes
Number of supplied inserts: 1
With automatic return: no
Cycle time: 7 s
Crimping force: 0 kN
The Klauke Crimping Tool K05WF95 is a hand tool designed for crimping ferrules from 50 to 95 mm². It offers easy operation with a supportive pre-clamping lever and a double crimping width, which reduces the number of crimping actions needed by 50%. The square crimping ensures an optimal fit for all common clamp types.
