Best selling Soldering irons from JBC
On this page you'll find a ranking of the best JBC products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. JBC Compact desoldering station
The CP-2QF desoldering station is perfect for desoldering medium-sized and small SMD components. All soldering stations in the compact series operate with the exclusive JBC heating system and the intelligent "Sleep + Hibernation" function. More than 20 parameters can be customized through the menu to individually control your soldering process. The stations feature a USB port for software updates, creating charts, and managing parameters directly from a PC. An integrated cleaning module with an anti-splash membrane ensures cleanliness in the workspace. The wiper helps remove excess solder from the soldering tip. The CP-2F soldering station can only be operated with the AM120-A micro desoldering tweezers. Features include: cable return, solder tip family C120, microprocessor-controlled, standby/auto-off function, quick cartridge change, intelligent heat management, for desoldering and soldering SMD components, accessible and replaceable grounding fuse, communication capability with PC via USB interface, integrated cartridge holder for up to four cartridges, optional RJ12 interface for controlling the JBC suction system, integrated solder tip cleaning system, both dry and wet cleaning possible.
2. JBC Lötstation Kompakt
The JBC Most Efficient Soldering Technology guarantees the best soldering results. The "Sleep + Hibernation" mode also extends the life expectancy of the soldering tips. More than 150 different soldering cartridges from the C245 soldering tip family are available in a wide variety of shapes and, as with all compact stations, the CD-2BQF also offers more than 10 different parameters for setting and personalisation.
3. JBC NANE-2C Soldering Station 90 - 450°C
Specifically designed for applications requiring the highest precision. The ideal solution for soldering and desoldering microcomponents such as 0201, 0402, and 01005 chips. The station is equipped with the new temperature dynamics profiles feature. Using these profiles allows you to control the temperature of the component throughout all stages of the soldering process and to simulate the heating process in a reflow oven. The Nano soldering station can operate simultaneously with two Nano handpieces NT115. The short distance from the tip to the handle provides maximum control, even when used under a microscope.
Features:
- 2-channel control unit
- Designed for ultra-fine soldering tasks
- Capacitive multifunction display
- Intuitive menu, easy operation
- Combined tip change and cleaning system
- Simple software update possible
- Communication capability between PC and power unit via USB
- All Nano soldering tools can be operated in parallel
- Footswitch optionally connectable per channel
- Tip change possible even when hot
- Tip family C115
Delivery includes:
1 piece control unit NAU
2 pieces Nano soldering irons NT115
1 set of soldering tips: 1 x C115-101, 1 x C115-103, 1 x C115-107, 1 x C115-112, 2 x C115-105, 2 x C115-113
1 piece foot pedal P405
1 piece power supply
1 piece user manual
Technical specifications:
Power: 2 x 14 W
Temperature range: 90-450 °C
Dimensions L x W x H: 170 x 90 x 135 mm
Channels: 2
Grounding socket: yes
USB interface: yes
Weight: 2.45 kg
Article number: JBC-NANE-2C
Shop number: 803612
EAN: 8427327457515.

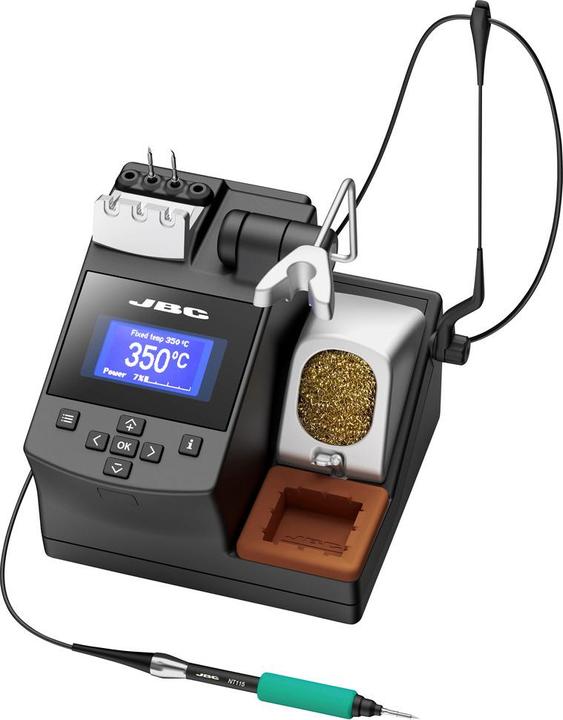

4. JBC Compact soldering station CDN-2QF incl. NT115-A
The compact soldering station CDN-2QF from JBC is a high-precision soldering station specifically designed for hand soldering tasks that require the utmost accuracy. It is ideal for soldering microcomponents on circuit boards and offers a variety of features that enable efficient and controlled operation. The station is equipped with intelligent heat management, ensuring precise temperature control. Additionally, the integrated holder for cartridges allows for quick changes of soldering tips, while the cleaning system supports both dry and wet cleaning. The user interface is intuitively designed, allowing for easy configuration via seven buttons. With its compact design and lightweight construction, the soldering station is also suitable for use in tight working environments.
- Intelligent heat management for precise temperature control
- Integrated solder tip cleaning system with dry and wet cleaning options
- Quick cartridge change with an integrated holder for up to four cartridges
- Standby and auto-off function for energy savings
- Optional RJ12 interface for controlling JBC fume extraction systems
- USB interface for PC communication.
5. JBC CDE-2BQA Soldering Station 150W +90 - +450°C
The digital soldering station CDE-2BQA enhances the benefits of the CD soldering stations with intelligent new features, such as an assisted working mode, dynamic soldering profiles, and the ability to connect fume extraction systems directly to the station. Of course, all the advantages of the CD stations are still retained. The CDE-2BQA soldering station can be operated with the soldering irons T210 and T245. No soldering tips are included in the delivery. You can choose from a variety of different tips in our shop.

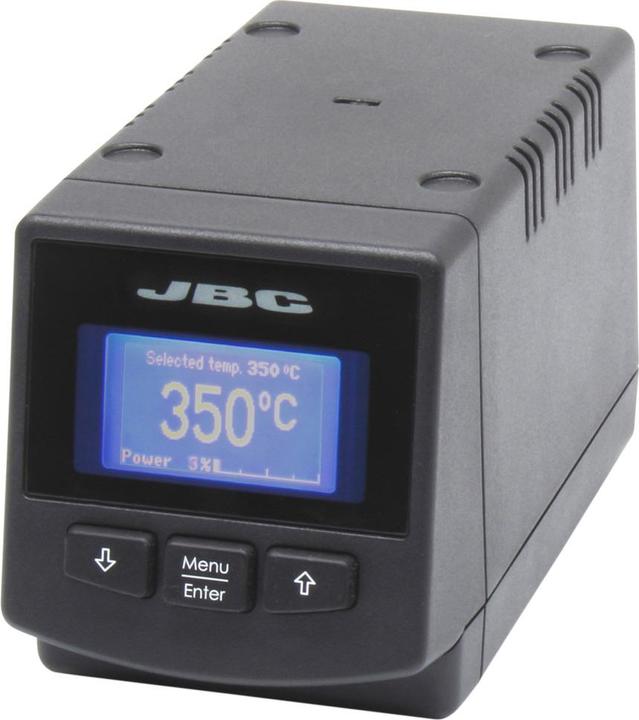

6. JBC 1-channel control unit DI-2D
The DI control unit with digital temperature display allows for greater precision and control of your tool. It has been designed for use in manufacturing and repair with light to medium thermal requirements.
The control unit enables personal configuration of the operating modes Sleep, Standby, and soldering temperature. All parameters can be secured with a PIN. All tools in the JBC range can be connected to any control unit using the appropriate holder. This also includes the desoldering tools DR560 and DS360, in which case one of the suction devices MS-A or MV-A must be added.
Features:
- 1-channel control unit
- Intelligent heat management
- Standby/Auto-off function
- Communication capability with PC via USB interface
- Microprocessor controlled
Delivery includes:
1 piece DI-2D control unit
1 piece power plug
1 piece user manual
Technical specifications:
Power: 130 W
Temperature range: 90-450 °C
Dimensions L x W x H: 90 x 105 x 180 mm
Channels: 1
Grounding socket: yes
USB interface: yes
Weight: 2.52 kg
Article number: JBC-DI-2D.
7. JBC DDSE-2QD Repair Station 150W
The DDSE repair station offers a complete solution for fast and safe repair of PCBs and SMD circuits with insertion elements through solder suction, which is also necessary for pad cleaning in SMD circuits. The station utilizes the advantages of JBC technology, including extraordinary heating speed, a sleep function, compact dimensions, and easy handling of the soldering and desoldering iron.
In addition to the standard configuration with a soldering and desoldering iron, any JBC tool can be connected to both modules in this station, with the only restriction being that only one desoldering iron is allowed. Please note that soldering tips are not included in the delivery; however, a variety of different tips can be selected from our shop.
Features:
- Modular 2-channel control unit
- Capacitive multi-function display
- Intuitive menu for easy operation
- Easy software updates
- Communication capability with PC via USB interface
- All soldering tools can be operated with suitable trays, except nano and HD tools
- Equipped with an electric vacuum pump
Scope of delivery:
- 1 control unit DDE
- 1 electric suction module MSE
- 1 cleaning module CL8499
- 1 handpiece T245 without soldering tip
- 1 storage stand ADS
- 1 desoldering iron DR560
- 1 storage stand DRS
- 1 cleaning sponge S0354
- 1 brass brush insert CL6217
- 1 cable holder set
- 1 connecting cable
- 1 mains plug
- 1 tool and accessory set
- 1 filter box
- 1 cleaning rod
- 1 set of cotton filters
- 1 Visifilter housing with connection hose
- 1 set of operating instructions
Technical data:
Power: 2 x 150 W
Temperature range: 90-450 °C
Dimensions L x W x H: 148 x 120 x 232 (DDE), 145 x 55 x 225 (MVE) mm
Channels: 2
Potential equalization socket: Yes
USB interface: Yes
Vacuum: 75% / 570 mmHg
Max. flow rate: 9 SLPM
Weight: 7 kg
Attention: There are no tips included in the delivery.
8. JBC control module
Work with two tools simultaneously! The station allows for the simultaneous connection of two tools for soldering or desoldering. For a functional, simple system, you also need a tool, a holder, and a cartridge. Each tool can be connected with a footswitch and another module, such as the MSE/MVE desoldering modules, the KNE nitrogen measurement and control system, or the FSE smoke extraction system. The user can assign different tools to each port without needing to connect them.
9. JBC Angled desoldering iron DT530-A
The DT530 angled desoldering iron is designed for desoldering wired components and removing excess solder after SMD rework.
Features:
- Compatible with JBC stations DDE and DME
- Can be used in conjunction with MSE-A
- Suitable for desoldering through-holes
- Ideal for thermally demanding desoldering work and cleaning SMD pads with internal diameters of 0.6 to 3 mm (0.024 to 0.118 inch)
- Glass solder container
- Easy tip change
- Good working ergonomics
- Very easy cleaning
- An update of the station software is required for use
- D530 series tip family
Scope of delivery:
- 1 piece desoldering iron DT530
- 1 box with accessories DT100
- 1 operating manual
Technical Data:
Power: 160 W
Weight: 340 g.
10. JBC Tools DR560-A Desoldering Iron
The DR560-A desoldering iron is particularly suitable for desoldering small SMD components as well as conventional components. The desoldering iron achieves a power of up to 160 W. The exclusive JBC heating system and the suction power of the JBC desoldering pumps ensure optimal work quality. The glass solder collection chamber is easy to clean and allows for timely assessment of when to change it. The filters can also be easily replaced.
Features:
- Compatible with JBC stations DI, DDE & DME
- Usable in conjunction with MS-A, MSE-A, MV-A & MVE-A
- For thermally demanding desoldering tasks and cleaning SMD pads
- Choice between large glass and metal solder collection containers
- Easy tip replacement
- Good work ergonomics
- Very easy to clean
- DR stand is required
- Tip family Series C560
Delivery includes:
1 piece DR560-A desoldering iron
1 piece C560003 desoldering tip
2 pieces cable holders
1 set of cleaning tools
2 pieces rubber seals
1 set of filters
1 piece replacement tool
1 piece metal spiral for glass tube
1 set of cleaning tools for long desoldering tips
1 piece cleaning rod
1 piece replacement container metal
1 piece replacement container glass
1 piece user manual
Technical data:
Weight: 560 g
Article number: JBC-DR560-A
Shop number: 801180
EAN: 8427327255890.
