Best selling Surge protection from Eaton
On this page you'll find a ranking of the best Eaton products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eaton SPZT123-300/3+NPE-S EP-501043 Lightning current surge arrester EP-
For the protection of consumer installations in the network connection area of the meter cabinet on a 40 mm busbar against transient overvoltages caused by direct and indirect lightning strikes as well as switching actions. Meets all requirements for the installation of surge protection according to DIN VDE 0100-534, test classes I, II, III according to IEC 61643-1, SPD type T123, complies with IEC 61643-11: 2011, EN 61643-11:2012 A11:2018, lightning protection classes III and IV according to IEC 62305, free of leakage current, with integrated fuse for the protection of the Smart Meter Gateway and the APZ SPZT123-3003NPE-S.

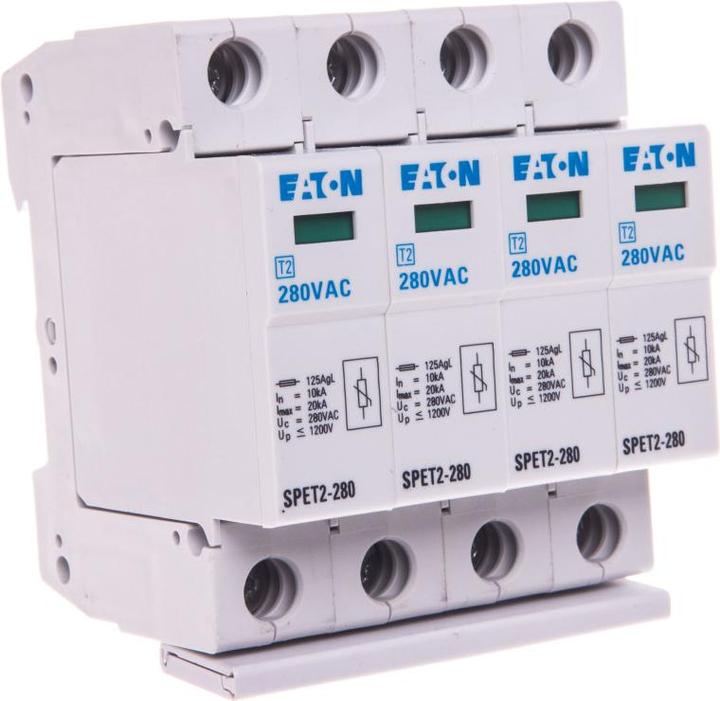

2. Eaton Surge arrester complete, 4p, 168693
The surge arrester from Eaton is a highly advanced protective device specifically designed for use in TN-S networks. With a rated alternating voltage of 230 V and a maximum continuous operating voltage of 280 V, this device provides reliable protection against surges caused by lightning strikes or other electrical disturbances. The surge arrester is suitable for mounting on a 35 mm DIN rail and features four poles, making it ideal for use in complex electrical systems. With a rated discharge current of 20 kA, it ensures effective diversion of surges to protect connected devices. The protection level of 1.4 V ensures that sensitive electronics are safeguarded against harmful voltage spikes. This product is an essential component of any electrical installation designed for safety and longevity.
- Type: Surge arrester for TN-S networks
- Maximum lightning impulse current of 20 kA
- Mounting on 35 mm DIN rail
- Protection level of 1.4 V
- Made in Germany.

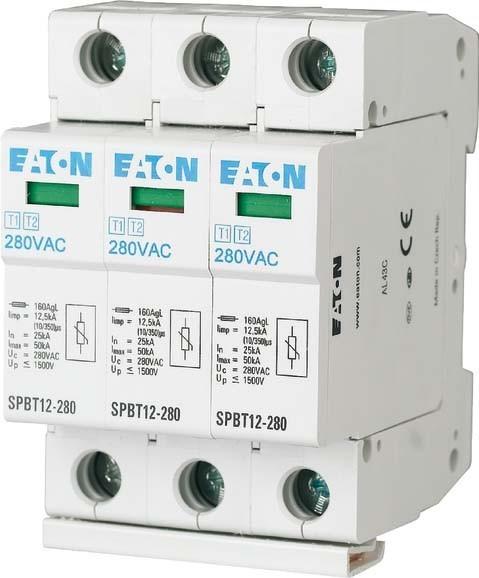

3. Eaton SPBT12-280/3 158330 Overvoltage
The Eaton SPBT12-280/3 is a highly advanced surge protective device designed specifically for the protection of consumer installations. This device provides effective protection against transient overvoltages caused by direct and indirect lightning strikes as well as switching operations. The surge protector meets the requirements of IEC 60364-5-53 and is classified in test classes I and II according to IEC 61643-1. With a rated voltage of 280 volts and a lightning impulse current of up to 12.5 kA, it offers a reliable solution for the safety of electrical systems. Installation is straightforward on a DIN rail, making it easy to use in various applications. The IP20 protection rating ensures that the device is suitable for use in protected indoor areas.
- Protection against transient overvoltages from lightning strikes and switching operations
- Type 1 test class according to IEC 61643-1
- Easy installation on DIN rail
- Lightning impulse current of 12.5 kA
- Protection level of 1.5 volts.
4. Eaton SPPVT12-10-2+PE-AX 177255 About
The SPPVT12-10-2+PE-AX 177255 from Eaton is a highly advanced surge current and overvoltage protector specifically designed for use in 2-pole isolated DC systems with a rated voltage of up to 1000 V DC. This device provides effective protection for consumer installations and is suitable for mounting on a DIN rail. The surge protector features a 3-pole base with an integrated remote signaling contact, allowing for easy monitoring and status reporting. The three plug-in, temperature-monitored protective elements ensure reliable operation and safety. With a test class II according to EN 50539-11, this product meets high standards for surge protection and offers a nominal discharge surge current capacity of 15 kA as well as a lightning surge current of 40 kA. The protection rating of IP20 ensures that the device can be used in dry indoor environments.
- 3-pole base with remote signaling contact for easy status monitoring
- Temperature-monitored, plug-in protective elements for enhanced safety
- Test class II according to EN 50539-11 for reliable surge protection
- Nominal discharge surge current of 15 kA and lightning surge current of 40 kA
- Easy mounting on DIN rail for flexible installation.
5. Eaton SPCT2-335-3+NPE/BB
The EATON SPCT2-335-3+NPE/BB is a highly advanced surge arrester specifically designed to protect consumer installations from transient overvoltages. These surge protectors are particularly effective against the effects of indirect lightning strikes as well as switching operations that can occur in electrical systems. With a testing class of Type 2 according to IEC 61643-1+A1 and an SPD type T2 according to EN 61643-11, this device offers a reliable solution for protecting your electrical infrastructure. The SPCT2-335-3+NPE/BB can be easily mounted on a DIN rail and is compatible with various Xtra Combinations switching devices. Additionally, there is an option to add an SPC-S-HK auxiliary switch for remote signaling, further enhancing the monitoring and protection of your systems.
- Protection against transient overvoltages from lightning strikes and switching operations
- Testing class Type 2 according to IEC 61643-1+A1
- Compatible with Xtra Combinations switching devices
- Easy mounting on DIN rail
- Nominal discharge current of 20 A and lightning discharge current of 40 kA.
6. Eaton 199996

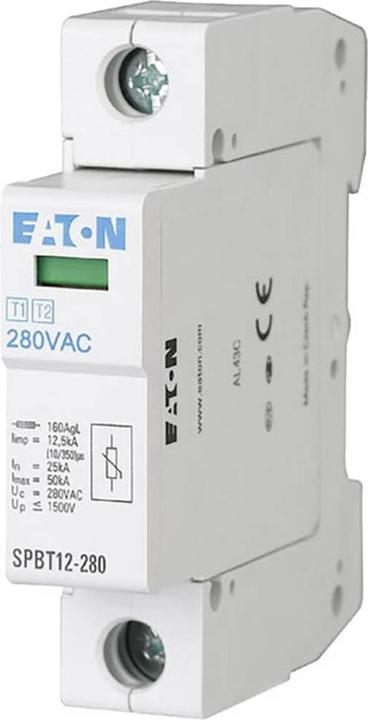

7. Eaton SPBT12-280/1 158306 Overvoltage
The Eaton SPBT12-280/1 surge protector is a highly advanced protective device specifically designed for use in consumer installations. It provides effective protection against transient overvoltages caused by direct and indirect lightning strikes as well as switching actions. This surge protector meets the requirements of IEC 60364-5-53 and is classified in test classes I and II according to IEC 61643-1. With a rated voltage of 280 volts and a lightning current of up to 12.5 kA, it is suitable for use in lightning protection classes III and IV according to IEC 62305. Installation is straightforward on a DIN rail, making it easy to install in distribution cabinets. The SPBT12-280/1 is a reliable and robust device that helps ensure the safety and longevity of electrical systems.
- Protection against transient overvoltages from lightning strikes and switching actions
- Compliance with standards IEC 60364-5-53 and IEC 61643-1
- Lightning current of 12.5 kA for high protection capacity
- Easy installation on DIN rail for flexible setup
- Protection class IP20 for use in protected environments.
8. Eaton SPDT3-335-1+NPE
Eaton Surge Protection Device SPDT3-335-1+NPE
Manufacturer: Eaton
Designation: Complete surge protection device, 1p+N, 335VAC
Type: SPDT3-335-1+NPE
DC Network Form: No
IT Network Form: No
TN Network Form: No
TN-C Network Type: No
TN-C-S Network Type: No
TN-S Network Type: No
TT Network Type: No
Other Network Type: Yes
Number of Conductors (excluding ground): 1
Nominal Discharge Current (8/20): 2.5 kA
Maximum Discharge Current (8/20): 2.5 kA
Discharge Current (8/20): 10 kA
Nominal AC Voltage: 335 V
Nominal DC Voltage: 0 V
Maximum Continuous Operating Voltage AC: 335 V
Maximum Continuous Operating Voltage DC: 0 V
Maximum PV Voltage: 0 V
Protection Level: 1.6 kV
Protection Level L-N: 0 kV
Protection Level N-PE: 0 kV
Maximum Overcurrent Protection Device Stub Wiring (Fuse): 0 A
Maximum Overcurrent Protection Device V-Wiring: 0 V
Overcurrent Protection Device V-Wiring (Fuse): 125 A
Short-Circuit Strength (Isccr): 0 kA
Integrated Short-Circuit Protection: No
Integrated Selective Short-Circuit Protection for gG Fuse: 0 A
Integrated Backfall Protection: No
Leakage Current Free: No
Mounting Type: TH35 Rail
Size: 2 TE
Maximum Conductor Cross-Section Rigid (Single-pole): 0 A
Maximum Conductor Cross-Section Rigid (Solid/Multi-stranded): 25 mm²
Maximum Conductor Cross-Section Flexible (Fine-stranded): No
Maximum Conductor Cross-Section Flexible (Flexible): 0 mm²
With Remote Signal Contact: No
Signaling on Device: Optical
Test Class Type 2: No
Protection Class (IP): IP20
The Eaton surge protection device SPDT3-335-1+NPE is designed to protect end devices against transient overvoltages as fine protection. It meets the test class III according to IEC 61643-1+A1 and SPD type T3 according to EN 61643-11. A high fallback performance of up to 63 A gL / C 63 is possible. An auxiliary switch SPC-S-HK can be installed for remote signaling, and decoupling from the upstream surge protection of the consumer installation is not necessary.
9. Eaton SPBT12-280-3+NPE-AX
Eaton surge arrester set SPBT12-280-3+NPE-AX
Manufacturer: Eaton
Designation: Surge arrester set TN-S/TT set, 3+1p
Type: SPBT12-280-3+NPE-AX
Mains form DC: No
Mains form IT: Yes
Mains form TN: Yes
Mains form TN-C: No
Mains form TN-C-S: No
Mains form TN-S: Yes
Mains form TT: Yes
Mains form other: Yes
Number of poles: 4
Lightning impulse current (10/350 µs): 12.5 kA
Highest continuous AC voltage: 280 V
Highest continuous DC voltage: 0 V
Rated AC voltage: 280 V
Rated DC voltage: 0 V
Max. PV voltage: 0 V
Protection level: 0 kV
Protection level L-N: 1.5 kV
Protection level L-PE: 1.5 kV
Protection level N-PE: 1.5 kV
Protection level (DC+ - DC-): 0 kV
Protection level (DC+/DC- - PE): 0 kV
Residual current extinguishing capacity: 0 kA
Specific energy (W/R): 2500 kJ/Ohm
Max. overcurrent protection device Stub wiring (fuse): 0 A
Max. Overcurrent protection device V-wiring (fuse): 0 A
Mounting type: DIN rail TH35
Size: Other
Max. conductor cross-section rigid (solid/multi-wire): 25 mm²
Max. conductor cross-section flexible (finely stranded): 35 mm²
Remote signalling: No
Signalling on device: Optical
Test class: Type 1 and 2
Integrated back-up fuse: No
Energetically coordinated protective effect to the end device: No
Voltage-switching spark gap technology: Yes
Overcurrent-protected voltage tap: No
Protection class (IP): IP20
Further details: For protecting consumer installations against transient overvoltages caused by direct and indirect lightning strikes and switching operations, application in accordance with IEC 60364-5-53 section 534, test classes I, II to IEC 61643-1, SPD type T1, T2 to EN 61643-11, lightning protection class III and IV to IEC 62305. EAN: 4015081549238.
10. Eaton EATO PV overvoltage protection
The EATO PV surge protection device from Eaton is a highly advanced combined arrester specifically designed for the protection of photovoltaic systems on the DC side. It meets the requirements of the IEC/EN 60364-5-53 standard and provides a reliable solution to prevent damage from surges. With a rated voltage of 1000 volts, this surge protection device is suitable for use in various PV applications. The Type 1 combined arrester ensures effective diversion of surges that may be caused by lightning strikes or other electrical disturbances. Manufactured in Italy and Slovenia, the EATO PV surge protection device stands for quality and reliability. Additionally, the manufacturer demonstrates a commitment to sustainable practices, as evidenced by the SBTi initiative. This surge protection device is an essential component for the safety and longevity of PV systems and helps to maintain the integrity of electrical systems.
