Best selling Torque wrenches from Gedore
On this page you’ll find a ranking of the best Torque wrenches from Gedore. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Gedore Torque screwdriver
Torqueleader torque screwdriver, 0-50 / TT 50 FH
Measuring and monitoring torque screwdriver for controlled clockwise and anti-clockwise fastening, with dual scale (cN-m and ozf-in/lbf-in), featuring a 1/4" hex socket drive for use with 1/4" bits sized to DIN 3126 C 6.3. The display is accurate to ± 6% tolerance of the displayed value, in accordance with DIN EN ISO 6789:2003 Class 1D, based on national standards, with a friction pointer function in both fastening directions to lock the maximum values/maximum value display. It is lightweight due to anodised aluminium handles and is EPA-compliant (EPA = Electrostatic Protected Area), suitable for use in electrostatically sensitive applications. Delivered with a factory test certificate to DIN EN ISO 6789, operating manual, and models 250 and 500 include an additional T handle for easier working.
2. Gedore Torque spanner set 8563-N-05 40 mm 155 - 760 Nm
With test certificate · With extension tube · Controlled right-hand torque · Drive 3/4″ · Includes right-hand ratchet 3/4″ · Classified according to DIN EN ISO 6789-2:2017 · Adjusted to a maximum permissible deviation of +/-3%, thus more precise than the +/-4% required by the standard · Vernier scale – Resolution 1.0 Nm · Made in Germany · No value shifts or influence on accuracy from two-handed operation or use outside the grip, as both the drive square and the pivot point are aligned on the same axis, ensuring high application safety · Extendable to reduce working load.
Further technical specifications:
· Testing required: yes
· Vernier graduation: 1Nm
· Distance from housing to square center: 22.5mm
· Drive square inch: 3/4 inch
· Tightening direction: Right
· Torque (min.): 155Nm
· Total width: 45mm
· Total height: 35mm
· Quantity (pieces): 1
· Net weight: 3.005kg
· Precision +/-: +/- 3 %
· Test certificate: DIN EN ISO 6789-2:2017
· Torque (max.): 760Nm
Scope of delivery: DREMOMETER DN 3/4″ with Vernier 155-760 Nm No. 8563-N-00, extension tube DR/DX ALU No. 8571-80, ratchet No. 754-04.
3. Gedore 4550-10 Torque spanner TORCOFIX K 20-100 Nm
High-quality torque wrench for controlled tightening of screws and nuts, ideal for bicycle repair work. It has a wide range of applications, making it suitable for professional use. This wrench allows for controlled tightening in both right-hand and left-hand threads. It features a mushroom-shaped square drive with a ball lock and is calibrated for a high release accuracy of +/-3%, which is more precise than the DIN/ISO standard of +/-4%. It is classified according to DIN EN ISO 6789:2017 Part 2 and comes with a traceable certificate.
The audible and tactile torque release ensures easy handling, while the easy-to-read, dirt-repellent scale displays measurements in Nm and lb-ft. The torque setting is simple and precise, thanks to the ergonomic rotating handle, which also has a lock at the end.
Included in the package is 1 GEDORE Torcofix K torque wrench for controlled tightening in both directions (1/2 inch, 40-200 Nm), an instruction manual, and a traceable test certificate for release accuracy, which is required in commercial operations. The wrench is made of tubular steel and is available in black and blue.

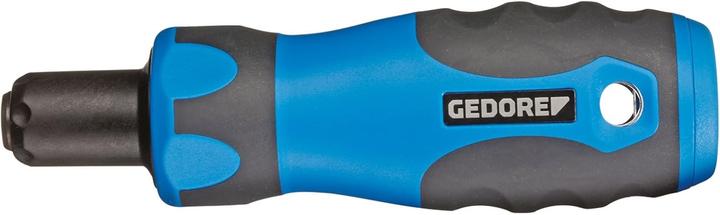

4. Gedore PRO 1350 FH Torque wrench type Pro FH 2.5-13.5 Nm
Application:
Controlled tightening of screws in the range of 2.5 - 13.5 Nm.
Series assembly with constant torque application.
Suitable for the electronics industry, precision mechanics, and industrial manufacturing.
Design:
Fixed torque screwdriver without scale.
Equipped with a 1/4" hexagon socket for operating 1/4" bits according to DIN 3126 - C 6.3.
Classified according to DIN EN ISO 6789 Type II Class F, with a traceable test certificate.
Calibrated to an allowable deviation of +/- 6% from the set value.
Features a precise rotating ball coupling for controlled right and left tightening.
The precision mechanism noticeably slips when the set value is reached.
Automatic return to the starting position.
Fatigue-free working is achieved through an ergonomic handle and gentle release.
Calibration stickers can be easily attached to the designated tab.
The fixed setting can be made at the factory or by the user on suitable testing devices.
If a fixed setting at the factory is desired, please specify the Nm value when ordering (price upon request).
Scope of delivery:
Torque wrench type PRO FH.
Models PRO 450 FH and PRO 1350 FH with an additional cross handle for easier operation.
Test certificate according to DIN EN ISO 6789-2:2017.
Delivered in a sturdy cardboard box.
Torque wrenches
EUR81,93
Gedore PRO 1350 FH Torque wrench type Pro FH 2.5-13.5 Nm
1/4", 2.50 - 13.50 Nm
5. Gedore Buckling torque spanner 5-25 Nm 3/8" 050638
The Gedore angle torque wrench is a precise tool designed for applications where accurate torque is required. With an adjustment range of 5 to 25 Nm, this torque wrench is ideal for various assembly and repair tasks. The micrometer scale allows for easy and secure setting of the desired torque value, while the adjustment lock prevents unintentional changes. A special feature is the bendable handle, which can be tilted up to 20° to avoid over-torquing. The wrench meets the requirements of DIN EN ISO 6789 Type II Class A, underscoring its reliability and accuracy. Made from a robust steel tube construction, it offers a long service life and is suitable for professional use.
- Micrometer scale for precise torque adjustment
- Adjustment lock to prevent unintentional changes
- Bending function of the handle to avoid over-torquing
- Classified according to DIN EN ISO 6789 Type II Class A.
6. Gedore Torqueleader clé dynamométrique ATB 50
Gedore Torque Wrench Torqueleader, 10...50 Nm - 3/8" - ATB 50
The Gedore torque wrench ATB features a micrometer scale for presetting and a permanently mounted reversible ratchet mechanism. It includes an adjustment protection to prevent unintentional changes to the torque value. When the torque value is reached, the handle bends up to 20°, making over-torquing impossible. The release accuracy is ± 4%, classified according to DIN EN ISO 6789:2003 Type 2 Class A, with a factory test certificate.

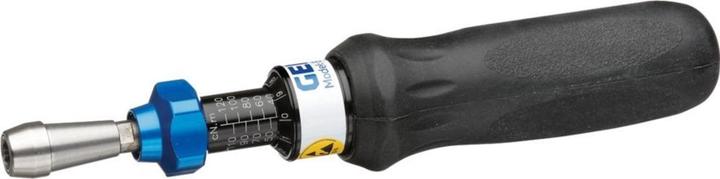

7. Gedore Torque screwdriver 756 01 24 120 Nm DIN EN ISO 6789
Torque screwdriver with calibration certificate according to DIN EN ISO 6790. Application: For operating ¼ inch bits according to DIN 3126-C 6.3. Design: Equipped with longitudinal and circular scales to allow for easy and precise adjustment. When the set value is reached, the mechanism slips, preventing any over-tightening. Precision rotary ball coupling for controlled right and left tightening. Advantage: A secure locking function prevents accidental adjustment of the values.
Torque wrenches
EUR284,48
Gedore Torque screwdriver 756 01 24 120 Nm DIN EN ISO 6789
1/4", 20 - 120 Nm
8. Gedore DMZ 200 Torque Wrench DREMASTER® Z 40-200 Nm
Application: Controlled bolt tightening in the range of 40 - 200 Nm / 30 - 150 lbf-ft. Adjustable, releasing, and robust tubular torque spanner with spigot mount for industry and trades.
Design: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, including traceable test certificate. Calibrated to a maximum permissible deviation of +/- 3%, making it more precise than the +/- 4% required by the standard. Suitable for controlled right and left-hand tightening.
Features a robust, lacquered tubular steel construction with a phosphated spigot mount (Ø 16 mm) and high-quality plastic parts. The ergonomically shaped plastic handle includes a calibration aid.
Allows switchover between the vernier main scale in Nm and the secondary scale in lbf-ft to avoid reading errors when setting the desired torque. Includes a micrometer scale for the Nm main scale for setting intermediate values. The jump-off system produces a clear tactile and audible trigger signal.
The ergonomic system for torque adjustment features an indicator symbol. Quick adjustment is possible with an offset screwdriver (not included in delivery). The adjustment system is secured.
Factory calibration gauge: 32 mm (Ø 16 mm). Operation is only with attachable tools with a uniform gauge; otherwise, there may be value shifts. Depending on the tool insert, work can be carried out either to the front (e.g., open-ended spanner) or to the side (e.g., reversible ratchet and socket spanner).
9. Gedore CS 5 038807 3124096 Torque transducer
Calibrated range: 10% to 100% of capacity. Carry case: To protect the sensor when not in use, it is supplied in a high impact plastic carry case. Flexible: Built-in flexibility allows the sensor to be mounted horizontally or vertically without the need for any accessories. Ease of use: Fast to set up when used with a CAPTURE display due to the embedded Quicktec technology that passes all the sensor information to the display. Optional torque loading system: Remove human error from testing by using the CAPTURE sensor with the ISO 1500/90° torque loading system. Quick change plate: For users with limited space who need to change sensors between tests, the quick change plate increases calibration productivity. UKAS certification: Sensors come complete with a UKAS certificate to BS 7882: class 1 or better.
10. Gedore 7212-17 Socket ring spanner SE 9x12 17 mm
Forged from CV steel for torque wrenches. Features: matte chrome-plated surface, socket size: 9 x 12 mm.
