Top rated Mobile power distributors
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Hager Main switch gray 3 pole 63 A
The Hager main switch SH363N is a reliable 3-pole compact switch with a rated current of 63 Amperes. It is designed for use in system power supplies and meets the requirements of DIN EN 60669-1 as well as VDE standards. The switch is housed in a compact casing that offers both functionality and safety. With touch protection according to DIN VDE 0106-100, it ensures safe handling. The Hager SH363N is designed for an input voltage of 400 Volts AC and is suitable for frequencies of 50 to 60 Hz. The screw connection allows for easy and secure installation, while the IP20 protection rating ensures use in dry indoor environments. This main switch is an ideal choice for applications that require a reliable and safe power supply.
- Touch protection according to DIN VDE 0106-100
- Input voltage of 400 V AC
- Suitable for frequencies of 50/60 Hz
- Screw connection for flexible and rigid conductors
- Compact design with IP20 protection rating.
2. Eaton 207319 Main switch, 3-pole + N, 32 A
The Eaton 207319 main switch is a reliable and safe device designed for system power supply. With a rated current of 32 A and a rated voltage of 400 V, this 3-pole main switch is ideal for use in various electrical applications. Its robust construction and IP65 protection rating ensure high resistance to dust and water, making it suitable for indoor use. The main switch features an emergency stop function that allows for immediate shutdown in case of an emergency. The red rotary handle and yellow locking collar provide easy and safe operation. Additionally, the switch can be locked in the 0 position, offering extra security. An auxiliary switch contact can be retrofitted to expand functionality. This main switch complies with the IEC/EN 60947 and VDE 0660 standards, underscoring its reliability and safety.
- Emergency stop function for immediate shutdown in case of emergency
- Lockable in the 0 position for additional safety
- Auxiliary switch contact can be retrofitted to expand functionality
- IP65 protection rating for high resistance to dust and water
- Complies with IEC/EN 60947 and VDE 0660 standards for reliable performance.
3. MeanWell HDR-150-24 DIN rail power supply 24 V/DC 150 W 1 x
The HDR family of extra-slim switch-mode power supplies from MEAN WELL for DIN rail mounting has now been expanded: For higher power requirements, Schukat offers the new HDR-150 series with 150W in a stepped plastic housing. These power supplies have the smallest size currently on the market and feature reinforced insulation according to protection class II. The power supplies have input voltages ranging from 85 to 264VAC (277VAC also available), a low power consumption of under 0.3W at no load, and a high efficiency of 90.5%. Additionally, they come with an adjustable DC output voltage of ±10% and a wide operating temperature range of -30 to +70°C. The series is designed for applications in overvoltage category III (OVCIII), allowing for versatile application areas. These include building automation, home control systems, industrial control systems, and electromechanical devices. The HDR-150 meets the EU standard EN61000-3-2 Class A for harmonic currents, is certified according to current safety regulations, and with a height of 90mm and a width of 105mm (6TE), complies with the EU standard EN43880 for DIN rail installation.
4. Eaton Main switch, 3-pole + N, 20 A, enclosed
The Eaton main switch is a reliable and safe device for system power supply. With a rated current of 20 A and a rated voltage of up to 690 V, this 3-pole main switch is ideal for various applications in electrical engineering. Its robust design and IP65 protection rating ensure that the device can be used even under demanding conditions. The main switch features a HOLD function and is equipped with a black rotary handle for easy operation. Additionally, it can be locked in the OFF position, providing extra safety. The installation is done as surface mounting, which simplifies the setup process. With a rated operational power of 5.5 kW, this switch is suitable for use in industrial and commercial environments.
- IP65 protection rating for high resistance to dust and water
- Lockable in the OFF position for additional safety
- Suitable for surface mounting, simplifying installation
- Includes 2 units for flexible applications
- Approved for hazardous areas according to ATEX.
5. Siemens DIN-rail power supply unit (DIN-rail
The LOGO!Power mini power supplies in the design of the LOGO!8 modules offer a lot of power in the smallest space. The good efficiency over the entire load range and the low power loss in no-load operation guarantee efficient operation. The wide-range input for single-phase networks and for DC networks, as well as the power reserve when switching on capacitive loads, meet the requirements of numerous applications. The wide temperature range and extensive certifications also enable universal use. The reliable power supplies with their flat stepped housing can be integrated in a highly flexible manner - for example in installation distributors. Regardless of the industry, regardless of the requirement - Siemens offers reliable and efficient power supplies for every system.
6. Hager Load switch
The Hager load switch HIM404 is a modular 4-pole switch designed for mounting on DIN rails or mounting plates. With a rated current of 40 amperes and a rated voltage of 380 to 415 volts, this device is ideal for switching under load between two low-voltage circuits. The load switch meets the requirements of DIN EN 60947-3 and provides safety isolation along with three switching positions: I, 0, and II. These features make it a reliable choice for various indoor applications where a safe and efficient power supply is required. The Hager HIM404 is not only functional but also user-friendly, thanks to the short rotary handle that allows for easy operation. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments.
- Modular 4-pole switch according to DIN EN 60947-3
- Safety isolation with three switching positions (I-0-II)
- Suitable for mounting on DIN rail or mounting plate
- Input voltage of 380 to 415 V
- IP20 protection rating for indoor use.
7. Eaton Isolator 25A 3 Pole with black handle
Number of poles: 3
Max current: 25 A
Mounting type: Enclosed
Contact configuration: 3 normally open
Power: 11 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 V ac
Length: 160 mm
Width: 100 mm
Depth: 80 mm
Minimum operating temperature: -25 °C
SMD isolating switch with enclosure. A series of enclosed isolating switches from Eaton Moeller. In these switches, the contacts are directly actuated during manual operation, and when the power supply is turned off, the contacts automatically open. These isolating switches can be used as network switches, maintenance switches, and manual bypass switches. Thermoplastic enclosure, surface-mounted, black rotary handle and locking ring, lockable in the 0 (off) position, protection against ingress of liquids and solids according to IP65.
8. ABB OT40F4C
ABB's series of manually operated load switches is an optimal solution for numerous applications. The load switches switch currents from 16 A to 3200 A at voltages up to 690 V AC. Despite high performance, the switches ensure safe operation through a variety of integrated fuse functions. The compact design of the series allows for optimal space utilization. ABB's load switches are available in two different versions. These differ in the type of changeover: open changeover (I-0-II) and closed changeover (I-I+II-II). In addition, the changeover switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch to make it function as an ATS (Automatic Transfer Switch). Thus, the load transfer switches can be used in the most demanding applications.
9. Weidmüller PRO INSTA 96W 24V 4A Alimentatore switching 24 V/DC 4 A 96 W
Connect Power Insta Power
The single-phase Insta Power switch-mode power supplies are characterized by a wide power range, a compact design, and a good price-performance ratio. They are suitable for temperature ranges from -25 °C to +70 °C, have international approvals, and feature a wide input voltage range. This makes them suitable for various applications, including signal and telecommunications as well as automation systems with low power requirements up to 96 watts.
Mobile power distributors
EUR68,76
Weidmüller PRO INSTA 96W 24V 4A Alimentatore switching 24 V/DC 4 A 96 W

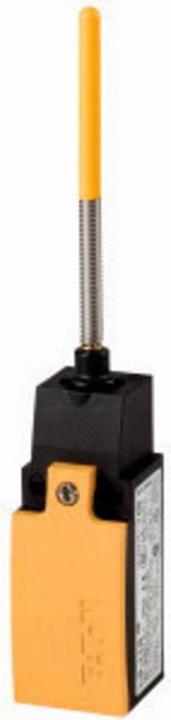

10. Eaton 106805 LS-S11S/S Limit switch 400 V 6 A Spring rod IP66, IP67 1 pc.
The Eaton 106805 LS-S11S/S limit switch is a reliable and robust product designed for use in demanding environments. With a rated voltage of 400 V and a maximum current of 6 A, this limit switch offers high performance. The spring rod mechanism ensures precise actuation and a long lifespan of the device. The protection classes IP66 and IP67 guarantee that the switch is dust-tight and protected against temporary immersion in water, making it ideal for industrial applications. The limit switch is designed as a push button and features a normally closed contact that provides a reliable switching function. The item is sold as a single unit and is not suitable for smart home applications. With the manufacturer's commitment to sustainability, supported by the SBTi initiative, this limit switch is not only functional but also environmentally conscious. The Eaton 106805 LS-S11S/S limit switch is therefore an excellent choice for anyone who values quality and durability.
Mobile power distributors
EUR60,90
Eaton 106805 LS-S11S/S Limit switch 400 V 6 A Spring rod IP66, IP67 1 pc.
