Art. No.: 500503060

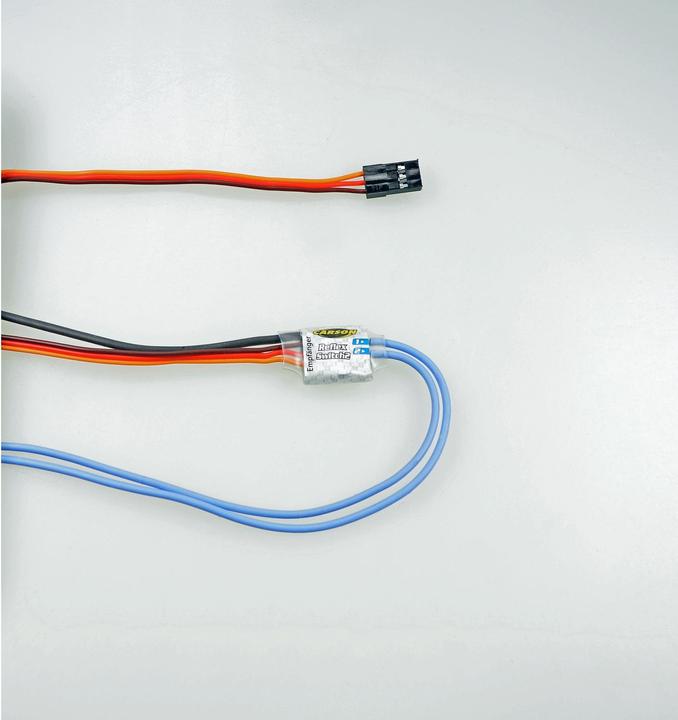

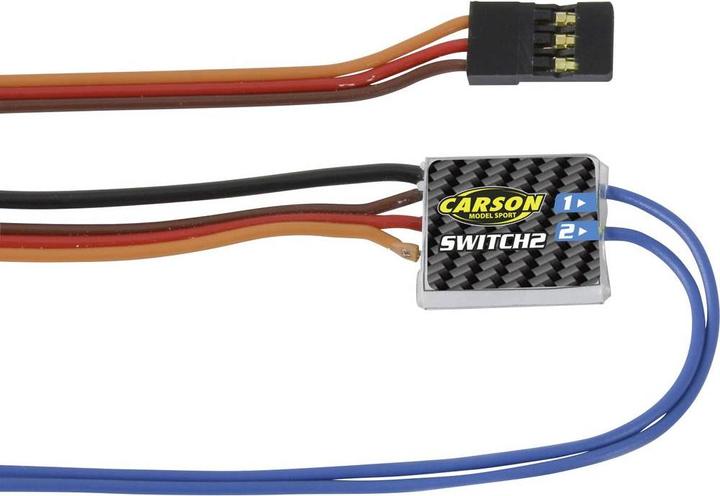

Product Description: Reflex 6/14Ch Switch 2 (2x2.5A)

The switching modules are connected directly to your RC receiver and can be controlled via a button, switch, or joystick. The position of the switch/button (up and down) and the duration (short and long) are evaluated. In the case of the 2-channel module, only the position is evaluated. It is important to ensure that buttons and switches have a neutral position – known as 3-position switches/buttons (On/Off/On).

Each switching output features a memory function: this means it remains activated until the switch/button is returned to the neutral position. The switching module has two separate outputs that switch to ground. Each output is equipped with a 200 mm long blue cable. This cable should be connected to the negative terminal of the consumer. Each switching output can handle a maximum current of 2.5 A. The maximum allowable supply voltage is 16 V/DC.

The module powers itself through the servo cable. The black negative cable can be connected directly to the battery or to the optional distribution terminal. For high loads, the black cable should be connected via the distribution terminal or to the drive battery to prevent damage to the receiver. For easier wiring, we recommend tinning the cable ends.
