AsRock B760I Lightning WiFi
LGA 1700, Intel B760, Mini-ITXPrice in EUR including VAT
Delivered between Tue, 13/5 and Tue, 20/5
8 items in stock at supplier
8 items in stock at supplier
Product details

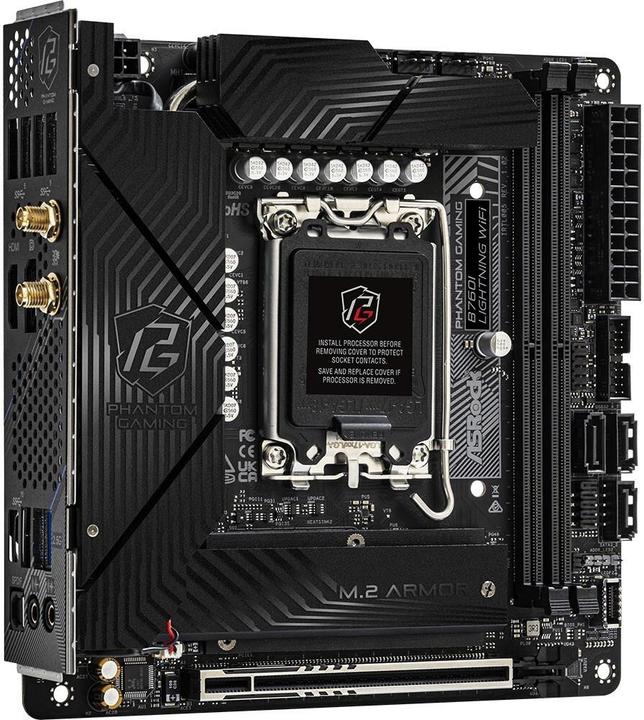

The ASRock B760I Lightning WiFi is a powerful Mini-ITX motherboard designed for the latest Intel processors of the 12th and 13th generations. With the LGA 1700 socket, it offers broad compatibility for various processors, including Intel Core i3, i5, i7, and i9. The motherboard supports DDR5 SDRAM with a maximum capacity of up to 128 GB, ensuring high performance and speed for modern applications. Support for M.2 and SATA III interfaces allows for flexible storage expansion, while the integrated 2.5 Gigabit Ethernet interface and Wi-Fi 6E standard provide fast network connections. The ASRock B760I Lightning WiFi is thus an excellent choice for users looking to build a compact yet powerful system.
- Supports up to 128 GB of DDR5 RAM for high performance
- Integrated 2.5 Gigabit Ethernet interface for fast network connections
- Compatible with Intel processors of the 12th and 13th generations
- Two M.2 slots for flexible storage options
- Wi-Fi 6E support for enhanced wireless connectivity.
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium M |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (2x), S-ATA III (3x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 45881487 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBNN0-A0UAYZ |
Release date | 16/5/2024 |
Form factor | Mini-ITX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium M |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8600 MHz |
Supported memory speed | 8600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

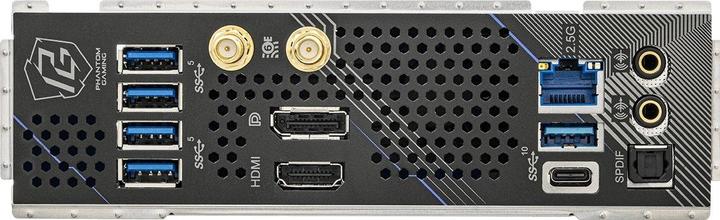

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (3x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 1.0 (1x), USB-C 4 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | Vietnam |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables, Screws |
Length | 170 mm |
Width | 170 mm |
Height | 170 mm |
Weight | 1100 g |
Length | 23.30 cm |
Width | 20.10 cm |
Height | 9.70 cm |
Weight | 1.10 kg |
