AsRock B760M Pro RS
LGA 1700, Intel B760, mATXMore than 10 pieces in stock at supplier
Product details

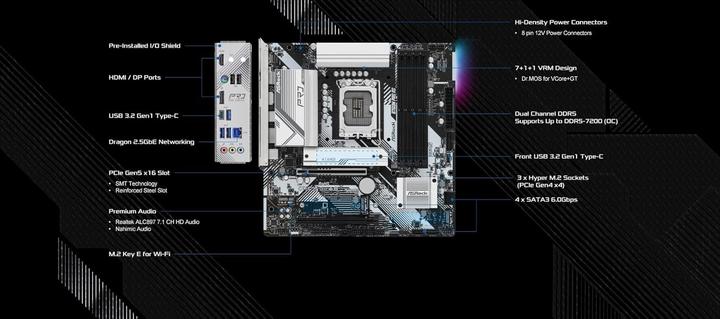

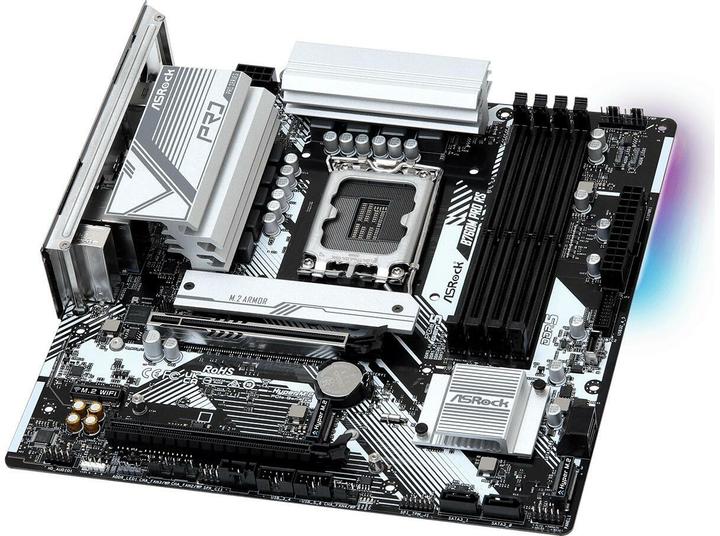

The ASRock B760M Pro RS is a powerful Micro-ATX motherboard equipped with the Intel B760M chipset and LGA 1700 socket. It supports the latest Intel Core CPUs from the 12th, 13th, and 14th generations, including Alder Lake and Meteor Lake processors. With the capability to support DDR5 memory at speeds of up to 7,200 MHz, this motherboard provides an excellent foundation for high-performance desktop systems. Its extensive features include multiple PCIe slots, M.2 slots for fast SSDs, and a variety of USB ports for flexible connectivity. Additionally, the integrated RGB lighting adds an appealing aesthetic, while the heat spreaders for VRMs and the chipset ensure efficient heat dissipation. The ASRock B760M Pro RS is therefore an ideal choice for users who value performance and expandability.
- Supports DDR5 memory up to 7,200 MHz through RAM-OC
- Offers 3 M.2 slots for PCIe 4.0 SSDs
- Features 2.5 Gbit LAN for fast network connections
- Integrated RGB lighting for customization
- Six connectors for fans and pumps for optimal cooling.
Mainboard features | Front panel audio connector, RGB header, Thunderbolt header |

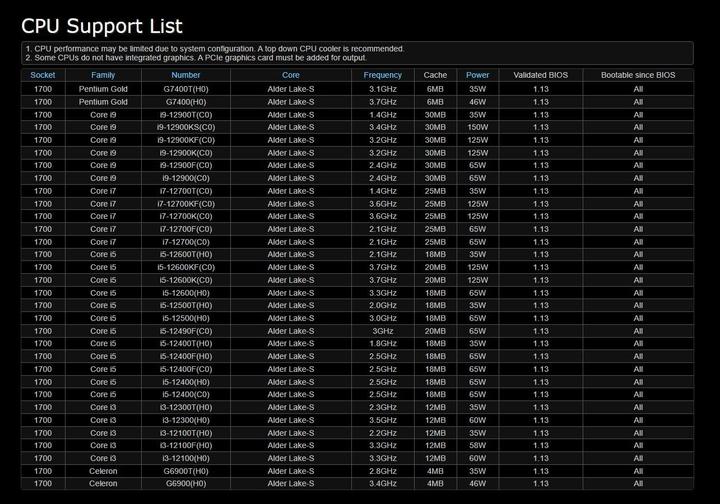

Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Number of memory modules (RAM) | 4x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x) |
Item number | 32948077 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBLH0-A0UAYZ |
Release date | 4/5/2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header, Thunderbolt header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | EFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 192 GB |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125-BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 5) (1x) |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
CO₂ emissions | 279,02 kg |
Climate contribution | EUR 6,31 |
Length | 244 mm |
Width | 244 mm |
Height | 65 mm |
Weight | 150 g |
Product Safety |
Length | 28 cm |
Width | 26 cm |
Height | 6 cm |
Weight | 1.22 kg |
