AsRock Box-R1000M
AMD Ryzen Embedded R1606GProduct details

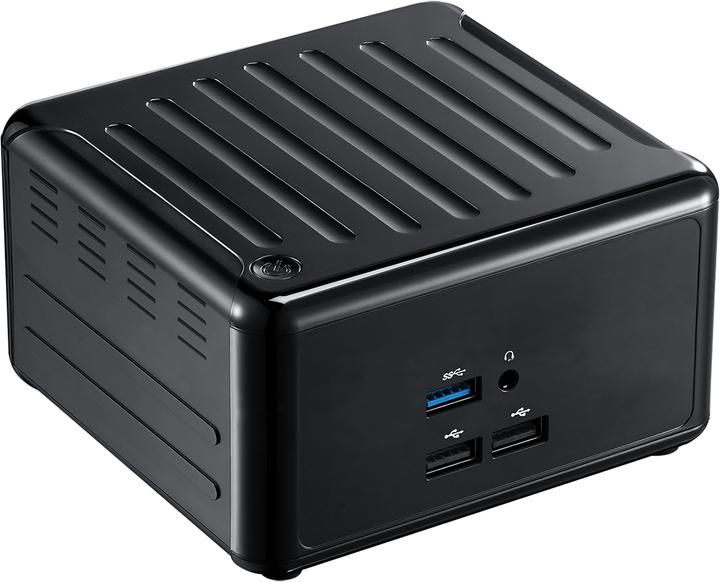

The AsRock 4X4 BOX-R1000M is a compact barebone PC designed for versatile applications. Equipped with an AMD Ryzen Embedded R1606G processor, this system delivers solid performance for a range of tasks, from office applications to multimedia use. The barebone supports up to 32 GB of DDR4 RAM and features two memory slots, allowing for flexible expansion. The M.2 and SATA III interfaces provide versatile storage options, while the integrated Radeon RX Vega 3 graphics card ensures appealing graphic performance. With two RJ-45 Ethernet ports, the BOX-R1000M is ideal for network connections. Its compact design and VESA mount compatibility make it a practical choice for space-constrained environments.
- Supports up to 32 GB of DDR4 RAM for high performance
- Two RJ-45 Ethernet ports for reliable network connections
- Integrated Radeon RX Vega 3 graphics card for enhanced graphic performance
- M.2 and SATA III interfaces for flexible storage options
- Compact design with VESA mount kit for space-saving installation.
Number of processor cores | 2 -Core |
Graphics card model | Radeon RX Vega 3 |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (1x) |

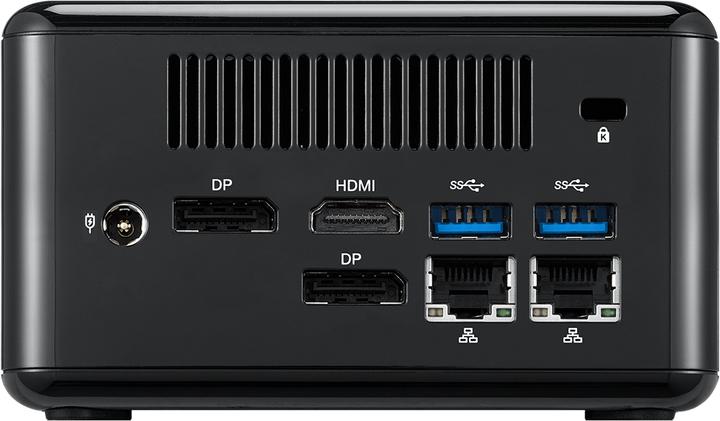

Network connections | RJ45 (2x) |
Video connections | DisplayPort, HDMI Type A |
Memory type | DDR4-RAM |
Item number | 16219867 |
Manufacturer | AsRock |
Category | Barebones |
Manufacturer no. | 90PXG620-P0EAY100 |
Release date | 7/7/2021 |
Design | Small Form |
Processor type | AMD Ryzen Embedded R1606G |
Clock frequency | 2.60 GHz |
Number of processors | 1 x |
Number of processor cores | 2 -Core |
Number of threads | 4 |
Socket | FP5 |
Max. turbo clock rate | 3.50 GHz |
Max. TDP | 96 W |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Max. memory slots | 2 |
Max. RAM | 32 GB |
Graphics card model | Radeon RX Vega 3 |
Max. connected monitors | 3 x |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (1x) |
Exact USB ports | USB-A 3.2 Gen 2 (2x) |
Data ports | PS/2 (2x) |
Network connections | RJ45 (2x) |
Connectivity | Ethernet |
Video connections | DisplayPort, HDMI Type A |
Power | 96 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | M.2 SSD heat sink, screw set, VESA mounting kit |
Weight | 1000 g |
Width | 110 mm |
Length | 118.50 mm |
Height | 67.30 mm |
Length | 20 cm |
Width | 14 cm |
Height | 14 cm |
Weight | 1.74 kg |
