ASUS MB PRO A620AT-CSM
AM5, AMD A620, Mini-ITX10 pieces in stock at supplier
Product details

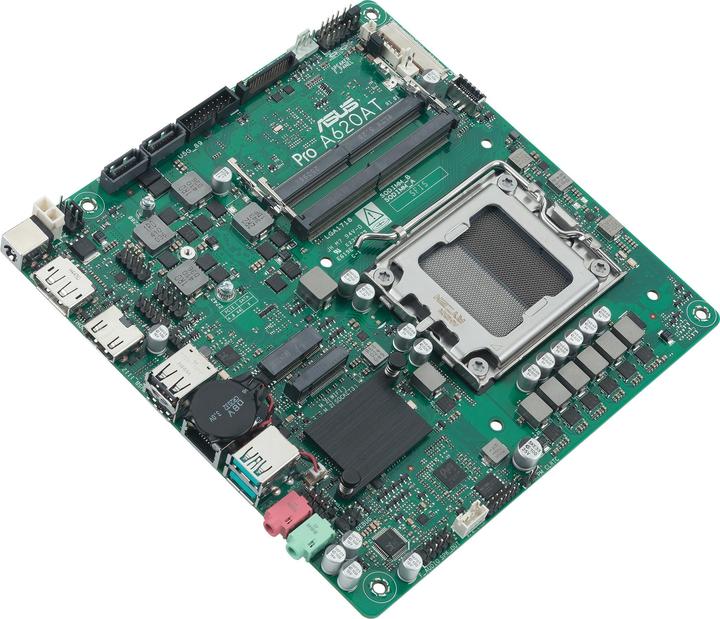

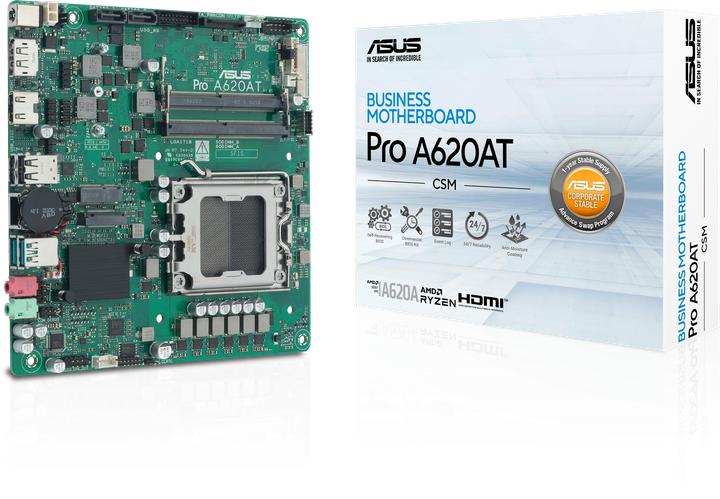

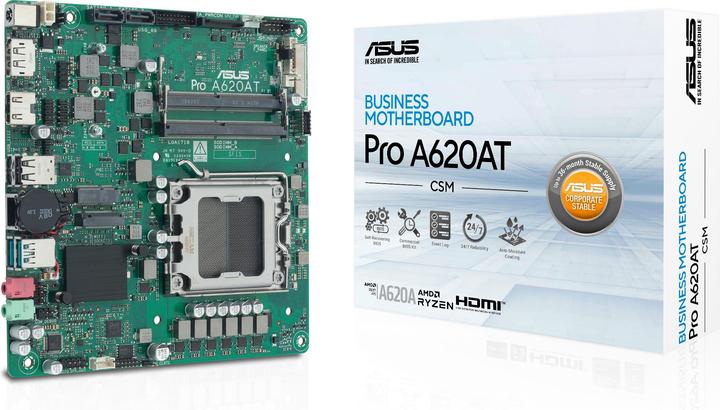

The ASUS PRO A620AT-CSM is a powerful Mini-ITX motherboard designed for AMD 7000 Series processors. With an AM5 processor socket, it provides a solid foundation for modern computing applications. The motherboard supports up to 128 gigabytes of DDR5 RAM, allowing for high memory capacity for demanding applications and multitasking. The internal connectivity options include two SATA III ports and one PCI Express x4 slot, enhancing the system's expandability. Additionally, the PRO A620AT-CSM offers a variety of USB ports, including USB-A and USB-C, ensuring flexible connections to peripherals. The integrated video outputs, including HDMI and DisplayPort, allow for easy connection to modern displays. With a 7.1 channel audio output, the motherboard also delivers an impressive sound experience.
- Supports up to 128 GB of DDR5 RAM for high performance and multitasking capabilities
- Offers a variety of USB ports, including USB-C 3.2 Gen 2
- Integrated video outputs: HDMI and DisplayPort for flexible display connections
- Compatible with Windows 10 for broad software support
- Mini-ITX form factor for compact and space-saving builds.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 PCIe (1x), S-ATA III (2x) |
Mainboard features | Front panel audio connector |
Item number | 59144364 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1L5M-M0EAYC |
Release date | 4/6/2025 |
Form factor | Mini-ITX |
Socket | AM5 |
Chipset | AMD A620 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | AMD 7000 Series |
Memory form factor | SO-DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm (1x), Jack 3.5mm Line In (1x) |
Internal connection options | M.2 PCIe (1x), S-ATA III (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 2 (1x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 12VHPWR |
Country of origin | China, Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable (1x) |
Length | 170 mm |
Width | 170 mm |
Height | 170 mm |
