ASUS Pro Business motherboards offer advanced features for smooth IT operations, including comprehensive system protection, round-the-clock stability and reliability, and an enhanced management suite for easier customisation. As the world's largest and most recognised motherboard brand, ASUS offers world-class customer support and ensures long-term availability to maximise your investment throughout the product lifecycle and provide a high-quality, TCO-optimised solution for your business computing needs.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (2x), USB 2.0 Header (3x) |
Mainboard features | Front panel audio connector |
Item number | 19489778 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1AM0-M0EAYC |
Release date | 29/3/2022 |
Form factor | Mini-ITX |
Socket | LGA 1700 |
Chipset | Intel H610 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | SO-DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3200 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 1 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (2x) |
Internal connection options | S-ATA III (2x), USB 2.0 Header (3x) |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

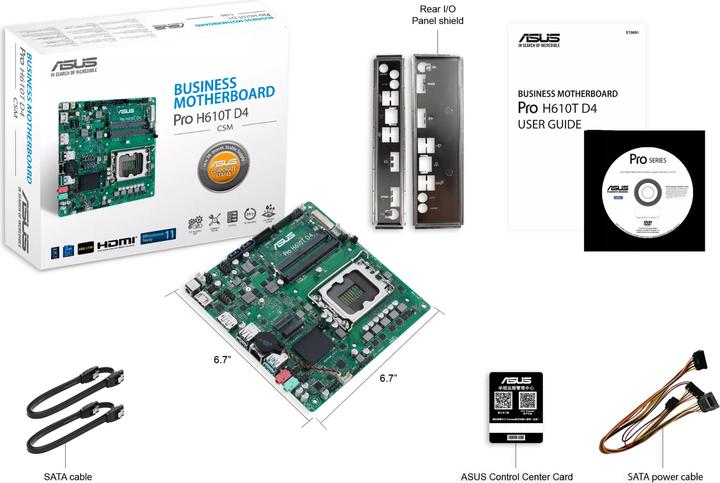

Scope of delivery | Sata Cables |
Length | 170 mm |
Width | 170 mm |
Height | 221 mm |
Weight | 382 g |
Length | 23.40 cm |
Width | 19.10 cm |
Height | 5.80 cm |
Weight | 665 g |
Product Safety |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
... As a test, we reduced the Long Duration Package Power Limit in the BIOS setup to 45 watts, to which the processor is reduced after 28 seconds. This kept the converters ten degrees Celsius cooler under full steam and did not throttle the CPU. As an alternative to manual intervention, you can also buy the so-called T models with 45 watts of processor base power, for example the Core i5-13500T...
