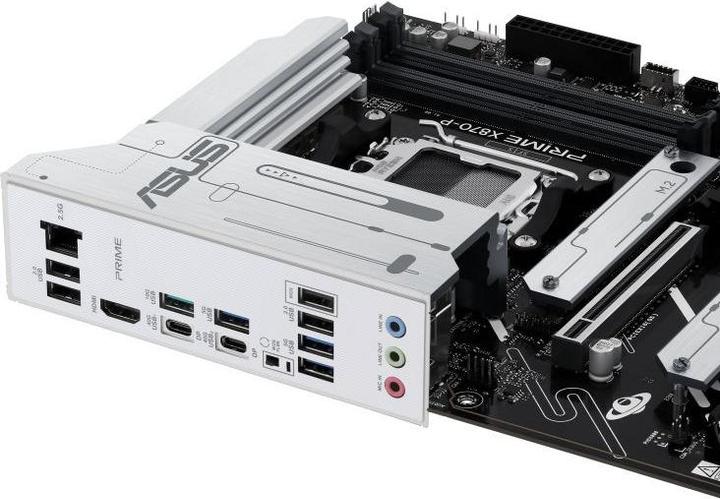

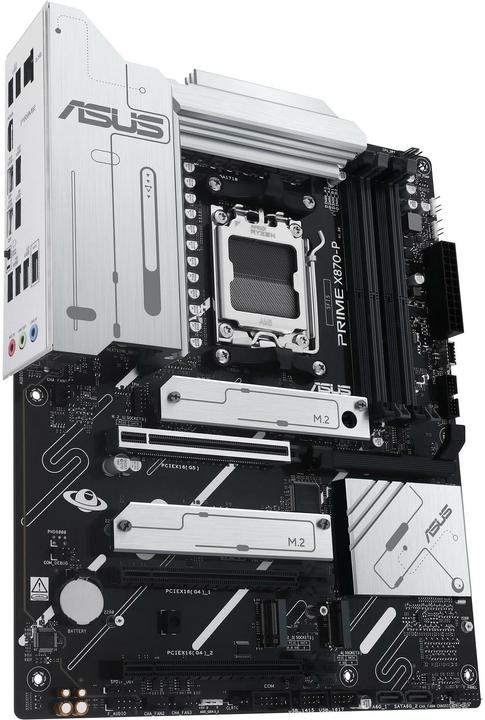

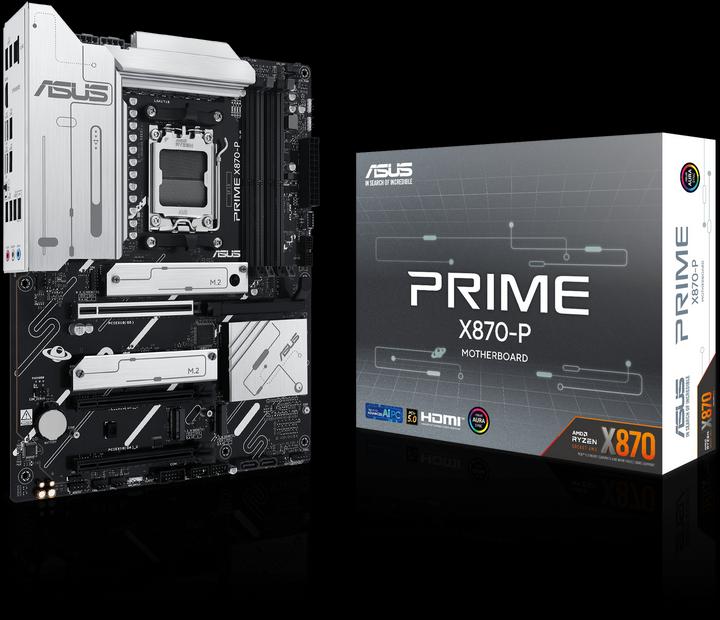

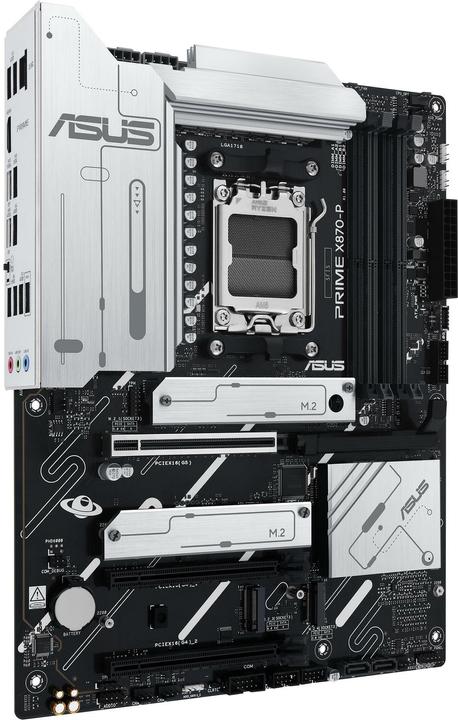

ASUS PRIME X870-P
AM5, AMD X870, ATXOnly 4 items in stock
Product details
The ASUS Prime series motherboards have been developed by experts to unleash the full potential of AMD Ryzen 9000 processors. The PRIME X870-P motherboard features a robust power design, comprehensive cooling solutions, and intelligent tuning options, providing users and PC DIY builders with a range of performance optimizations through intuitive software and firmware features. It is designed to be "Advanced AI PC-ready," offering the necessary power and connectivity for demanding AI applications.
Performance
Robust Power Design
A stable power supply is crucial for maximizing the performance of AMD processors. The PRIME X870-P is designed to meet the demands of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages, integrating high-side and low-side MOSFETs and drivers in packages rated for up to 80 amperes each. This configuration ensures optimal power delivery.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (2x) |
Mainboard features | Front panel audio connector, S/PDIF header, Serial header, Trusted Platform Module |
Item number | 49814132 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1IT0-M0EAY0 |
Release date | 2/9/2024 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870 |
Mainboard features | Front panel audio connector, S/PDIF header, Serial header, Trusted Platform Module |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5-5200, DDR5-5600 |
Max. RAM OC | 8000 MHz |
Supported memory speed | 8000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | 2 x USB-C, HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line In (1x), Jack 3.5mm Line Out (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (4x), S-ATA III (2x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.0 (3x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
Country of origin | China, Germany, Taiwan |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

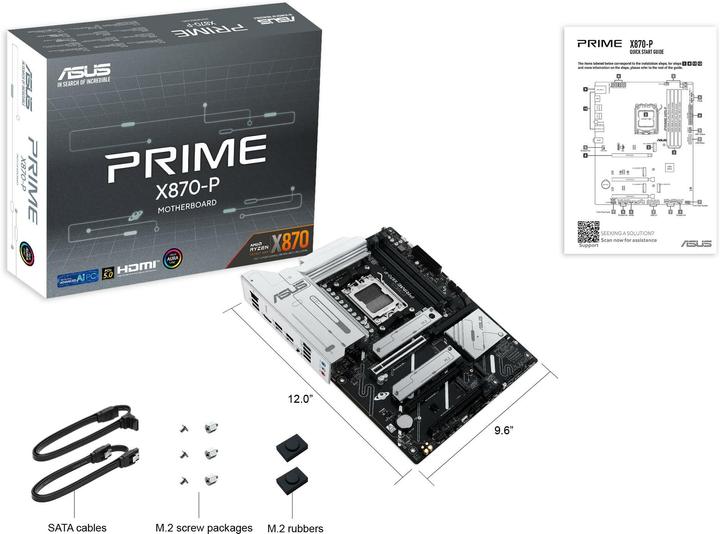

Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 305 mm |
Height | 48 mm |
Weight | 1440 g |
Length | 36.10 cm |
Width | 28.30 cm |
Height | 7.80 cm |
Weight | 1.95 kg |
