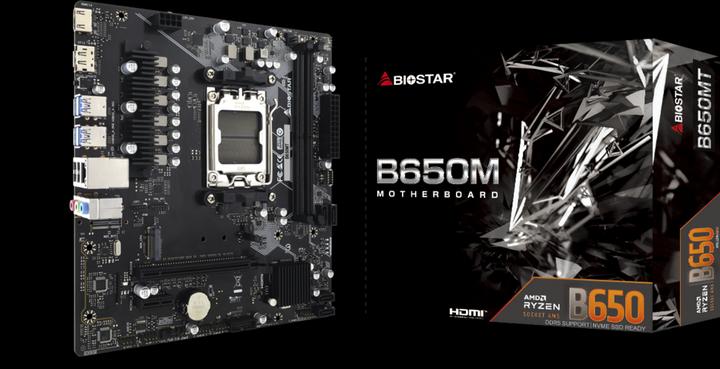

Biostar B650MT
AM5, AMD B650, mATXOnly 4 items in stock
Product details

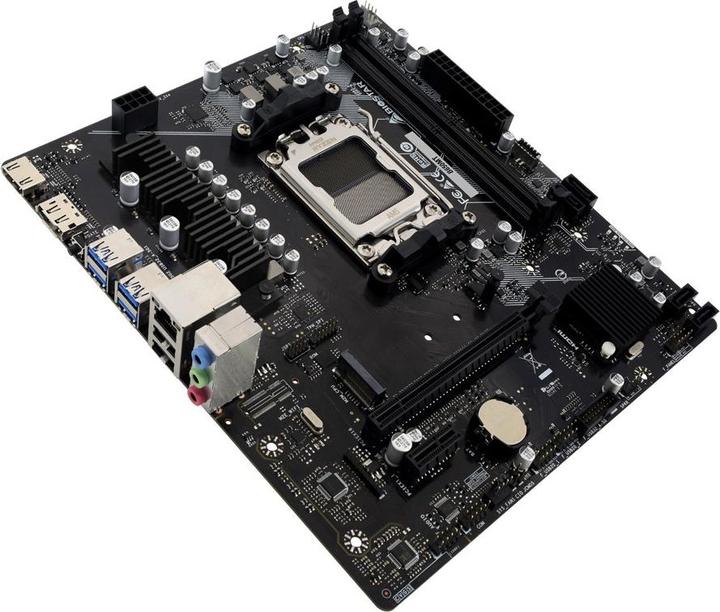

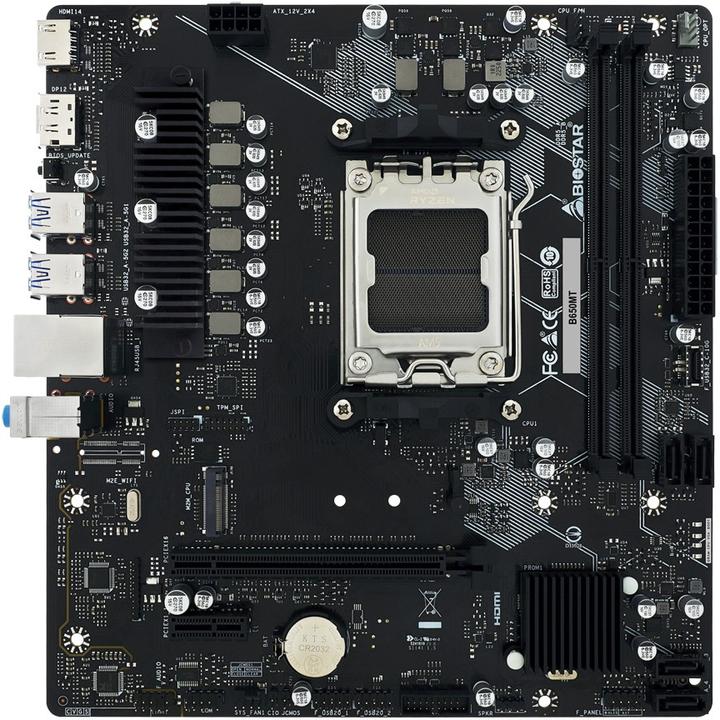

The Biostar B650MT motherboard is a powerful and versatile platform specifically designed for AMD Ryzen 7 processors of the 7th generation. With the AM5 processor socket and the AMD B650 chipset, this Micro ATX motherboard provides an excellent foundation for modern PC builds. It supports DDR5 SDRAM with a maximum capacity of up to 96 GB and enables high memory speeds of up to 6000 MHz. The two DIMM slots allow for flexible memory expansion and optimal performance. The B650MT is equipped with various interfaces, including M.2, PCI Express 4.0, and SATA III, to support both HDDs and SSDs. Additionally, it offers a variety of USB ports and networking options, including Gigabit Ethernet, to ensure a fast and reliable connection. With its compact design and extensive features, the Biostar B650MT is an excellent choice for anyone looking to build a powerful and future-proof system.
- Supports AMD Ryzen 7 processors with AM5 socket
- Maximum RAM capacity of 96 GB with DDR5 SDRAM
- Two DIMM slots for flexible memory expansion
- Variety of interfaces: M.2, PCIe 4.0, SATA III
- Integrated Gigabit Ethernet LAN controller for fast network connections.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Mainboard features | Clear CMOS Button, COM Port Header, Front panel audio connector, Trusted Platform Module |
Item number | 39989181 |
Manufacturer | Biostar |
Category | Motherboards |
Manufacturer no. | B650MT |
Release date | 9/11/2023 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, COM Port Header, Front panel audio connector, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 96 GB |
Memory chip | DDR5, DDR5-4800, DDR5-5200, DDR5-5600, DDR5-6000 |
Supported memory speed | 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 6000 MHz |
Memory type | DDR5 RAM |

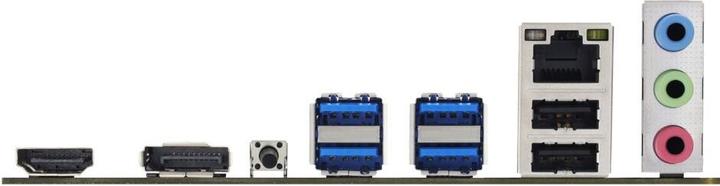

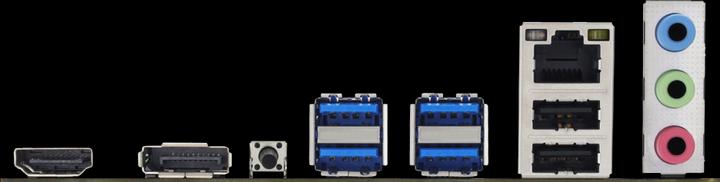

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 1.4 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2x SATA cable, I/O shield |
Length | 235 mm |
Width | 221 mm |
Weight | 800 g |
Length | 27.50 cm |
Width | 24.40 cm |
Height | 5 cm |
Weight | 805 g |
