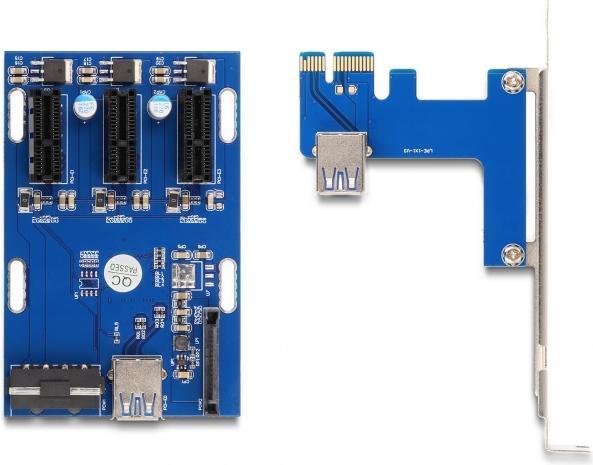

The Delock PCI Express Riser Card can be inserted into any PCI Express x1 slot on the motherboard. The PCI Express board can be mounted in a different position within the case. This allows up to three PCIe cards to operate in a single PCIe slot on a motherboard.

Crypto Mining and Resource Sharing
The computing power of up to three graphics cards can be utilized from a PCI Express x1 slot. This way, the computing power of the graphics cards can be shared for research projects such as Folding@Home via the cloud. Furthermore, the riser card can also be used for cryptocurrency mining.

Note
The package includes a 50 cm long USB 3.0 riser cable. This cable does not transmit USB signals, so it cannot be replaced with another or a longer cable.

Special Feature
Three PCIe x1 graphics cards can be used at one PCIe x1 slot.

Specifications

• Connections on the motherboard side: 1x PCI Express x1, 1x USB 3.0 Type-A socket

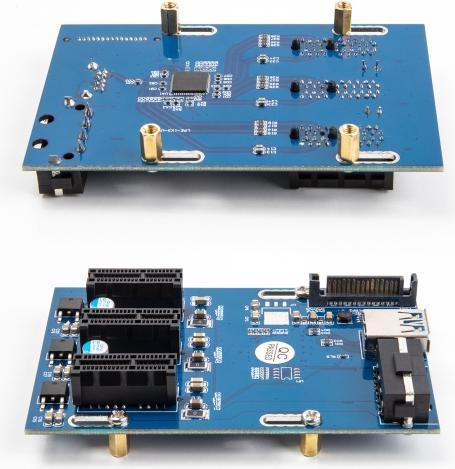

• Connections on the riser side: 3x PCI Express x1 slots, 1x USB 3.0 Type-A socket, 1x Molex 4 Pin power connector, 1x SATA 15 Pin power connector
• Chipset: Asmedia ASM1184e
• Data transfer rate up to 800 MB/s
• FP solid capacitors ensure a safe power supply for the graphics cards
• 4 x mounting holes on the riser card
• Dimensions of the riser card (LxWxH): approx. 99 x 64 x 15 mm

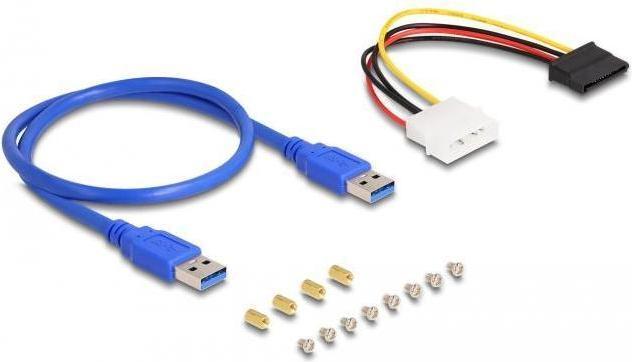

Cable Data
1 x Riser cable USB 3.0 Type-A plug to plug approx. 50 cm (including connectors)
1 x Power cable 4 Pin to SATA approx. 15 cm (including connectors)

System Requirements

• PC with a free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with a free SATA power connector or
• Power supply with a free 4 Pin power connector

Package Contents

• PCIe to USB riser card
• USB to PCIe riser card
• 1 x USB 3.0 cable
• 1 x power cable
• Mounting material.
