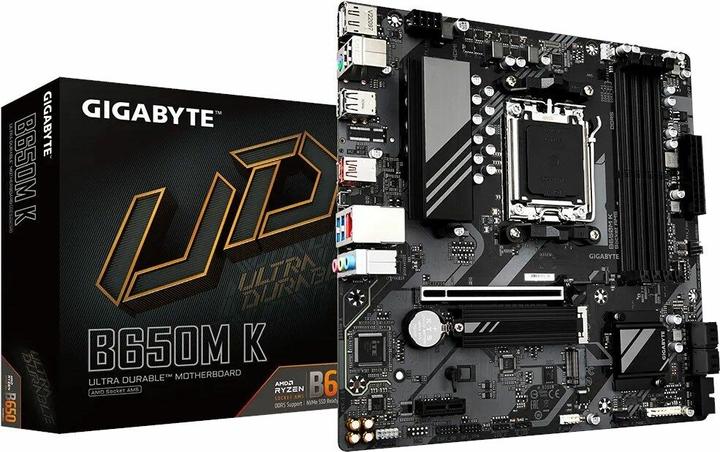

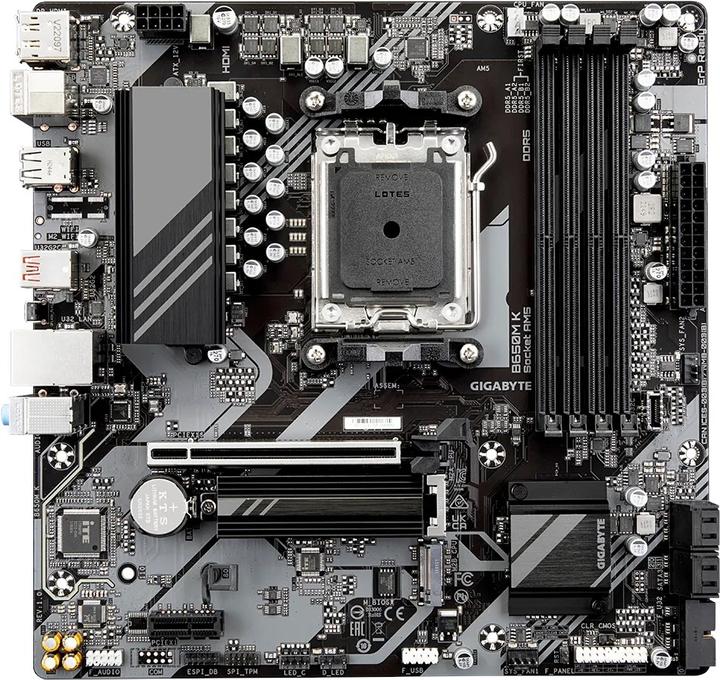

The Gigabyte B650M K is equipped with the B650 chipset for AMD's Ryzen processors of the 7000 series and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to the support of PCIe 5.0 and the extended power supply, the 600 series mainboards use Socket AM5 (LGA 1718). Despite the increased number of pins, the actual size of the socket remains identical to older sockets, so that most CPU coolers for socket AM4 can also be mounted on the mainboard. The Gigabyte B650M K offers good overclocking potential. The high-quality voltage converters with 8+2 virtual phases convince with a stable power supply for the CPU to guarantee high clock rates even over a longer period of time.
Processor family | Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Clear CMOS Button |
Item number | 32824794 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B650M K |
Release date | 29/3/2023 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3 7th Gen, Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

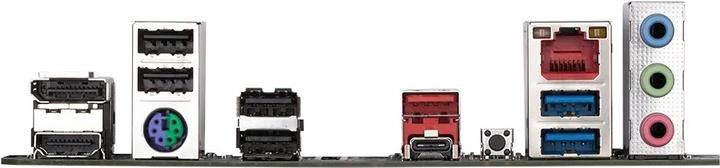

Video connections | DisplayPort (2x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x) |
PCI express version (max.) | 4 |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 55 mm |
Weight | 820 g |
Length | 29.50 cm |
Width | 27.50 cm |
Height | 5.90 cm |
Weight | 954 g |
