Product details

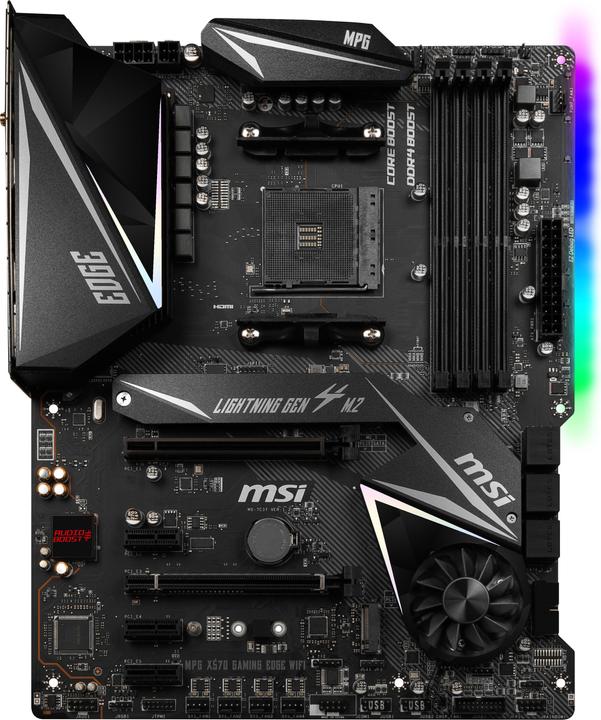

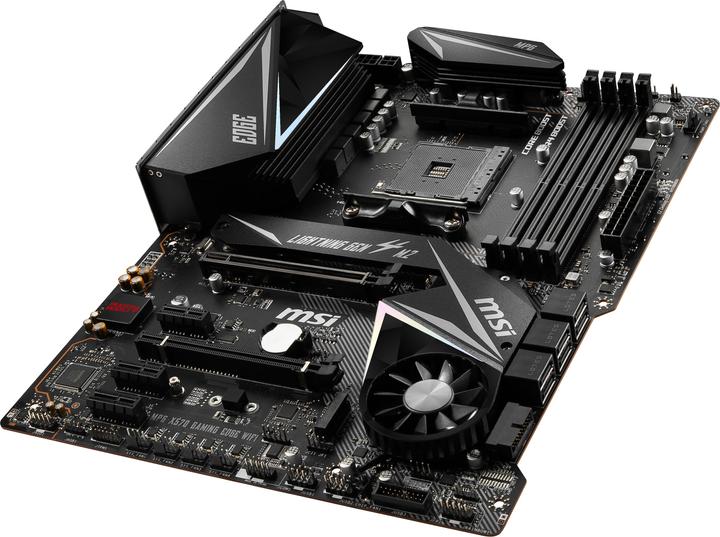

The MSI MPG X570 Gaming Edge WIFI is based on the AMD X570 chipset and supports AMD processors for the AM4 socket. It features four DDR4 slots for up to 128 GB of RAM. Additional specifications include two PCIe 4.0 x16 slots and three PCIe 4.0 x1 slots. The MSI MPG X570 Gaming Edge WIFI also offers 8-channel audio, a Gigabit LAN interface, six SATA3 ports, two M.2 slots, Wi-Fi 5, Bluetooth 4.2, and a variety of USB interfaces.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, RGB header, Serial header, Trusted Platform Module |
Item number | 11166838 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7C37-001R |
Release date | 7/6/2019 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, RGB header, Serial header, Trusted Platform Module |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2400, DDR4-2666, DDR4-3000, DDR4-3200 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Rainbow Extension Cable |
Length | 305 mm |
Width | 243 mm |
Height | 243 mm |
Length | 34.50 cm |
Width | 27 cm |
Height | 9 cm |
Weight | 1.94 kg |
