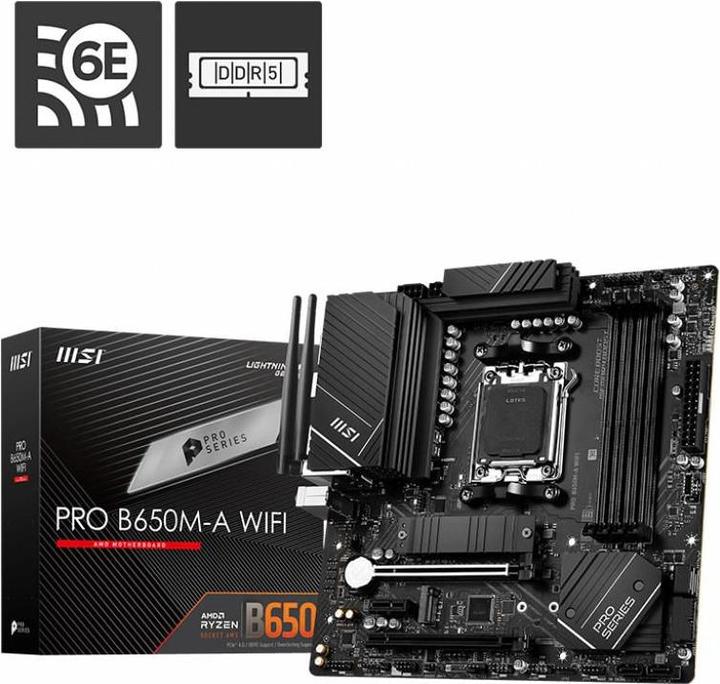

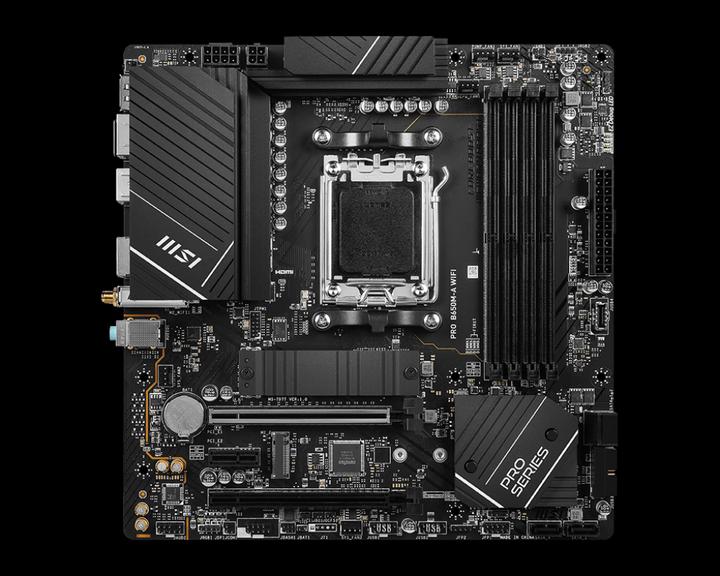

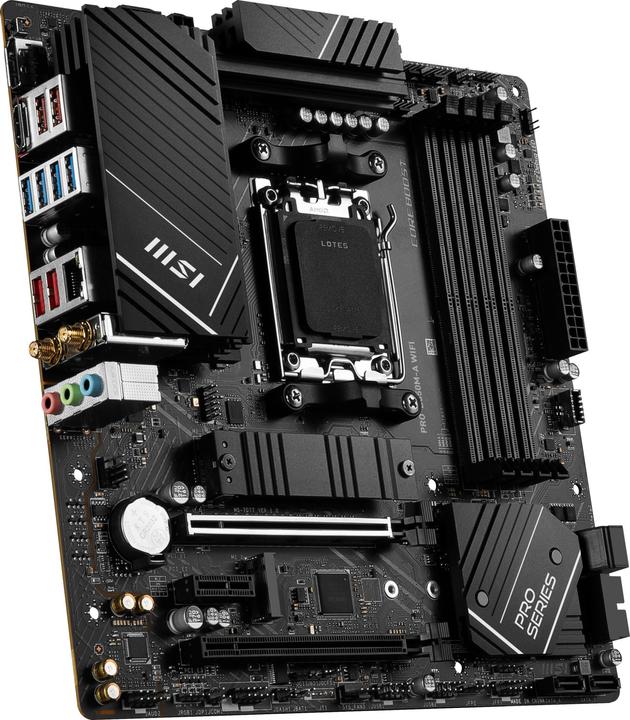

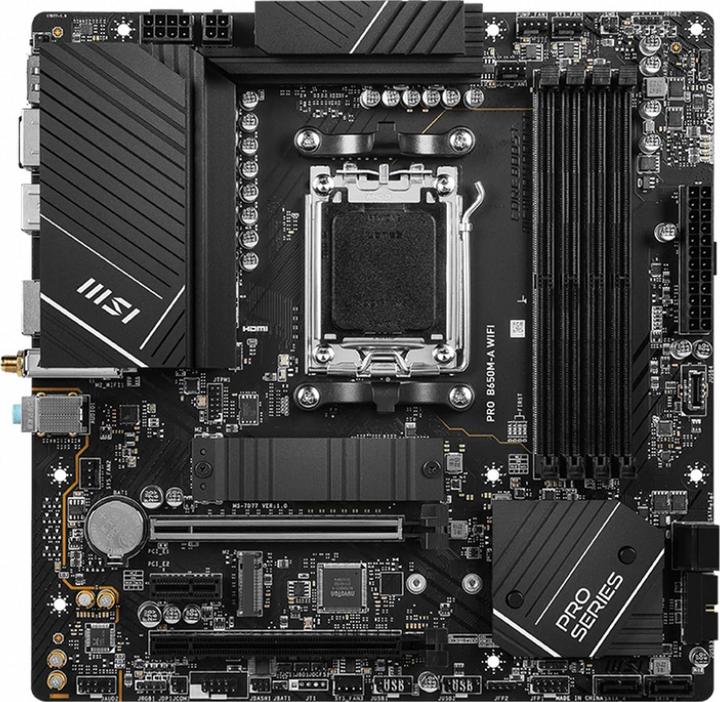

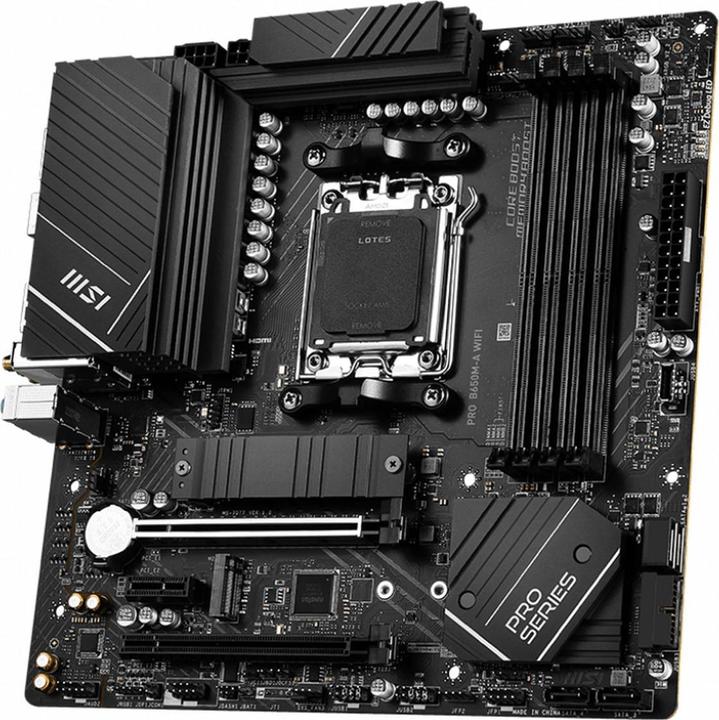

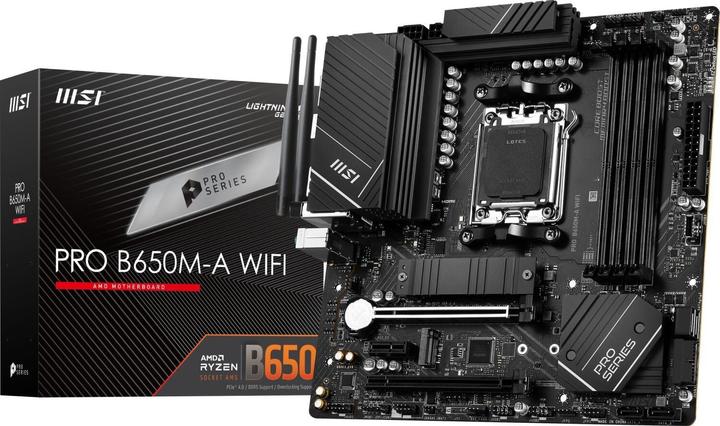

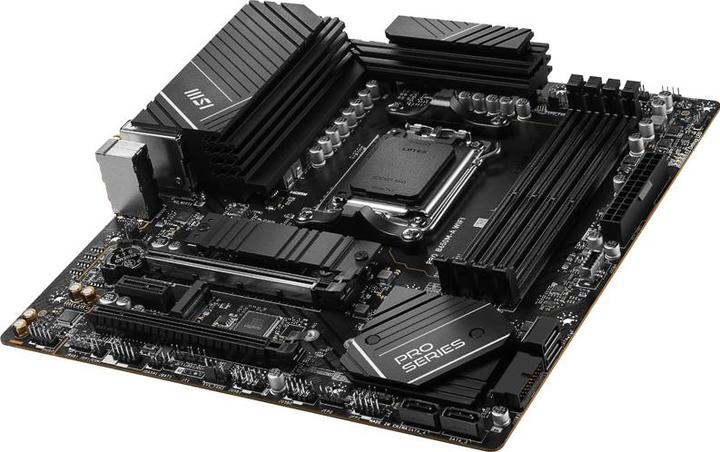

MSI Pro B650M-A WIFI
AM5, AMD B650, mATX1 item ordered
Product details
The PRO series is aimed at professional users from all walks of life. The product line is characterized by impressive performance and high quality, while also striving to provide users with an incredible experience. Users who value productivity and efficiency can rely on the MSI PRO series to achieve multitasking and enhance efficiency. The extended heatsink increases the surface area for heat dissipation and maintains performance even under heavy load. The reinforced M.2 thermal solution helps keep the M.2 SSD secure and ensures incredible performance. MSI PCI Express Steel Armor slots are secured with additional solder points on the motherboard, allowing them to withstand the weight of heavy graphics cards. When every advantage in gaming counts, Steel Armor shields the contact point from electromagnetic interference.
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 22670814 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D77-001R |
Release date | 13/9/2022 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

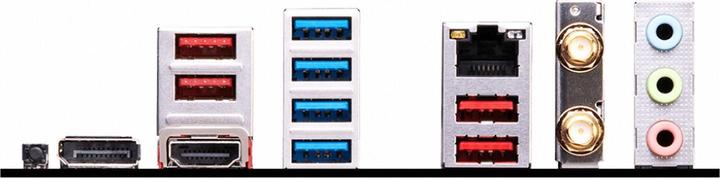

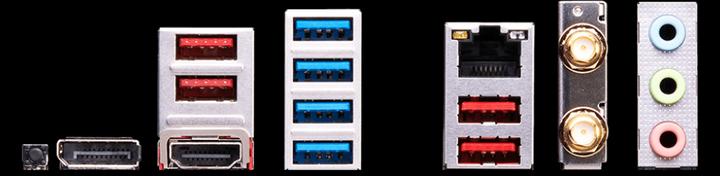

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | DisplayPort 2.1, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125-BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphones |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (3x) |
PCI express version (max.) | 16 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (4x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x Serial ATA cable |
Length | 243.80 mm |
Width | 243.80 mm |
Height | 270 mm |
Weight | 1500 g |
Length | 29 cm |
Width | 28 cm |
Height | 8 cm |
Weight | 1.46 kg |
