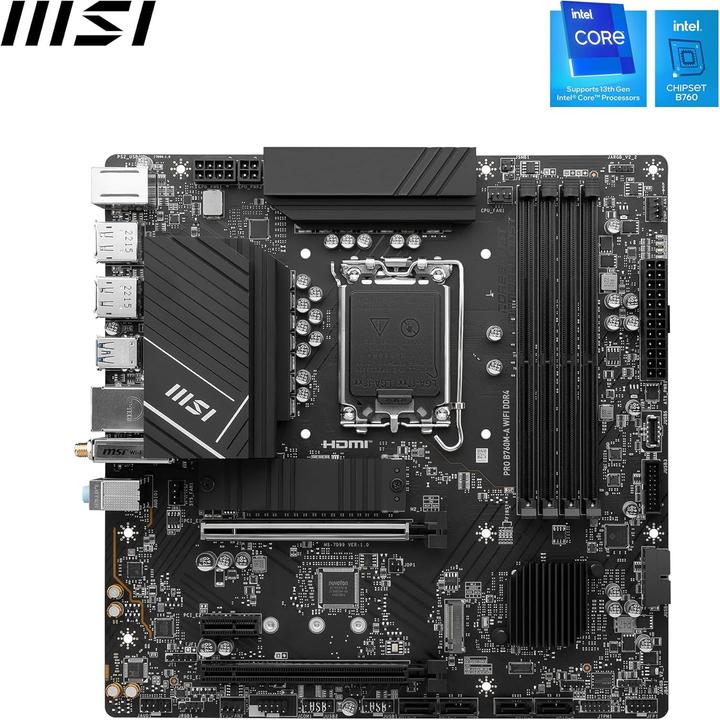

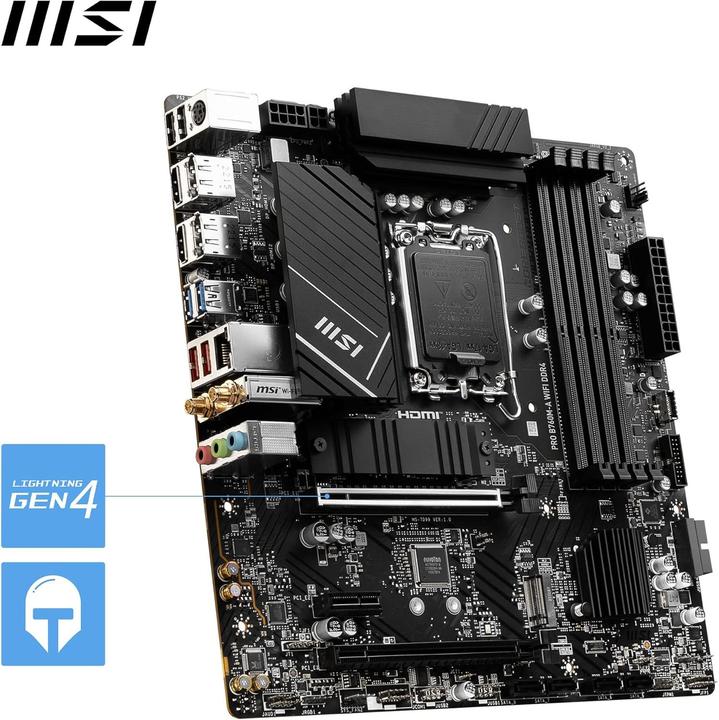

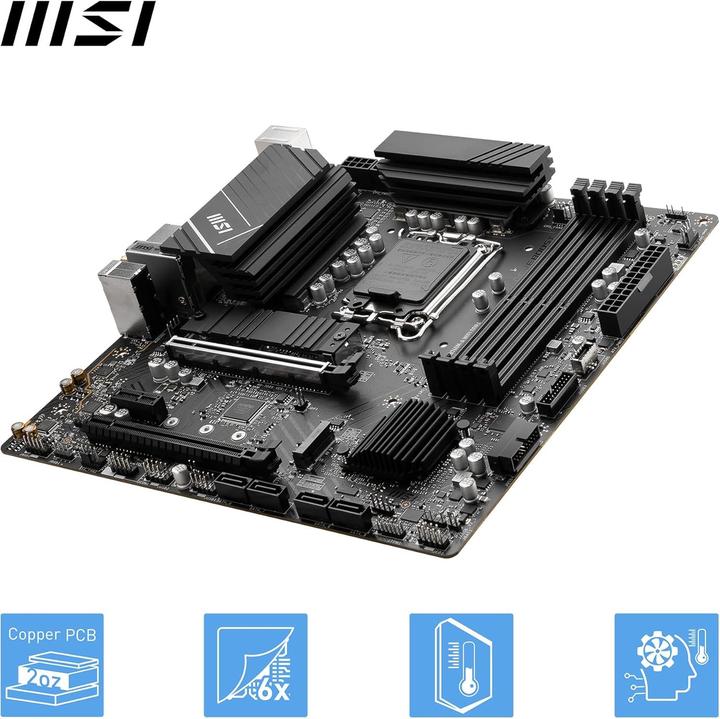

The MSI PRO B760M-A WIFI DDR4 motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket of the 13th and 12th generation. It features four DDR4 DIMM slots operating in dual-channel mode for up to 128 GB of RAM.
Mainboard features | Front panel audio connector, RGB header |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Celeron, Pentium Gold |
Number of memory modules (RAM) | 4x |
Memory type | DDR4-RAM |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Item number | 23621353 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D99-001R |
Release date | 12/12/2022 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x) |
Power connectors | 8-pin ATX 12V |
Manufacturer commitment | SBTi |
Length | 243.84 mm |
Width | 243.84 mm |
Height | 29.70 mm |
Product Safety |
Length | 30 cm |
Width | 27 cm |
Height | 5.50 cm |
Weight | 1.27 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
... USB-C is only available on the MSI board as an internal socket for front panel connections with only 5 Gbit/s, which limits the throughput to 460 MByte/s. The two 19-pin connectors for a total of four USB 3 ports share a 5 Gbit/s port to the B760 chipset. This can reduce the throughput with several USB devices on the front ports...
