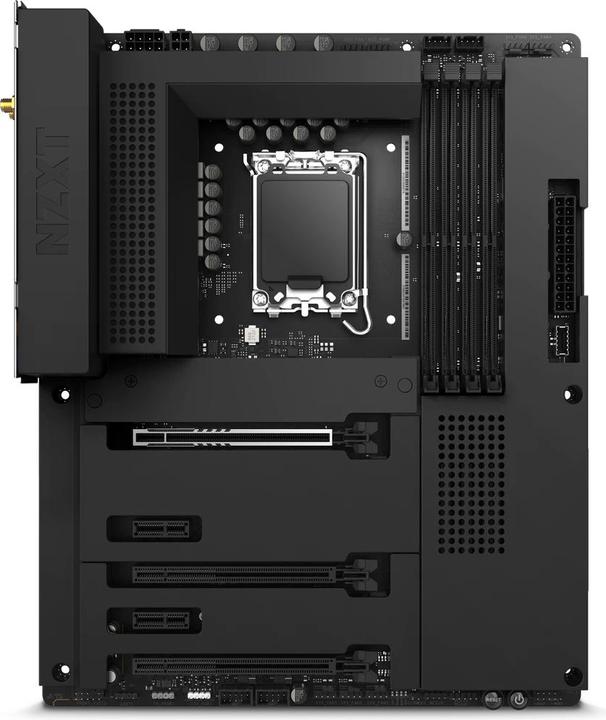

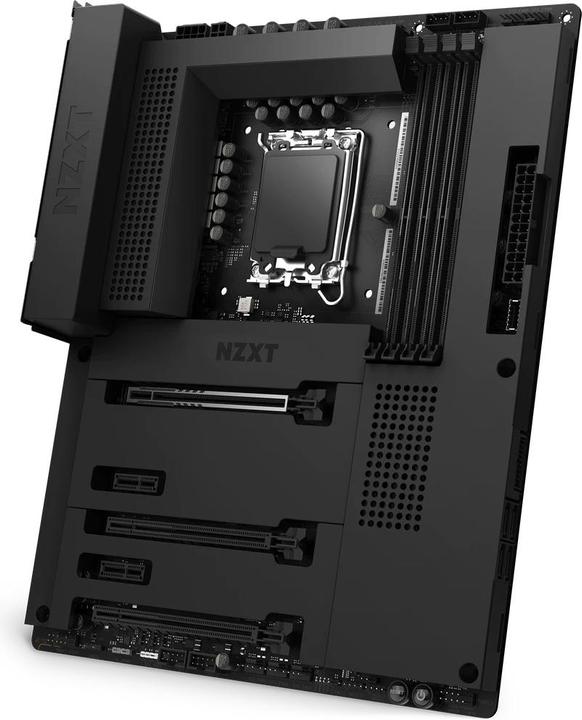

NZXT N7 Z690
LGA 1700, Intel Z690 (DDR4), ATXProduct details
The NZXT N7 Z690 is a powerful motherboard designed for the latest Intel processors of the LGA 1700 socket series. It supports a variety of Intel® Core™ processors, including i3, i5, i7, and i9, and offers a maximum RAM capacity of 128 GB with DDR4 SDRAM. The motherboard is equipped with modern interfaces, including M.2, NVMe, and PCI Express 4.0, to ensure high data transfer rates and flexibility for storage expansion. With a maximum resolution of 4096 x 2160 pixels, the N7 Z690 is also suitable for graphics-intensive applications. The ATX form factor design allows for easy integration into various cases and ensures optimal cooling and placement of components. Additionally, the motherboard offers numerous connectivity options, including USB Type-A and Type-C, as well as wireless transmission options like Wi-Fi and Bluetooth.
- Supports up to 128 GB DDR4 RAM with four DIMM slots
- Integrated support for RAID levels 0, 1, 5, and 10
- Equipped with an HDMI port for video output
- Provides advanced networking features with RJ45 port and 2.5 Gbit/s speed
- Includes RGB header for customizable lighting effects.
Processor family | Core i5 13th Gen, Core i9 13th Gen |
Memory type | DDR4-RAM |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header |
Internal connection options | S-ATA III (4x) |
Number of memory modules (RAM) | 4 x |
Item number | 23317518 |
Manufacturer | NZXT |
Category | Motherboards |
Manufacturer no. | N7-Z69XT-B1 |
Release date | 7/6/2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR4) |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i5 13th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125B |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 5.1 channels |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 6 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2x M.2 screws, Sata Cables, User manual, WiFi antennas |
Length | 104 mm |
Height | 104 mm |
Weight | 1350 g |
Product Safety |
Length | 38.30 cm |
Width | 32.10 cm |
Height | 10 cm |
Weight | 2.29 kg |
