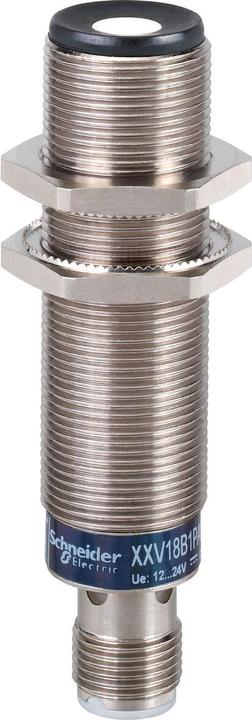

TE Sensors Ultrasonic Sensor XXV18B1PAM12

Manufacturer: TE Sensors
Designation: Ultrasonic Sensor
Type: XXV18B1PAM12
Analog Output Type: Other
Electrical Connection Type: M12 Connector
Switch Output Type: PNP
Switching Function Type: Normally Open (NO)
Blind Zone: 3 mm
Sensor Width: 18 mm
Sensor Height: 18 mm
Sensor Length: 75 mm
Sensor Diameter: 18 mm
Adjustable Distance: 0 mm
Adjustment Method: Other
Measuring Range Length: 3..50 mm
Protection Class (IP): IP67
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: Other
Housing Design: Cylinder, Threaded
Interface Standard: Other
No-Load Current: 15 mA
Relative Linear Deviation: 0 %
Max. Output Current: 200 mA
Ambient Temperature: 0..60 °C
Supply Voltage: 12..24 V
Relative Repeatability: 1.5 %
Switching Frequency: 80 Hz
Voltage Type: DC
Synchronization Possible: No
Material of the Sensor's Active Surface: Plastic
Material of the Housing: Brass
Material of the Cable Sheath: Other

TE Sensors Ultrasonic Sensor XXV18B1PAM12: Additional Details
OsiSense XX - new, easy-to-handle basic version. M18 ultrasonic sensor, metal. Dimensions M18 x 71 mm, connection M12 plug, output NO, function PNP, switching distance 0.05 m, protection class IP 67. Robust metal design, fixed switching distance of 50 mm. The ultrasonic detection is based on a time measurement between the transmission moment of a sound wave (pressure wave) and the reception moment of its echo (reflected sound wave). Ultrasonic sensors thus enable contactless detection of any objects, regardless of material (metal, plastic, wood, cardboard), color, state of matter (solid, liquid, powder), and transparency. The absence of moving parts ensures a long lifespan of the devices.
