Luminaire type
Compact LED downlight with round construction.

Applications
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants, and living spaces.

Mounting methods

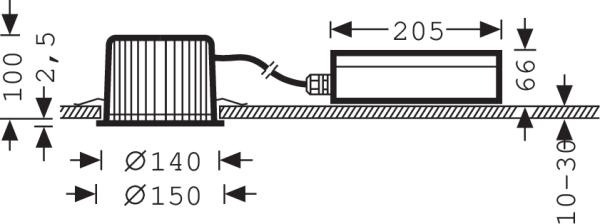

Recessed downlight for cut-out ceiling openings. Installation in cast concrete ceilings via accessories. Tool-free ceiling installation via rapid-mounting springs. Optically and technically matched refurbishment plates for ceiling apertures with larger ceiling cut-out dimensions are available as accessories in various versions. Cut-out opening Ø 140 mm, recess depth 100 mm. IP 54 protection rating all round in combination with closed decorative cover.

Optical system
Aluminium reflector highly specular anodised.

LED system
Configured with one LED spot module. Luminaire luminous flux 1800 lm, connected load 16.00 W, luminous efficiency of luminaire 112 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, colour locus tolerance (initial MacAdam) ≤ 3 SDCM, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h.

Luminaire body
Luminaire body of die-cast aluminium. Surface coated white (RAL 9016). External dimensions of ceiling ring Ø 150 mm, luminaire height 103 mm. Luminaire body and heat sink form a compact unit. Permissible ambient temperature (ta): -20 °C - +25 °C.

Electrical version
With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386) with 5-pole terminal to 2.5 mm² for mains connection and further wiring. Digitally dimmable (DALI). The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
