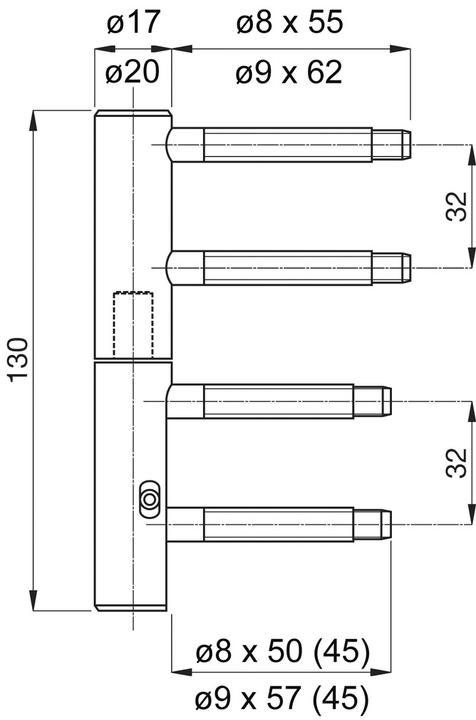

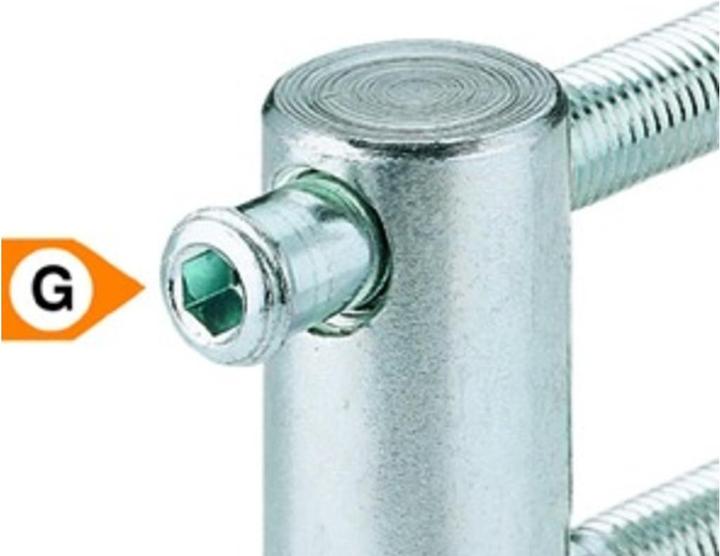

3-dimensional adjustable, version G. The stepless height adjustment allows the band to be completely raised or lowered without changing the distance between the upper and lower parts. This ensures that the good running properties in the area of storage are fully maintained in every position. With self-lubricating solid sliding bearing bush = SM bearing, easy to assemble, maintenance-free, fastening with 2 threaded pins each in the frame and wing part. Height adjustment +17 mm 2.5 mm / -2 mm. Height adjustment +20 mm 3 mm / -2 mm. Pressure adjustment 4 mm. Side adjustment 4 mm.

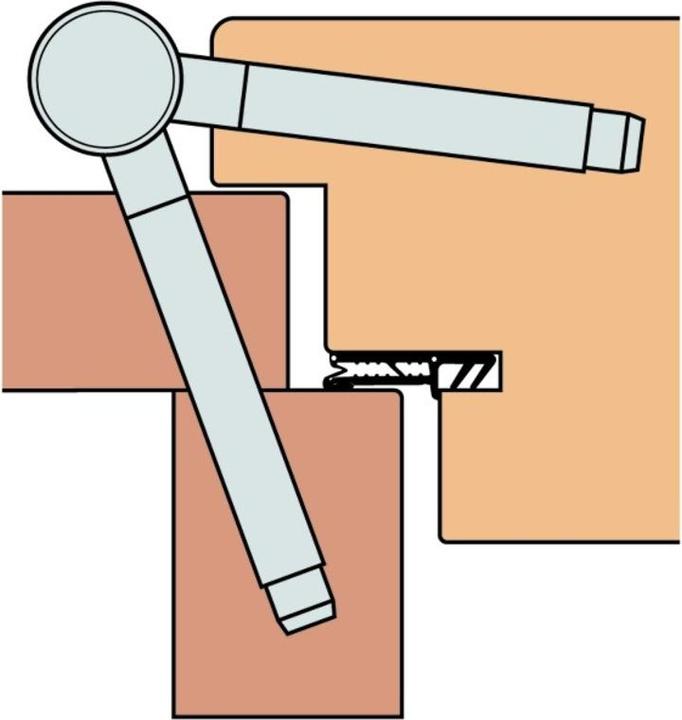

For front doors, with object hinge qualities. Minimum stop of 20 mm. Leaf weight with 2 hinges max. 120 kg. Leaf weight with 3 hinges max. 150 kg.

64.190.03 = Version with anti-twist protection, for outward-opening doors.
