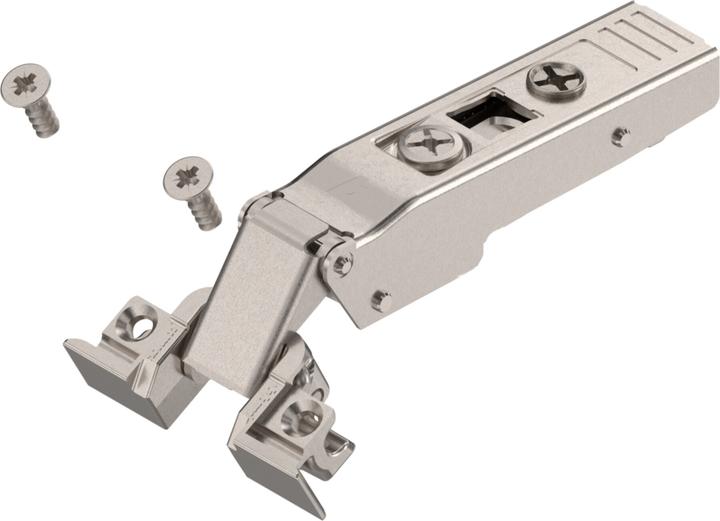

The Blum cup hinge is a high-quality furniture hinge specifically designed for narrow aluminum frame doors. It provides a reliable and durable solution for connecting doors and frames. This model is not equipped with BLUMOTION and allows for easy installation using screws. The hinge's construction ensures precise adjustment, with side adjustment of +/- 2 mm and depth adjustment of +3/-2 mm. The cup hinge is suitable for corner stops and offers an opening angle of up to 120 degrees, allowing for flexible use of the doors. The use of die-cast material ensures stability and longevity, while the nickel-plated surface offers an appealing appearance.

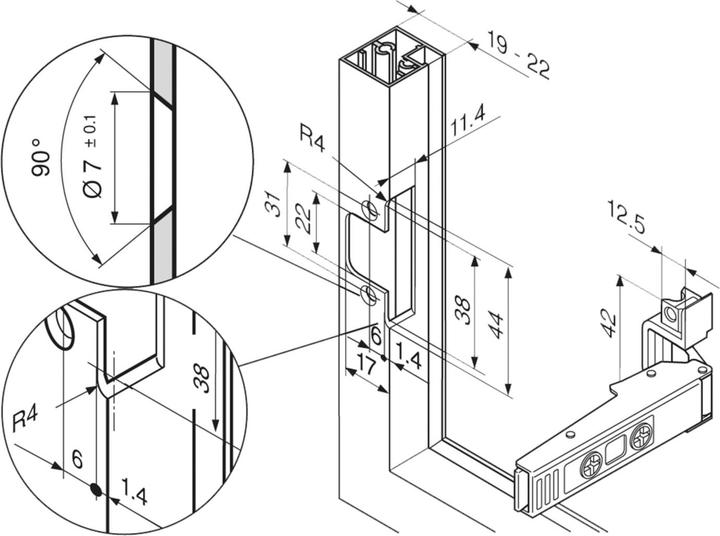

• Suitable for narrow aluminum frame doors
• Corner stop and folding flap connection
• Side adjustment of +/- 2 mm
• Depth adjustment of +3/-2 mm
• Opening angle of 120 degrees.
