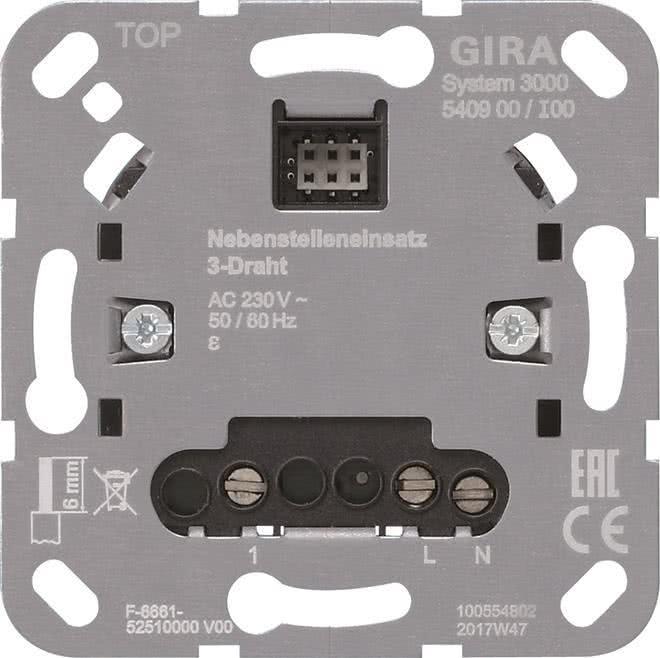

Gira substation module 540900

Manufacturer: Gira
Designation: Substation module 3-wire
Type: 540900
Composition: Base element
Operation type: Push button
App control via Bluetooth: No
Phase cut dimming: Yes
Phase angle dimming: Yes
Series dimmer: No
Load type: Universal and LED retrofit
Substation input: No
Light value memory: Yes
Usable with push button: No
Usable with motion sensor: No
Usable with presence detector: No
Usable with timer/switch: No
Usable with wireless button: No
Usable with IR button: No
Installation type: Flush mount
Mounting type: Claw/screw mounting
Material: Other
Material quality: Other
Halogen-free: No
Surface protection: Other
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 230 V
Frequency: 50-60 Hz
Nominal power resistive load: 20 W
Nominal power inductive load: 20 VA
Nominal power capacitive load: 3 VA
Max. switching power LED: 120 W
Connection type: Screw terminal
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Gira substation module 540900: Additional details
System 3000 substation module 3-wire - Substation operation of modules with substation input from System 3000. - Operation with suitable control attachment from System 3000. - Operation with neutral conductor connection.
Combination with RF control attachment single/double for KNX: - Sensor channel single/double. - Wireless control of other devices for KNX as a sensor possible. - Temperature measurement. - The 3-wire substation acts as a power supply for the RF control attachment single/double for KNX. Can function as a mains-powered transmitter in conjunction with KNX RF control attachments and eNet control attachments.
EAN: 4010337048329.
