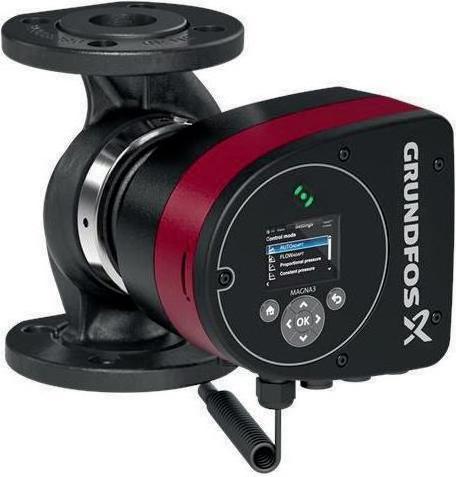

Grundfos Electronically controlled circulation pump MAGNA3 32-100 F 220 mm DN 32 97924637

Price in EUR including VAT
Ratings
BrandMore from Grundfos
Delivered between Sat, 20/6 and Thu, 25/6
Only 2 pieces in stock at supplier
free shipping

Maximum flow rate17

Product details

Electrically controlled single pump made of cast iron.

Other technical features:

  • Pump circuit: other
  • Insulation class according to IEC: F
  • Pump height: 185 mm
  • Max. medium temperature (continuous operation): 110 °C
  • Installation length: 220 mm
  • Type of speed control: infinitely variable
  • Delivery head at nominal volume flow: 66.44 m
  • Min. medium temperature (continuous operation): -10 °C
  • Communication bus: possible with accessories
  • Energy efficiency index (EEI): 0.18
  • Oval flange shape: no
  • Nominal volume flow: 5.65 m³/h
  • Pressure stage item: PN 10
  • Electrical connection: other
  • Speed control motor: built-in
  • Frequency: 50/60 Hz
  • Double pump: no
  • Material impeller/pump wheel: plastic
  • Absorbed motor power (P1): 171 kW
  • Speed: 4530 1/min
  • Rated current: 1.47 A
  • Nominal diameter: DN 32.

Key specifications

Maximum flow rate
10.50 l/min
Max. Delivery pressure
10 bar
Power
9 W

General information

Item number
24946498
Manufacturer
Grundfos
Category
Water pumps
Manufacturer No.
97924637
Release date
23/9/2022

Colour

Colour
Green
Exact colour description
Green

Water Pump Features

Maximum flow rate
10.50 l/min
Max. Delivery pressure
10 bar
Protection type (IP code)
IP44

Power supply

Power supply
Electrical connection

Power

Power
9 W
