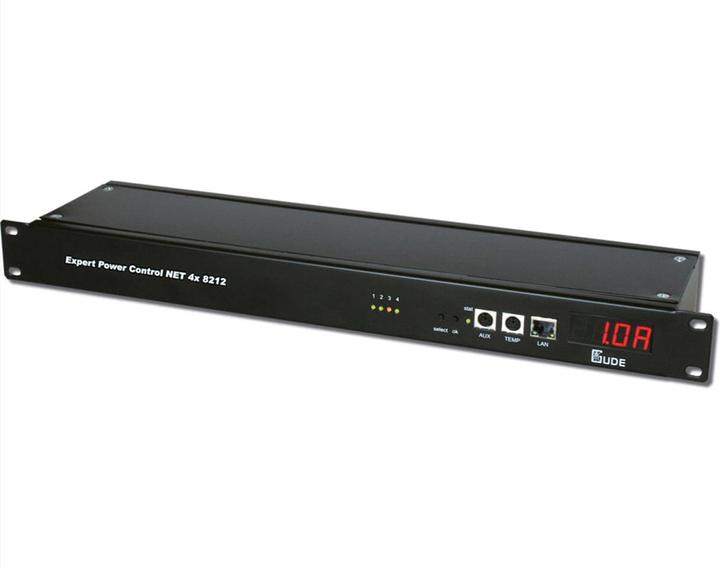

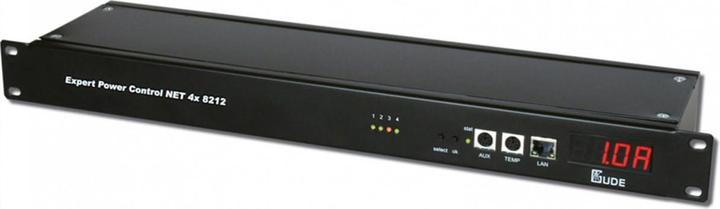

The Remote Power Switch Expert Power Control NET 4x Rev.3 allows for the switching on and off of electrical devices via a TCP/IP network and a serial connection. To set it up, simply connect the Expert Power Control NET 4x Rev.3 to the power supply and the desired network.

Once the Expert Power Control NET 4x Rev.3 has been assigned a free IP address, each of the four power ports (max. 10 A) can be controlled from any computer on the same network using a web browser. The Expert Power Control NET 4x Rev.3 supports SNMP and Syslog. Additionally, access to the device can be restricted through IP Access Control (IP-ACL) and an HTTP password.

Load cable connection at the back. Power ports can be switched via web interface/SNMP or using buttons on the device. Protocols: HTTP, DHCP, SNMP (v1, v2c, traps), Syslog. Network 10 Mbit / 100 Mbit. 4-channel watchdog ICMP or TCP, adjustable pings. Power measurement (current / peak over time) and display.

For 2 sensors (current temperature and temperature/humidity). Serial interface via optional cable. Power-on delay, restoration of switching state after power failure, reset function. Display for power, sensor values, IP address. 1 x mains power connection (IEC-60320 C20 plug, max. 16 A), 4 x load power connections (IEC-60320 C13 socket, max. 10 A). Low power consumption.
