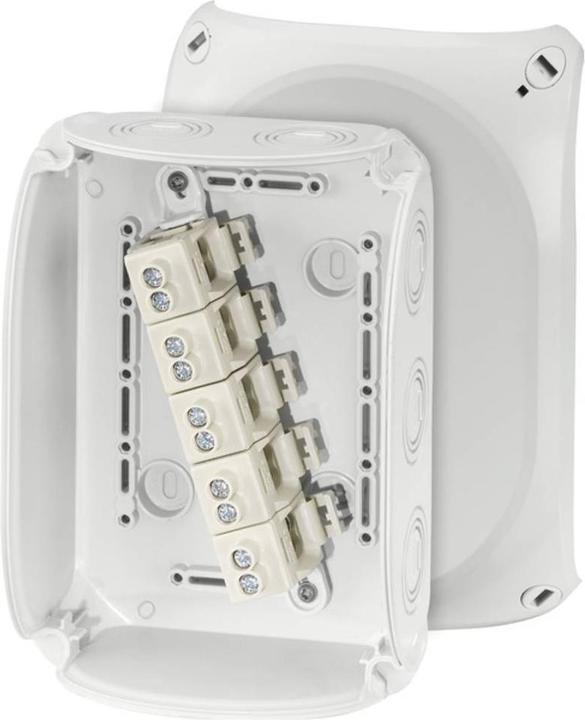

Hensel cable junction box KF 1010 G

Manufacturer: Hensel
Designation: Cable junction box 2.5-10 5pol
Type: KF 1010 G
Max. conductor cross-section: 16 mm²
Equipment: Terminal
Shape: Rectangular
Mounting type: Wall/ceiling mounting
For pipe diameter: Other
Entry from rear: Yes
Length: 180 mm
Width: 130 mm
Depth: 77 mm
Bayable: No
Number of entries: 10
Type of housing feed-through: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP66/IP67
Cover design: Other
Cover fixing: Screwed
Pourable: No
Supplied with potting compound: No
Sealable: Yes
Rated insulation voltage Ui: 690 V
Functional integrity: Without
With shielding: No
Weatherproof: Yes
Operating temperature: -25 to 70 °C
Explosion-proof version: No
For Ex zone gas: Without
For Ex zone dust: Without

Further details:
Cable junction box made of high-quality thermoplastic for unprotected installation outdoors or surface-mounted applications in buildings. Resistant to weathering such as UV exposure due to sunlight, protected against rainwater, temperature resistant, and impact resistant. Cover fastening via quick-release fasteners. With external lugs for fastening. Seawater resistant, for offshore applications. With approval for installation on ships. Terminal with 2 clamping points per pole up to 10 mm², 5-pole. Cable entry via metric knockouts in housing walls and base. Add-on cable glands in accessories. With cover retaining strap. EAN: 4012591121893.
