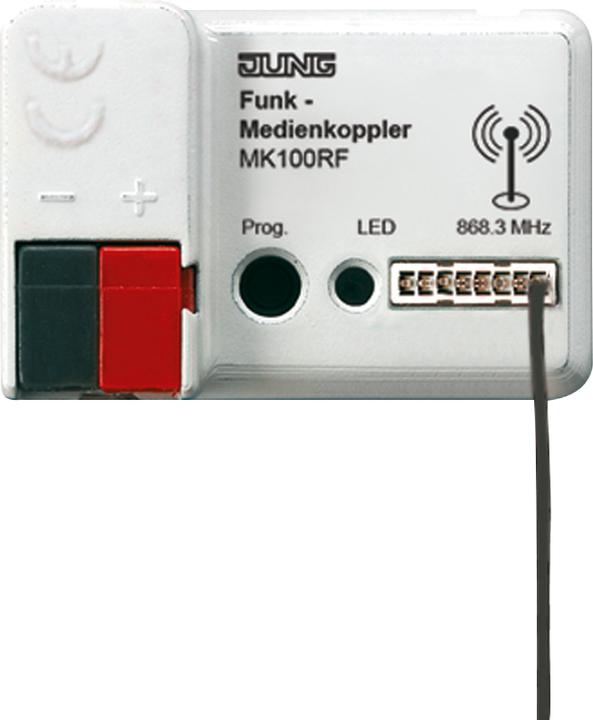

Project planning and commissioning with ETS5 or newer. Intended use: Connecting KNX radio networks with wired KNX lines. Extending the radio range in KNX radio networks (repeater operation, external power supply 24 V DC, e.g., via power supply unit Art. No. NT 2415 REG VDC). Installation in a device box with dimensions according to DIN 49073 in combination with a suitable cover.

Product features: Used as a media coupler in the function of area or line coupler (depending on the physical address). Can be used as a KNX RF repeater. Filter settings and filter tables. From V01: KNX Data Secure compatible from ETS 5.7.3. From V02: Use as a segment coupler possible from ETS 6.0.5.

Influence on the forwarding of group telegrams (routing) through filter function in coupler operation. Support for the full address range (groups 0-31) with filter function. Forwarding of group telegrams (TP and RF, RF and TP) configurable. Forwarding of physically addressed telegrams (TP and RF, RF and TP) configurable. Forwarding of broadcast telegrams (TP and RF, RF and TP) configurable.

Telegram repetitions in case of transmission errors for group, broadcast, and physically addressed telegrams on the TP side adjustable. Telegram confirmation for group and physically addressed telegrams on the TP side configurable. Configuration lock adjustable (programming only via TP or RF). Status LED. Implementation and generation of RF system broadcast telegrams. Support for long frames. Safe-state mode to halt the application program (e.g., if the device does not function correctly due to faulty planning or commissioning). Function to reset to factory settings.
