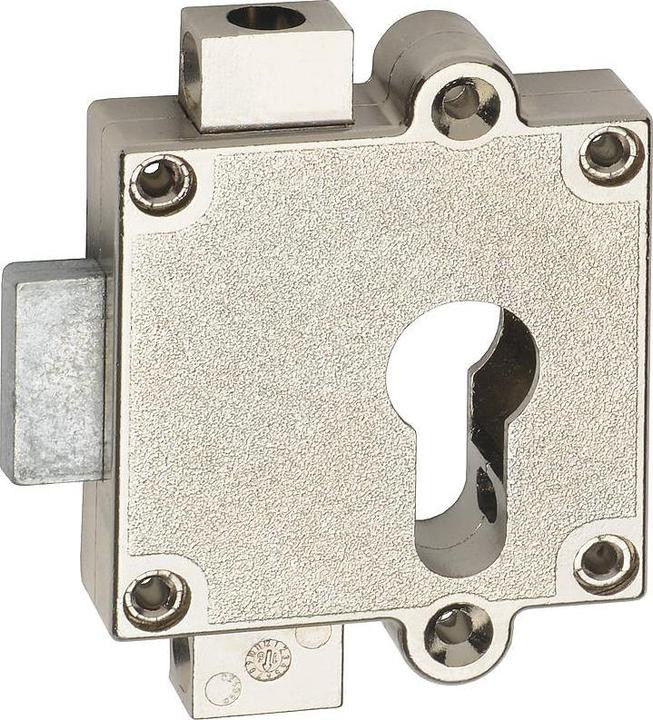

JuNie PZ horizontal push bar lock 7441.40

Furniture locks for profile cylinders - Extend the house locking system to the furniture in the building.

Product features:

• Article 7441.40002 horizontal push bar lock
• Push bar lock with side bolt
• Metal box
• Vertical rod lift
• Can be used right and left
• Cylinder fastening with screw
• Backset: 40 mm
• Cylinder axially adjustable
• With screw-on eyelets for key plates 7424/7425
• Surface: nickel-plated

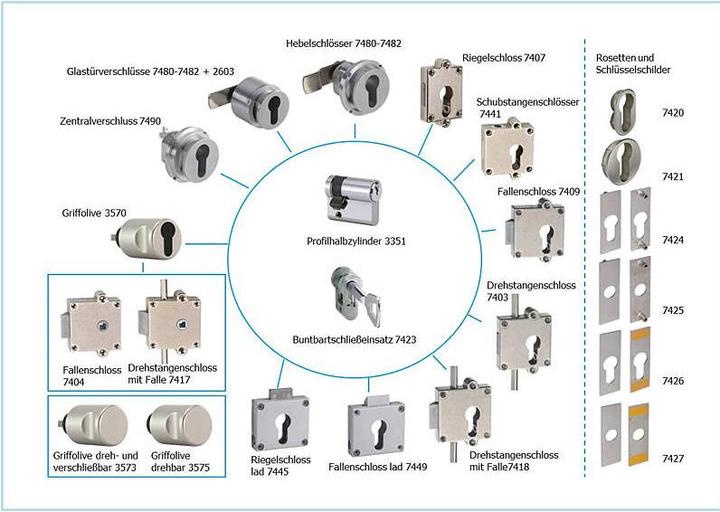

System features JuNie PZ:

• Integration of all commercially available profile and profile half cylinders, whether electronic or mechanical.
• Easy replacement of the cylinder without dismantling the locking set.
• Wide range of lock variants (deadbolt, latch, espagnolette lock with deadbolt or with latch function, which is independent of the espagnolette operation) with backset 40 mm or deadbolt locks also in 25 mm.
• Latch locks (½-turn with forced locking) and deadbolt locks 25 mm backset in cylinder position LAD, lever locks, gas door locks with threaded cover and centre locks for drawer systems.
• Cabinet olives rotatable with/without locking function or fixed.
• Key plates with round core hole opening or PZ perforation, for gluing or screwing on.
• Round or oval rosettes.
• Connection to traditional lock programme via 7 mm square.

Possible applications JuNie PZ "One key for everything," inside and outside:

• House and building entrances
• Interior doors
• Furniture, e.g. for use in wall units, mobile containers, display cabinets.
