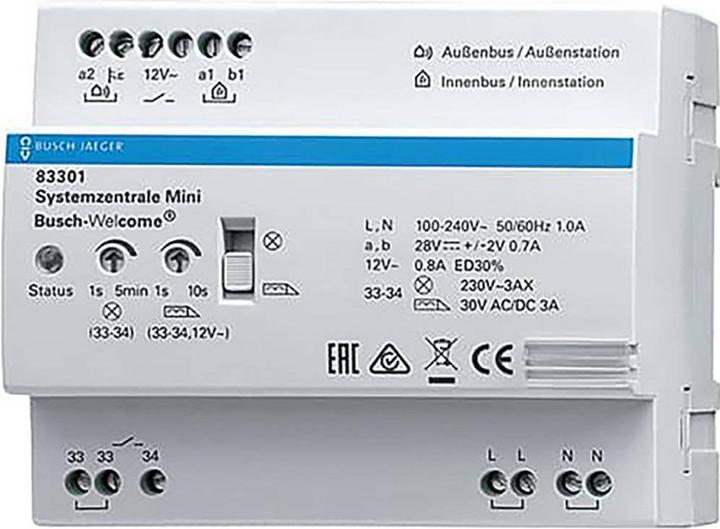

1. Busch-Jaeger System headquarters
Busch-Jaeger System Central REG 83301
Manufacturer: Busch-Jaeger
Designation: System Central REG
Type: 83301
Application: Video
Input Voltage: 230 V
Frequency: 50-60 Hz
Current Type: DC
Output Voltage: 28 V
Max. Output Current: 0.7 mA
Short Circuit Proof: yes
Protection Class (IP): IP20
Width in Division Units: 6
Height: 90 mm
Width: 106 mm
Depth: 65 mm
Installation Technology: 2-Wire
Integrated Door Opener Circuit: yes
Control Function: yes
Evaluation Function: yes
Service Indicators: yes
Mounting Type: DIN Rail
Programming Lock: no
With Contact: yes
Busch-Jaeger System Central REG 83301: additional details
Power supply and control unit of the Busch-Welcome® system. For connecting the indoor and outdoor bus. For connecting an electric door opener (12 V~, 0.8 A or potential-free output 30 V, 3 A). For switching lights or connecting a light relay (230 V, 3 A). Door opener or light switching duration adjustable. For up to 31 consumption units. Further information on commissioning and operation can be found in the manual for the Mini System Central. EAN: 4011395217313.

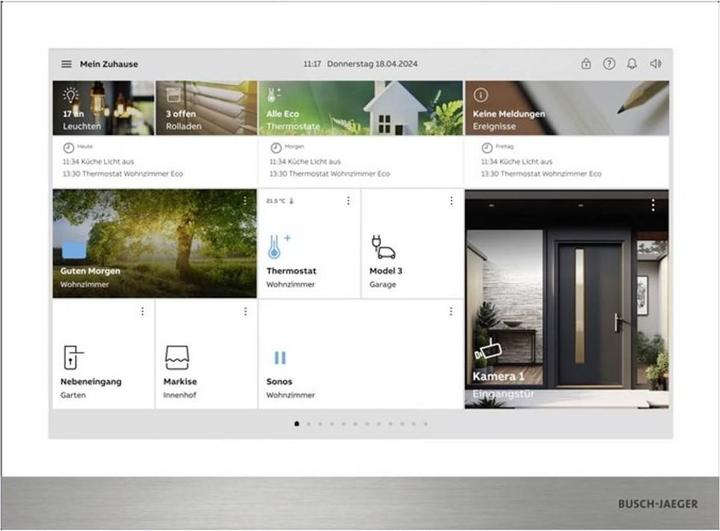

2. Busch-Jaeger Touch control H8237-5W-03 IP touch 10 LAN/LAN
Central control panel for Busch-Welcome® IP and optionally Busch-free@home® or Busch-Installationbus® KNX. For the central control of up to 100 configurable Busch-free@home® or Busch-Installationbus® KNX functions such as switching, dimming, shading, RTR, scenes, Philips HUE. Note: The KNX connection is made via KNXnetIP tunneling. A KNX IP router or KNX IP interface is required in the system. With integrated room temperature controller and temperature sensor. The room temperature sensor/room temperature control is currently only enabled for KNX applications. Displays the video image from the outdoor station. During a conversation, a picture of the visitor can be taken and stored in the image memory. When door calls occur in the absence of the resident, three pictures of the visitor are automatically stored in the image memory. Different ringtones for door and floor calls can be set, with five polyphonic ringtones available. Custom ringtones can be integrated via SD card. Volume of the ringtones is adjustable. SD card slot for expanding the image memory. Equipped with a hearing loop for coupling the audio signal into hearing aids. Capacitive HD display with glass surface (resolution: 1280x800). With hands-free function. Hands-free volume adjustable. Individual audio absence function. For flush mounting with 42361F-03. For integration into the myBUSCH-JAEGER portal. Allows the integration of a tablet or smartphone with the installed Welcome app as a mobile indoor station for audio and video communication. Power supply via Power-over-Ethernet (PoE) 802.3af. Alternative power supply via plug-in power supply 53011PS-03. WLAN (802.11a/b/g/n). For the ideal connection of the LAN cable, it is recommended to install an electronics box for surface mounting. Rated current: 600mA (24V DC).
Type: H8237-5W-03
Video indoor station IP touch 10 LAN / LAN with room temperature controller.

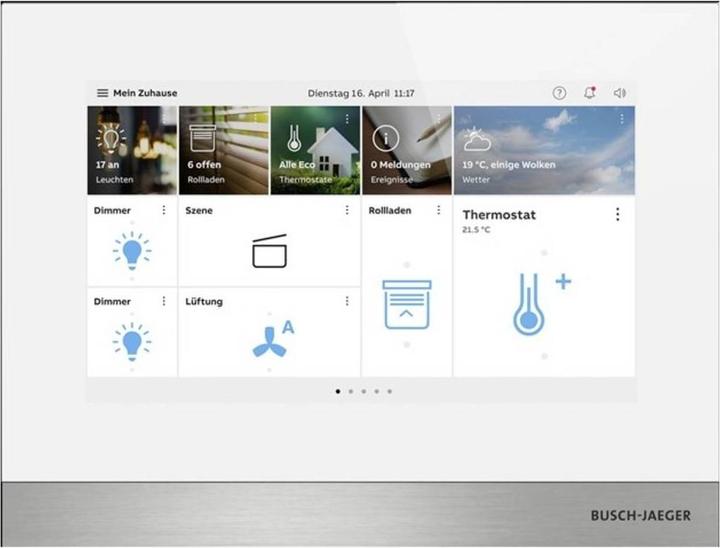

3. Busch-Jaeger BJ IP touch 7 LAN/WLAN H8236-4W-03
Central control panel for Busch-Welcome® IP and optionally Busch-free@home® or Busch-Installationbus® KNX. For the central control of up to 64 configurable Busch-free@home® or Busch-Installationbus® KNX functions such as switching, dimming, blinds, RTR, scenes, and Philips HUE. Note: The KNX connection is made via KNXnetIP tunneling. A KNX IP router or a KNX IP interface is required in the system. With integrated room temperature controller and temperature sensor. For the ideal connection of the LAN cable, it is recommended to install an electronics box for surface mounting. Display of the video image from the outdoor station. During the conversation, a picture of the visitor can be taken and stored in the image memory. When door calls occur in absence, three pictures of the visitor are automatically stored in the image memory. Equipped with an induction loop for coupling the audio signal into hearing aids. Different ringtones for door and floor calls can be set, with five polyphonic ringtones available. Custom ringtones can be integrated via SD card. Volume of the ringtones is adjustable. SD card slot for expanding the image memory. Capacitive display with glass surface (resolution: 1024 x 600). With hands-free function. Hands-free volume adjustable. Individual audio absence function. Suitable for surface or flush mounting (box not included). For flush mounting with 42361F-03 and for surface mounting with 42361S-x-03. For integration into the myBUSCH-JAEGER portal. Allows the integration of a tablet or smartphone with the installed Welcome app as a mobile internal unit for audio and video communication. Rated current: 280 mA (24 VDC). Power supply via Power-over-Ethernet (PoE) 802.3af or alternatively via plug-in power supply 53011PS-03. WLAN (802.11a/b/g/n).
