Best selling Residual-current devices from Busch-Jaeger

On this page you’ll find a ranking of the best Residual-current devices from Busch-Jaeger. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Busch-Jaeger Aeg Rcd

Residual current devices (RCDs) are used to detect and protect against fault currents. They provide fault protection, additional protection (personal protection), and protection against electrically ignited fires caused by fault currents to ground. The FN series of RCDs in the AEG portfolio are primarily used in residential and commercial applications. Combined with a comprehensive range of accessories, the portfolio offers everything you need for your installation tasks. RCD types A, AI, AS, B, and F. Rated currents from 25 A to 100 A and rated fault currents up to 500 mA (30, 300, 500 mA). Type A RCDs ensure protection against sinusoidal alternating currents and pulsating currents with a smooth direct fault current component of up to 6 mA to ground.

Residual-current device

EUR67,90

Busch-Jaeger Aeg Rcd

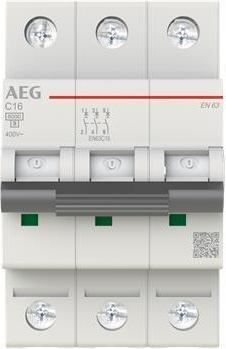

2. Busch-Jaeger AEG miniature circuit breaker

Circuit breakers protect and control circuits against overload and short circuits. The use of a circuit breaker ensures a reliable and safe electrical installation. The AEG Line circuit breakers EN60 6kA are safe and reliable: highest insulation class IP40, knob lock, sealable connections. User-friendly. Multifunctional: accessory mounting possible and can be cascaded. One device type for all main functions, remote triggers, undervoltage triggers, and auxiliary functions. QR code on the devices for further technical information. Easy to install: both pin and fork connections can be used, high tightening torque of 4.5 Nm, generously sized terminal connections for circuit breakers up to 35mm². Rated currents of up to 63A in B and C characteristics. EN63C16.

Residual-current device

EUR26,90

Busch-Jaeger AEG miniature circuit breaker

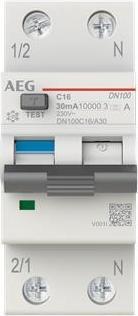

3. Busch-Jaeger AEG FI/LS switch

The LSFI switches from AEG installation devices provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. LSFI switches are commonly used in applications where protection against overcurrent, overload, and short circuits, as well as protection against fault currents, is necessary. The LSFI from the AEG Line of the DN100 series is available in a 1PN variant with characteristics of 30 mA. Rated values: 6 A, 10 A, 13 A, 16 A, 20 A, 25 A, 32 A, and 40 A. DN100C16A30.

Residual-current device

EUR75,26

Busch-Jaeger AEG FI/LS switch

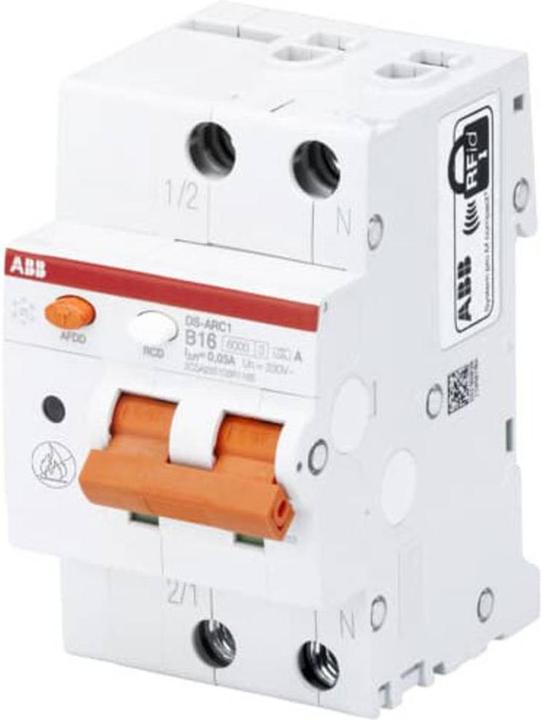

4. Busch-Jaeger Busch-Jäger AFDD+FI/LS DS-ARC1A-B16/0,03, 6kA, 3TE Fault arc protective device+FI/LS DS-ARC1

Arc Fault Detection Device (AFDD) with Residual Current Circuit Breaker with Overcurrent Protection (RCBO) according to IEC/EN 62606 (VDE 0665-10) and IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21) provides protection against series and parallel arc faults, overcurrent protection (overload or short circuit), protection against sinusoidal alternating currents and pulsating currents with smooth residual direct current of up to 6 mA to earth. It also offers fault protection (protection against indirect contact) and additional protection (with I?n = 30 mA). Protection against overvoltage (only for internal AFDD) and protection against electrically ignited fires according to DIN VDE 0100-420.

Mandatory application areas according to DIN VDE 0100-420 include single-phase alternating current systems with In = 16 A in sleeping or living areas of homes and day care facilities for children, disabled or elderly individuals, or in barrier-free apartments, as well as in rooms or locations with fire risk (with special fire hazards, fire-prone workplaces), predominantly/mainly made of combustible materials. Threat to irreplaceable goods - cultural assets of particularly high value and in single-phase final circuits that supply electrical devices in the mentioned areas or traverse these areas. The use of AFDDs is recommended in rooms with sleeping facilities, rooms or locations with fire-spreading structures, and final circuits with high connection power.

In general, the AFDD is also recommended to enhance fire protection against electrically ignited fires. LED indicator to identify the cause of tripping. Supply from above or below is flexible, cross-wiring to residual current circuit breakers in the rear terminal area is possible. System accessories can be mounted on pro M compact®. Rated breaking capacity according to IEC/EN 61009 Icn=6kA. AFDD+RCBO DS-ARC1 is 1-pole protected (LS), 2-pole switching.

Residual-current device

EUR197,83

Busch-Jaeger Busch-Jäger AFDD+FI/LS DS-ARC1A-B16/0,03, 6kA, 3TE Fault arc protective device+FI/LS DS-ARC1

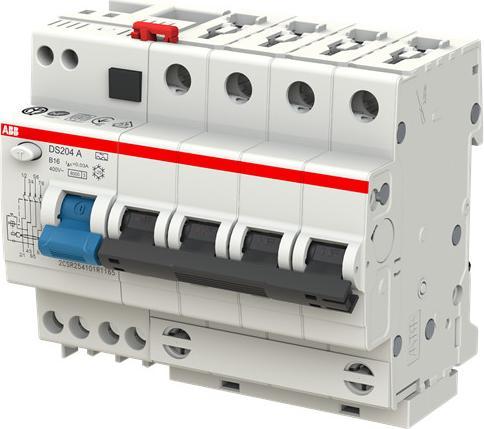

5. Busch-Jaeger Busch-Jäger DS204A-B16/0,03 FI/LS combination 6kA,4P,type A,B 16A,30mA DS204 A-B16/0,03

ABB Stotz S&J RCD/MCB Switch DS204A-B16/0.03

Manufacturer: ABB Stotz S&J
Designation: RCD/MCB Switch
Type: DS204A-B16/0.03
Rated Current: 16 A
Rated Residual Current: 30 mA
Number of Protected Poles: 4
Switching Neutral Conductor: No
Tripping Characteristic: B
Breaking Capacity: 6 kA
Number of RCD/MCB Combinations: 1
Wiring on Terminal Block: No
Height: 93 mm
Width: 105 mm
Depth: 69 mm

Further Details: RCD/MCB combinations (RCBOs) provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection for 1P+N, 2P, 3P+N, or 4P circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA to earth. They also provide fault protection (protection against indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with the product standard IEC/EN 61009-1 (VDE 0664-20).

Areas of application include household, commercial, and industrial applications. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the DS200 suitable for worldwide use. Rated breaking capacity Icn = 6,000 A according to IEC/EN 61009-1 (VDE 0664-20) for RCDs (Residual Current Devices) in residential construction and similar applications, Icu = 10 kA according to IEC/EN 60947-2 (VDE 0660-101) for MCBs (MCB) in industrial applications. RCBO DS200 Type A is 2-/4-pole protected (MCB), 2-/4-pole switching. EAN: 8012542859802.
